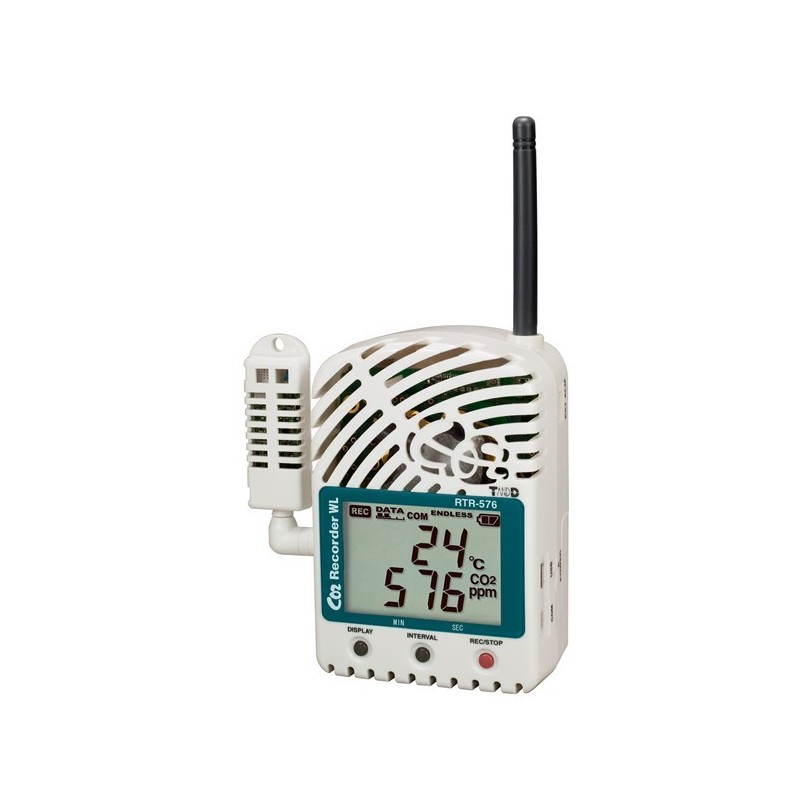

T&D CO2, temperature and humidity data logger - internal sensors

Wireless data logger for humidity, temperature and CO2 measurement
Additional purchase Data collector for retrieving measurement data.
Data collector can be connected to T&D Cloud or PC
Operating time on battery alone is 2 days.
Additional power supply: LOG-DC5V
Wireless transfer of data to Data Collector

LOG-WL576
3,896.00 DKK
Tax excluded
Quantity
Physically in stock

  • Download PDF
  • file_download Downloads
  • live_help Ask a question

Battery-powered data logger with display for temperature, humidity and CO2 meter.
Operating time on battery alone is 2 days.
Additional power supply: LOG-DC5V
LOG-WL576 can log temperature, humidity and CO2. Built-in display that alternately shows temperature/humidity and CO2 level.
LOG-WL576 has an output for external alarm, which can be set to activate at a predetermined level in the software.

Andet
Ekstern temperaturføler og fugtføler medfølger Digital udgang (slutte kontakt) der kan bruges til at aktivere f.eks. en alarm ved for højt CO2 niveau. Data kan hentes trådløst ved brug af LOG-WL5xx
Data
8.000 målinger
Dimensioner
96 x 66 x 40 mm
Driftstemperatur
0 – 45 °C
Forsyning
4 stk. AA batterier, eller via medfølgende ekstern strømforsyning på 6 Volt ca. 2 dages drift ved anvendelse af batterier, men afhænger af måleinterval og temperatur
Måleområde
Temperatur 0 – 55 °C Fugtighed 10 – 95 % CO2 0 - 9999 ppm
Nøjagtighed
Temperatur ±0.3°C. Fugtighed ±5% (ved 25 °C og 50%). CO2 ±50 ppm + 5% af udlæsningen ved under 5,000 ppm
Software
Windows XP, Win7/8 32/64 bit
