Panel screens / Panel monitors are TFT / LCD monitors in a very robust package, where the cabinet is often made of steel. Panel screens are designed to fit into an industrial enclosure so that only the front and front bezels are visible. Almost all panel displays have an IP65 close to the front and with the right rubber gasket between the front frame and box, the result can be an industrial monitor for food-producing companies. The front glass is preferably tempered glass that can withstand the demanding environment.
Some panel displays have touch screens. Here it is the most common type of resistive touch, as it can only be affected by weak pressure. There are several touch principles, ranging from IR raster to projected touch (eg touch through a shop window).

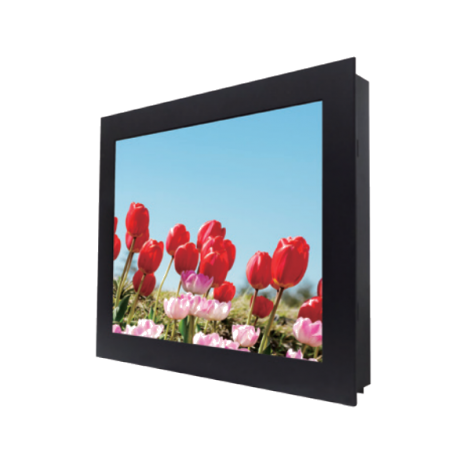

19 "industrial panel monitor
IP54 near the front, vandal proof glass
Touch: pcap
1280 x 1024
300 Nits
500: 1 to 5: 4 format, the OSD buttons on the front or rear
VESA mounting holes
I / O: VGA (15pin D-sub)
Output:
12VDC input: 100-240V
Dimensions: 460 x 392 x 64,5mm < br> Display Dimensions: 376 320 x 301.056mm
Weight: 6.8Kg
9.7" TFT LCD screen
Panel Mounting (can be supplied in OPEN FRAME version)
Resolution: 1024 x 768
1 x AV composite
1 x HDMI
1 x VGA
1 x DVI
4:3 screen
metal
Panel Mount 279.6×203.5×37.6mm, 279.6×195.5×36.1mm(open frame)
Weight: 1600g
-20℃~60℃
Power: 7~24VDC
Industrial 19" rack LCD monitor 18.9"
Standard 18.9" resolution 1440x900 (OPTION! 17.3" 1920x1080)
9U 18.9” LCD panel
Front tempered protective glass
High contrast ratio and wide viewing angle for high screen quality
3mm aluminum front cover
Front OSD button for direct display adjustment
Support SUN native resolution
Optional Touchscreen function
Optional DVI-D and HDMI inputs
Optional DC input power 24Vdc,
Optional 7.3” LCD panel contact sales department
12.1 "IP65 dense LCD display for panel mounting
800 x 600 - 4: 3
LED back light 1000nits
Transflective LCD display provides high brightness in the sun
VGA + composite (BNC / RCA) video input
12VDC power supply
Dimensions: 380 x 310 x 61mm (cut out: 327 x 263mm)
Weight: 3.5kg
15 "TFT 4: 3 LCD Resistive Touch
50,000 Hrs LED Backlight Lite
Resolution Up to 1024 x 768
1x VGA, 1X DVI-D, 1x DisplayPort
350 nits Brightness
Designed with aluminum Die-cast Front Frame
IP65 Compatible front panel
Option: Projected Capacitive Touch
9 ~ 48VDC Via 3-pin Terminal Block
Panel, Vesa Mount
19" TFT SXGA
5:4 LCD with PCAP Touch
50,000 HRS LED Backlight Life
1x VGA, 1X DVI-D, 1x DisplayPort
Resolution Up to 1280 x 1024 (SXGA)
Up to 1600 Nits Brightness
Designed with Aluminum Die-Cast Frame
IP65 Compatible Front Panel
Convertible Display System (CDS) Supported
9~48VDC via 3-pin Terminal Block
17 "TFT SXGA 5: 4 LCD Capacitive Touch
50,000 Hrs LED Backlight Lite
Resolution Up to 1280 x 1024 (SXGA)
1x VGA, 1X DVI-D, 1x DisplayPort
350 NITs Brightness
Aluminum Front
IP65 Compatible front panel
9 ~ 48VDC via 3-pin Terminal Block
Panel, Vesa Mount
21.5 "TFT Full HD 16: 9 LCD
Capacitive Touch
16: 9
50,000 HRS LED Backlight Lite
1x VGA, 1X DVI-D, 1x DisplayPort
Resolution Up to 1920 x 1080 (Full HD)
300 Nits Brightness
Aluminum Front
IP65 Front
9 ~ 48vdc Via 3-pin Terminal Block
Panel, VESA Montage
19 "TFT SXGA 5: 4 LCD Capacitive Touch
50,000 HRS LED Backlight Lite
Resolution Up to 1280 x 1024 (SXGA)
1x VGA, 1X DVI-D, 1x DisplayPort
350 NITs Brightness
Aluminum Front
IP65 Compatible front
9 ~ 48VDC Via 3-pin terminal Block
Panel and Vesa Mount

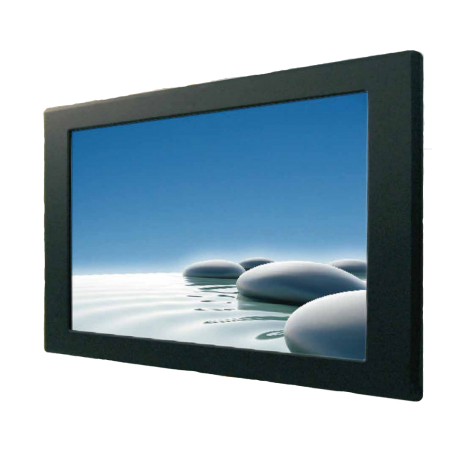

22" (16:9)
Resolution: 1920x1080
Inputs: VGA, HDMI
Resistive Touch (Option: Projective Glass, SAW) USB. (option: RS232)
OSD
Operating temperature: 0 ~ 50℃
Supply voltage: 12Vdc
Option: 1000 nits
17 "LCD monitor
Resolution: 1280 x 1024 to 4: 3 format
IP65 front
250 nits
1 x DVI-D x | 1 | 1 x VGA HDMI
Wall / rack mounting or desktop
Dimensions: 58 x 410.31 x 338.31 mm
12-24V DC
Weight: 3.8 kg without packing / 6,56kg packed
17 "IP66 all around the LCD panel monitor
LED baggrudslys x | 1 | 1 x HDMI jack
12VDC
temperature 0 ° C ~ 50 ° C
automatic brightness function ( day / night)
Option - acquisitions: available with touch - choose between resistive, capacitive, infrared
Option - acquisitions: available with protected glass - with UV protection
10.4" sunlight readable LCD open frame panel
4:3 format
high brightness 1.600cd/m2
Res. 800 x 600
LED backlight
DVI-D, VGA
temperature -20°C~70°C
Low power consumption
MTBF: 70,000 hours
236(W) x 176.9(H) x 6.3(D)mm
15.6 "TFT LCD monitor with LED backlight
Readable in strong sunlight - 1000 nits
1 x VGA
1 x DVI
1 x HDMI Kabel Resolution 1366 x 768 - 16: 9
Capasitive touch - USB
Contrast: 500: 1
IP66
Panel-mount and VESA mount
Supply: 100-240VAC to DC12V / 4.16A included
Operating Temperature: 0 to 50
21.5 "Wide LCD Monitor 16: 9
1 x VGA
250 Nits
IP65 Front
1920 x 1080
Dimensions: 534 x 349 x 66 mm
230vac / 12vdc 2a PSU included.
Vesa75 / 100 and Panel Mount
Option: Resistive Touch, SAW Touch
Option: 1 x VGA, 1 x HDMI
8.4" TFT screen in 4:3 format
for industrial purposes - Very robust
mounting in panel, on wall or in rack cabinets
VESA 75 mounting holes
Dim - Outline: 264 x 189 x 56 mm
Dim - Cutout: 220 x 160 mm
Cabinet: Metal
12VDC
Stock sale: 1 pc.
New version - ask for price
8.4" TFT screen with touch
Touch
external dimensions 26.5 x 19 cm
Cutout measures 22.2x16.2

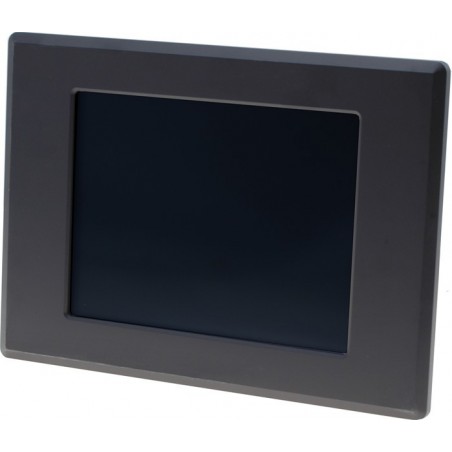

6.4" LCD screen
IP65 sealed front
Panel mounting and VESA75
VGA: 640 x 480 - 4:3 format
Display: 130 x 97mm
Brightness: 300cd/m
110-230VAC, 12VDC/1.5A PSU included
DRIVER FOR WIN 7 ONLY!

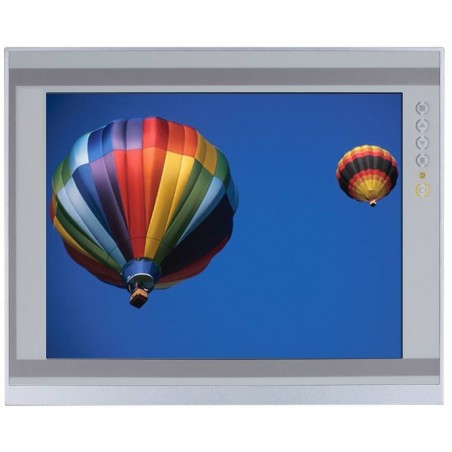

12” LCD screen
IP65 sealed NEMA 4/12 front
DVI, HDMI, VGA
Resolution 1024 x 768 - 4:3
Touchscreen RS232 or USB interface (standard with USB)
Vesa 100 mount, Panel mounting.
OSD
12/24Vdc standard screw terminal
Optional! Rack mounting
Optional! 230 vac

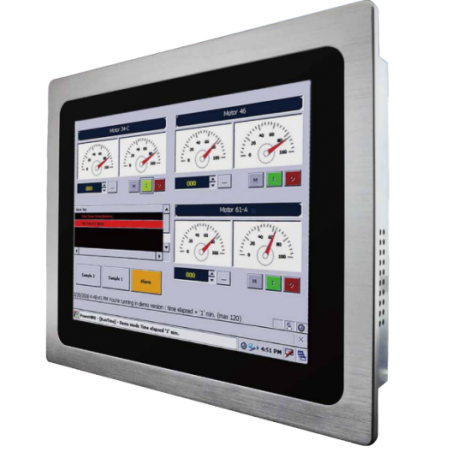

10.4" LCD screen
Resolution: 1024x768
350 Nits
IP65 Front
Alominium cabinet
Touch - capacitive (USB)
1 x VGA
1 x HDMI
Panel Mounting and Vesa75
Display Dimensions: 210.4 x 157.8mm
110-230vac, 12vdc
