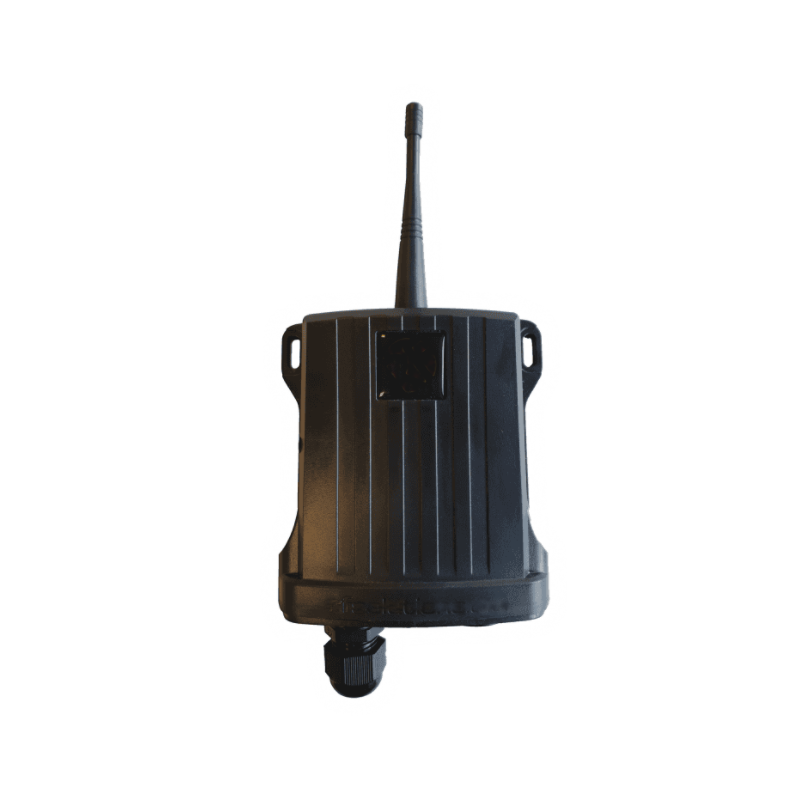

4 channel receiver with 4 x relay outputs, 868MHz. IP67. Up to 2km. 6 - 32VDC.

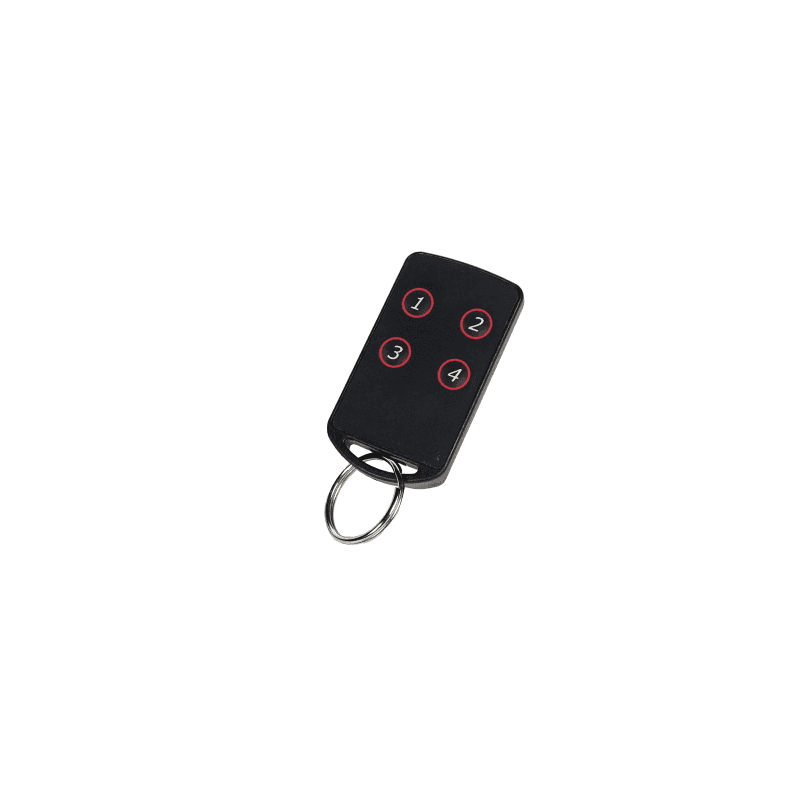

Remote controlled 4 x relay outlets from 868MHz transmitter
4 x Shiftelle (COM, NO, NC)
Animal Relay Switching or Pulse
Secure Communication Protocol
IP67
Supply voltage: 6 - 32VDC
Temperature range: -10 - + 50 ° C
Measure: 90 x 54 x 27 mm

1,794.00 kr
Excl. VAT
Quantity
On the way in
LÆG I KURV
Product number DIO-RX4-HOPRO
Get Volume Offer
close

Get Volume Offer


file_download DOWNLOADS
Ask a question
close

Stil et spørgsmål





Download PDF

A versatile remote control system for general purposes for many different applications.
robust IP67 weather resistant cabinet and is ideal for any need for remote contacts.
With up to 4 switching relay switch outputs, each output can be controlled from any contact on any transmitter. Extra transmitters can be added to the system using the same 'Easy-Learning' process without opening the cabinet.
The installation is done with screw terminals for the power supply and the starting panel switches.
The output relays are activated by pressing the button on the transmitter encoder.

Andre produkter i samme kategori:

8 x power relay COM NO, 24VDC / 250VAC 5A, 1 x RJ45 Ethernet Modbus
8 x Power Relay COM NO, 24VDC / 250VAC 5A, 1 x RJ45 Ethernet Modbus/TCP/UDP, PoE

Built-in web server
Web HMI
Modbus TCP and Modbus UDP protocols
Good communication security
Dual Watchdog
Operating temperature range: -25 ~ +75°C
I/O Pair - second module's input is mirrored to output
8 x Power Relay - electromechanical, COM NO
Relay switching time: on: 10ms, off: 5ms
Relay contact voltage and current: 24VDC/250VAC/5A
Electromechanical: Avoid inductive load
Supply voltage: PoE or 12 - 48VDC

2,441.00 kr
Item Number: ETHIO8PR-P-I
Physically in stock
ADD TO CART
Quick view
8 x Power Relay 5A with Ethernet Daisy chain and Modbus
8 x Power Relay Com N.O, 24VDC / 250VAC 5A, 2 x RJ45 Ethernet Daisy Chain, Modbus / TCP / UDP, PoE

Built-in Web server
Web HMI
Modbus TCP and Modbus UDP protocols
Good communication security
2 x RJ45 Daisy Chain, only data is continued Further to Dual Watchdog
Operating temperature range: - 25 ~ + 75 ° C
I / O Pair Connection - Input Mirrors to another's output
8 x Power relay - electromechanical, COM NO
Rel becoming: On: 10ms, Off: 5ms
Relay Contact voltage and current: 24VDC / 250VAC / 5A
Electromechanical: Avoid inductive load
supply voltage: POE or 12 - 48VDC

2,998.00 kr
Item Number: ETHIO8PR-P2I
On the way in
ADD TO CART
Quick view
I / O module 6 x Digital Input, 6 x Relay output via Ethernet for industrial control tasks
6 x Digital input, 6 x Relay output via Ethernet for industrial control applications. 10 - 30VDC

6 x digital inputs - Wet (active at DC input)
6 x Power relay outputs - 24VDC / 250VAC / 5A (COM, NO)
protocol: Modbus TCP / UDP
1 x RJ45 Ethernet Interface
I / O Pair Function - Input Mirrors for the second exit
digital inputs with counter - max 500Hz
Minimum pulse width: 1ms
Screw terminals: 10 - 30vdc / 3Watt

1,977.00 kr
Item Number: ETHIO6I6PR-I
Physically in stock
ADD TO CART
Quick view
8 x Digital inputs Wet 0 - + 50VDC 500Hz, 8 x Digital output (OC) + 40VDC 650mA, 2 x RJ45, Modbus
8 x Digital inputs Wet 0 - + 50VDC 500Hz, 8 x Digital output (OC) + 40VDC 650mA, 2 x RJ45, Modbus TCP/UDP, 12 - 48VDC

Built-in Web server
Web HMI
Modbus TCP and Modbus UDP protocols
Good communication security
Dual Watchdog
Operating temperature range: -25 ~ + 75 ° C
I/O Pair connection - the input is mirrored in the other's output
8 x Digital input (count): 0 - + 50VDC (500Hz)
8 x Digital Outputs: Open Collector 0 - + 40VDC / 650mA per output
2 x RJ45 Ethernet - daisy chain
Supply voltage: 12 - 48VDC / 4Watt

2,300.00 kr
Item Number: ETHIO8I8O-2I
Physically in stock
ADD TO CART
Quick view
8 x relay via USB with Command line
8 x relay com, NO, NC. 24VDC, 250VAC 10A via USB, HID

Compact Open Board with 8 relay exits
250V / 10A Only resistive load
Controlled from USB
supply voltage: 5VDC
supply via DC Jack or terminal block
No cabinet

410.00 kr
Item Number: USB-REL5V8
Physically in stock
ADD TO CART
Quick view
USB controlled 8 Relay Output Module Final Lays (Plug & Play) to DIN Rail Mont wide Temperatur
8 x terminal relay controlled from the USB port, 5 Amp at 250VAC, 30VDC. Powered from USB, -25 to + 75 ° C

8 final lecturer 250 VAC 5 A
USB type B with screw terminals
USB 2.0 Full-Speed ​​via USB port
Plug-and-Play
PWR / RUN / ERR LED lamps
For YOUR rail mounting
Operating temperature: -25 to + 75 °

1,095.00 kr
Item Number: USB-REL8+
Physically in stock
ADD TO CART
Quick view
8 x PhotoMOS relay output - not wear out, 60VDC 1A, 1 x RJ45 Ethernet. Modbus
8 x PhotoMOS relay output - not wear out, 60VDC 1A, 1 x RJ45 Ethernet. Modbus/TCP/UDP, 10 - 30VDC

The Web server
WEB HMI
Modbus TCP / UDP Modbus
Dual Watchdog
Operating temperature: -25 ~ +75°C
I/O Paie connection - input is mirrored to the other's output
8 x PhotoMOS relay (solid state) COM NO
Relay contact voltage: max 60VDC
Relay contact current: max. 1A
Switching times: on: 5ms, off: 0.3ms
Optical isolation to 3000 Vrms
Supply voltage: 10 - 30VDC / 3watt

2,056.00 kr
Item Number: ETHIO8PR-I
On the way in
ADD TO CART
Quick view
4 x relay outputs 250VAC via USB
4 x relay com, NO, NC. 30VDC, 250VAC 10A via USB, HID, 5VDC

Compact open board with 4 relay outputs
250VAC / 30VDC / 10A resistive load only
Controlled from USB via HID (E.g. usb-relay-hid )
Supply voltage: 5VDC
Supply via DC jack or terminal block
No cabinet
Please note no software is included
Get info on USB-RELAY-HID software online.

290.00 kr
Item Number: USB-REL5V4
On the way in
ADD TO CART
Quick view
