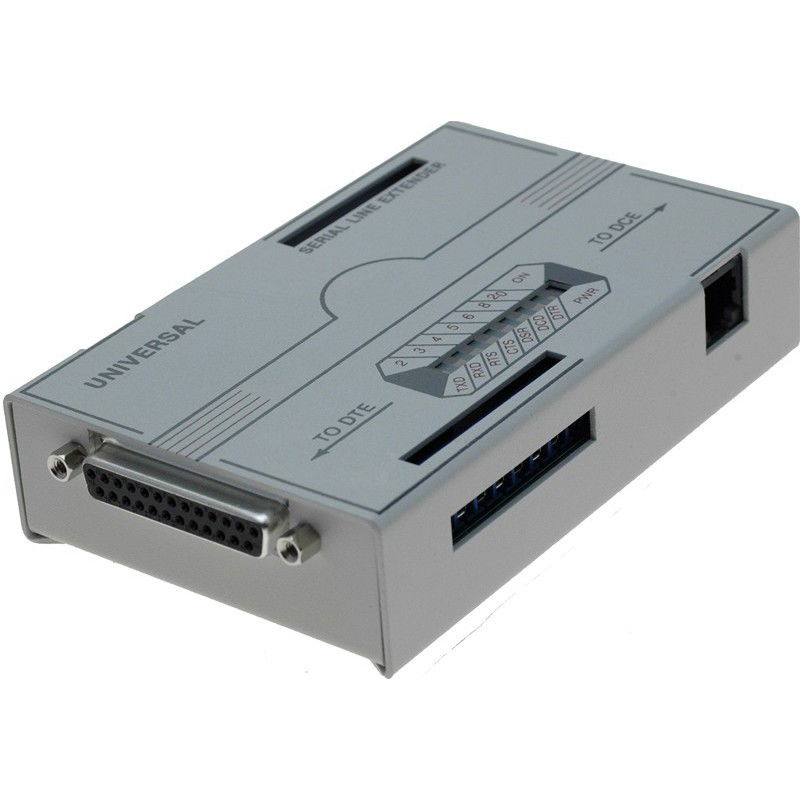

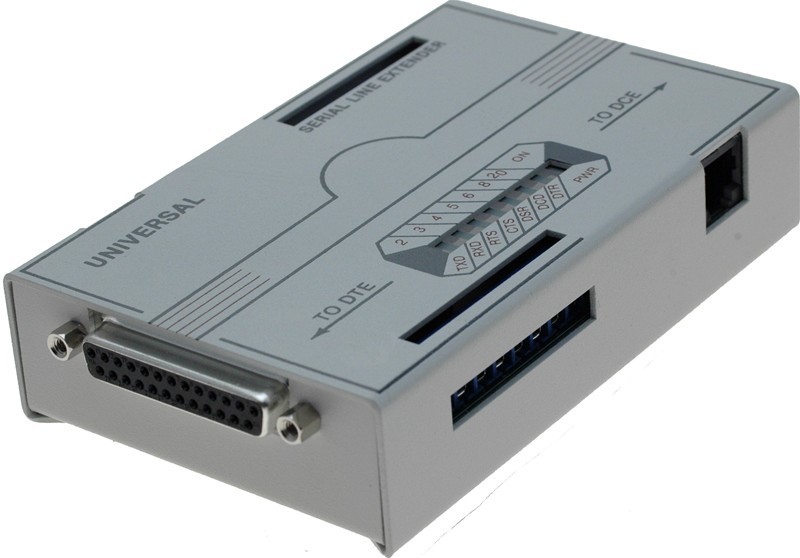

Extend serial cable up to 1600 meters, transiently protected
RS232 / V.24
Transparent data: syncronous and asyncronous
All HW and software handshakes
DB25 male and DB25 female
With screw terminal connection of serial I / O
With RJ45 connection of serial from special cable
DC9V / 2A power supply included
Booster til RS232, op til 1600 m, overspændingsbeskyttelse
Extends serial cables up to 1600 meters or printer cables up to 180 meters.
RS232 Rxtends up to 250 meters over RJ45 cable
Baud rate: 110 ~ 921,600, 8-bit
Use STP (shielded) patch cable - straight through
The network cable must not be connected to the patch panel
1 x 5VDC/1A - the power supply supplies both devices (PoC)
Important: If the distance is long, 2 power supplies are recommended
Important: If the network cable is of poor quality, use 2 power supplies
Single-Mode Fiber (Multi-Mode optional)
1-Channel Duplex Rs485
Point-to-Point or Daisy-Chain (M485-FIBER-ST is needed)
DC input 5V (< 3W)
Operating tempeture: -45 C~+75 C
Up to to 115.2Kbps data rate
Single-Mode Fiber (Multi-Mode optional)
1-Channel Duplex Rs485
Point-to-Point or Daisy-Chain (M485-FIBER-SR is needed)
DC input 5V (< 3W)
Operating tempeture: -45 C~+75 C
Up to to 115.2Kbps data rate
