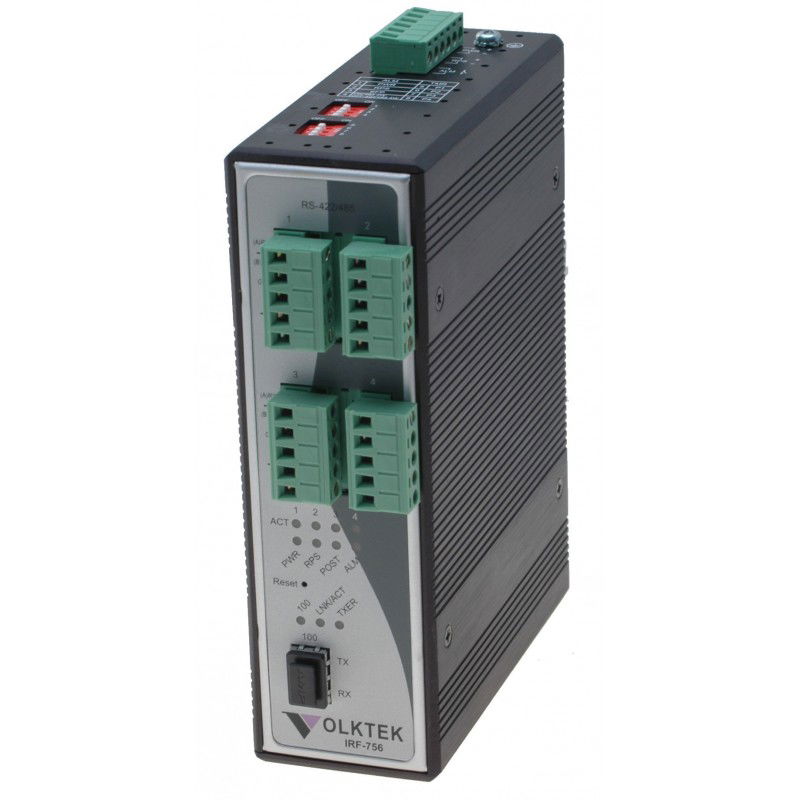

4 Ports RS485 / 422 Extender over Fiber 1200 - 115Kbps, 4 x Screw terminal, 100Mbit SFP Multi Mode and Single Mode

Boost-4RS485 fiber can connect serial ports over fiber network over distances up to 2 km, 30 km or 60 km - depending on the type.

Can be configured with a built-in web server.
Supplied without SFP module - purchase Boost-4RS232 - Modul2 - LC Multimode.
Ideal for plants where parts of the network use light guide cable. See our other equipment with fiber interface (network cards, switches, media converters, etc.) Typical applications can be found in industrial environments where electrical disturbances are critical.

Serial ports: 4 x RS422 / 485 ports at speeds from 1200 bps for 115 Kbps
Data Bit: 7/8, Stop Bit: 1/2
Parity: Straight / odd / No
Flow Control: RTS / CTS, Xon / Xoff
Signals: RS485: TX +, TX-, RX +, RX-
Network: 100Base-FX Via LC Light guide cable
protocols: TCP / IP, UDP, HTTP, SNMP READ, Telnet, DHCP, ICMP, BootP, ARP
Connector: Serial Ports: RS485: 4 x Screw Technical Block (5-pole)
Light guide: SFP connector for LC Fiber
supply: Screw terminal block with extra supplied. For redundant supply
cabinet: 162 x 50 x 120 m.m. (H x B x d) - w / Holder for your shine
display: 3 LEDs Displays TX / RX, Network and System Status
Power Supply: Requires 9 - 32 VDC Max. 6 watts via screw terminals (supplied. Not )
Use DC12V / 1A-RQ
