HMI 2.8" Controller panel with touch Modbus / TCP / RTU RTC. Ethernet and PoE

2.8" Touch HMI device with Ethernet and PoE
High Resolution color touchscreen
RTC (Real Time Clock)
GUI design
Modbus TCP/RTU protocol
ESD protection: 4 kV
Operating temperature: -20 ° C ~ 70

3,457.14 NOK
Excl. VAT
Quantity
On the way in
LÆG I KURV
Product number HMI2.8"ETH-I+
Get Volume Offer
close

Get Volume Offer


file_download DOWNLOADS
Ask a question
close

Stil et spørgsmål





Download PDF

Specifications

CPU 32-bit RISC CPU
Dimensioner 127 mm x 92 mm x 31 mm
Driftstemperatur -20 ~ +70°C
Hukommelse 16 MB SDRAM/16 MB Flash
IP-Tæthed Front Panel: IP40
LCD 2.8” TFT -Resolution 240 x 320 , 65535 colors
Montering Wall Mount

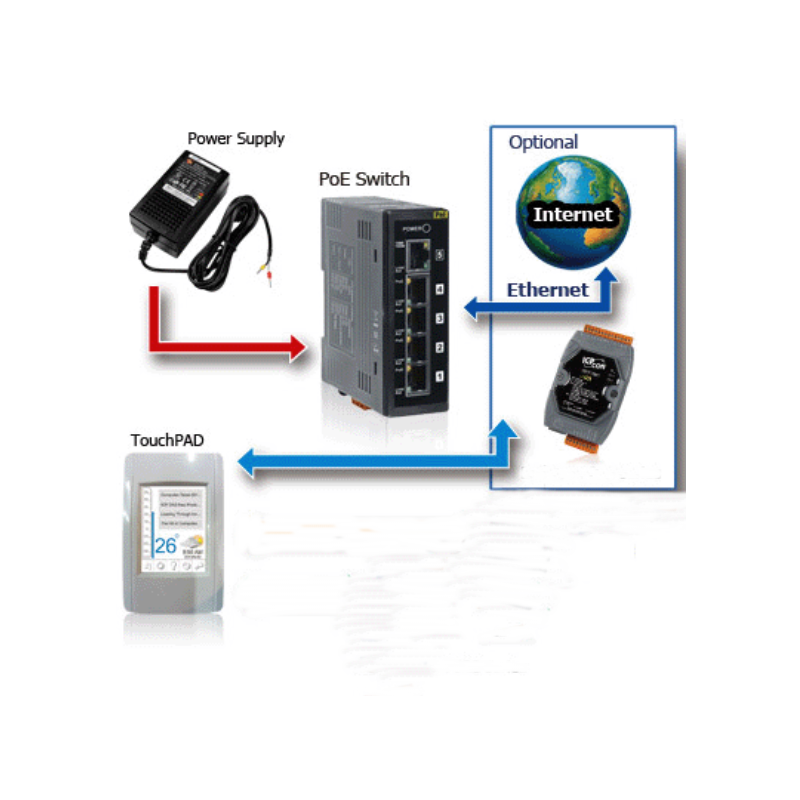

PoE IEEE 802.3af, Class1 (48 V)
Software Free HMIWorks development tool Suppots C programming language and Ladder Designer Supports the custom communication protocol (C language)
Stik Ethernet interface: RJ-45 x 1, 10/100 Base-TX
Touch Resistive Touch

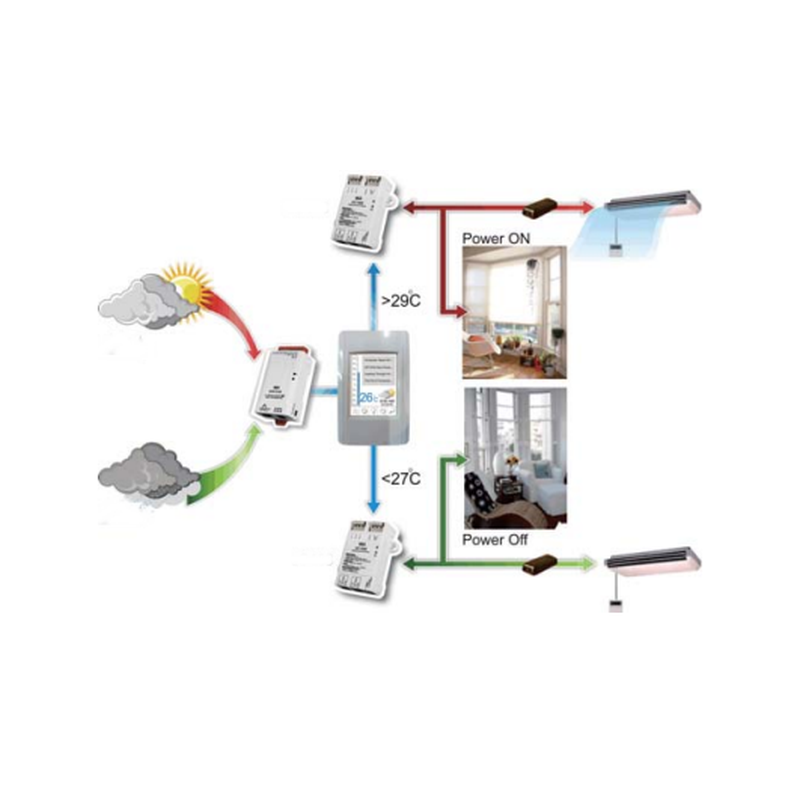

2.8 inch H-series of small touch HMI and designed for building and home automation. The 2.8 inch series is equipped with a high resolution TFT colorouch screen and fits in plain wall outlet on the wall. In addition, it is seamlessly integrated with rich I / O modules and presents beautiful, flexible and custom image frame. In short, it is the best choice to upgrade the mechanical switch to intelligent control points.

For PLC users delivers HmiWorks Ladder designer, and for IT users, C-language environment is supplied. In particular, it only takes no more than 30 minutes to learn how to create an application program with devices in the TPD series when using Ladder designer.
