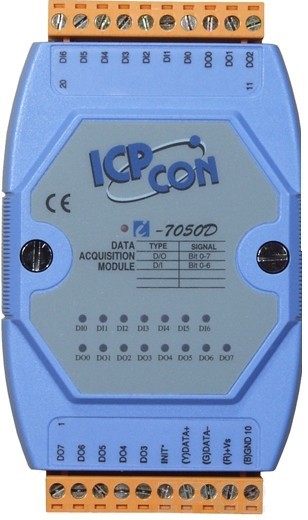

7 digital inputs and 8 digital outputs, display. RS485 bus. 10 - 30vdc.

RS485 module with digital I / O
7 digital input
8 digital output, 30volt / 30mA
RS485 interface
Baudrate 1200 ~ 115200 bps
Dual Watchdog
10 - 30 VDC, 1 W via terminal block
-25- + 75 °
DIN rail mounting

1,045 kr
Excl. VAT
Quantity
Physically in stock
LÆG I KURV
Product number M485-DIO7D-I
Get Volume Offer
close

Get Volume Offer


file_download DOWNLOADS
Ask a question
close

Stil et spørgsmål





Download PDF

Specifications

Baudrate 1200 ~ 115200 bps
Driftstemperatur 25 ~ +75°C
Indgang 7 stk. med fælles minus. Indbyggede Pull-up”: 10 kΩ til 5 VDC Logisk 0: 0 – 1 V Logisk 1: 4 – 30 V
Interface RS-485
LED Yes, 1 LED as Power/Communication Indicator
Montering DIN-Rail or Wall Mounting
Protokol DCON (For I-7050 series) Modbus RTU, DCON (For M-7050 series)
Udgange 8 stk. “Open collector”: 30 V/30 mA, maks. effekt: 300 mW
Watchdog Dual Watchdog. Module (1.6 Seconds), Communication (Programmable)
