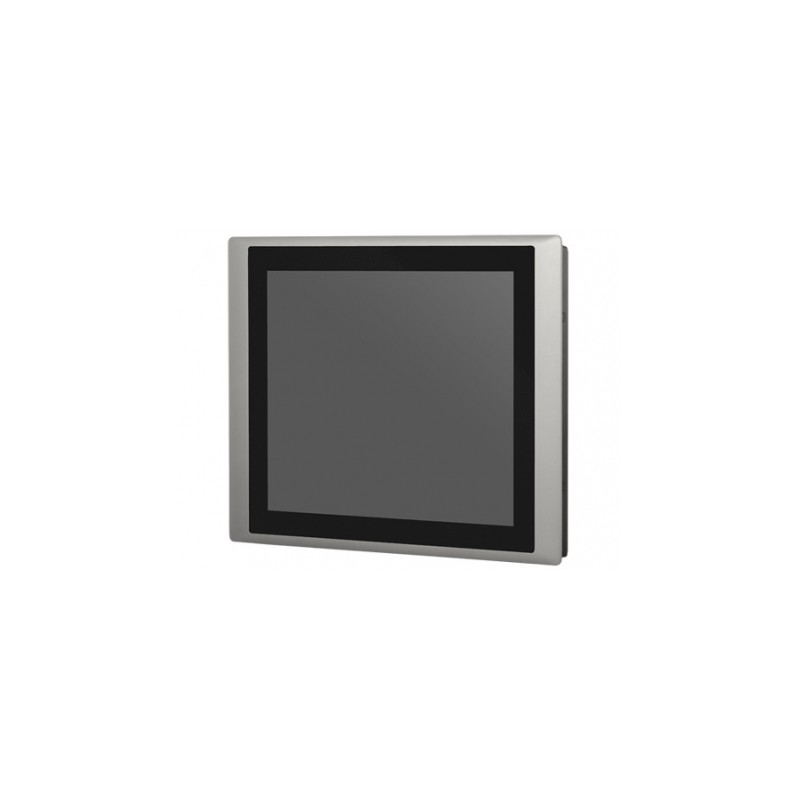

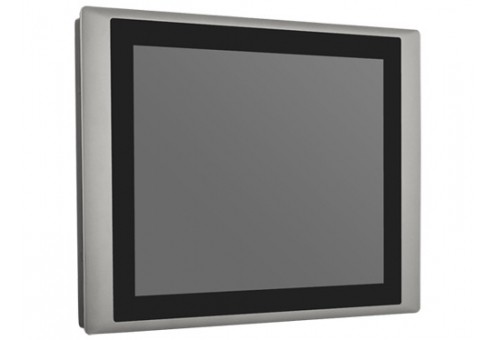

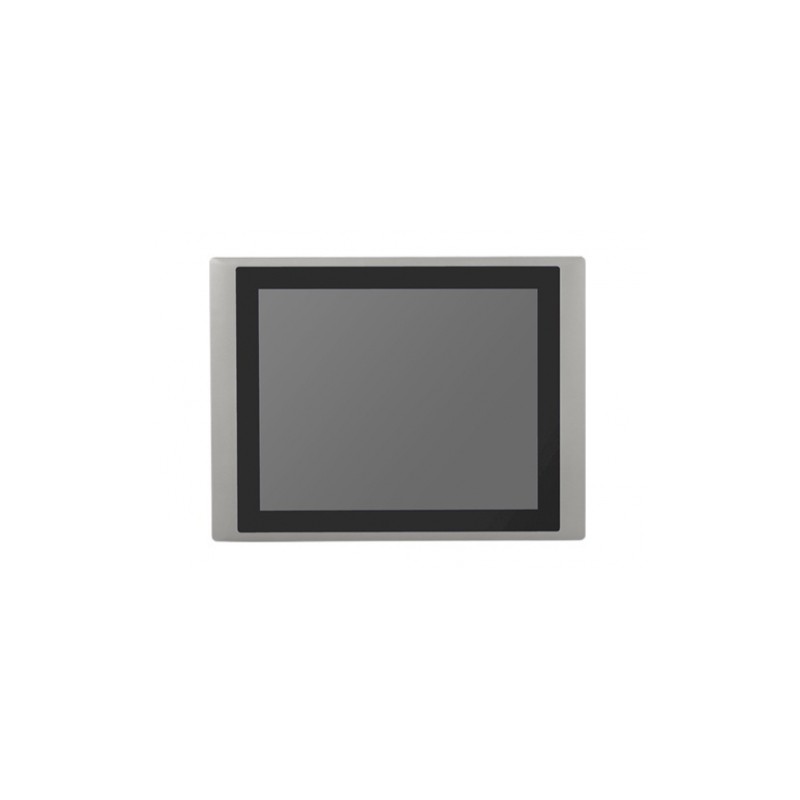

19" Monitor TFT-LCD, Projected Capacitive Touch (PCAP), IP65 Front, VGA, DVI-D, DisplayPort, 9~48VDC

19 "TFT SXGA 5: 4 LCD Capacitive Touch
50,000 HRS LED Backlight Lite
Resolution Up to 1280 x 1024 (SXGA)
1x VGA, 1X DVI-D, 1x DisplayPort
350 NITs Brightness
Aluminum Front
IP65 Compatible front
9 ~ 48VDC Via 3-pin terminal Block
Panel and Vesa Mount

$1,434.72
Excl. VAT
Quantity
On the way in
LÆG I KURV
Product number MON19-CDS
Get Volume Offer
close

Get Volume Offer


file_download DOWNLOADS
Ask a question
close

Stil et spørgsmål





Download PDF

Specifications

Driftstemperatur 0 ~ +50°C
Forsyning 9~48VDC via 3-pin Terminal Block
Indgang 1x VGA, 1x DVI-D, 1x DisplayPort
IP-Tæthed IP65 Compliant Front Panel
Skærm 19” TFT-LCD

MON19-CDS is 19" LCD display module with projected capacitive touch. It offers resolution up to 1280x1024 (SXGA) and 350 nits brightness. MON19-CDS features flat surface and IP65 dust/waterproof front panel. In addition, designed with aluminum die-cast front frame, it is rugged and reliable for industrial environment. With support for Convertible Display System (CDS) technology, MON19-CDS allows you to configure, upgrade and maintain your Convertible Display System easily.
