10.4" panel PC 1.91GHz EN50155 Certificeret. 4GB RAM, 64GB SSD
10.4" TFT-LCD
resolution 1024x768
Touch
24V DC
IP65 Front
USB
RS232
19"
Touch
2GB RAM Max 4GB
1xRS232, 1xRS232/422/485
4xUSB
1xVGA, 1XHDMI
2xRJ45
12VDC
Buid To Order Panel PC.
Samles på bestilling, SSD disk størrelse efter ønske.
Kan levere
Oplyste pris er uden OS og SSD installeret.
10.4" TFT-LCD
resolution 1024x768
Touch
24V DC
IP65 Front
USB
RS232
21.5" Stainless steel Panel PC
TFT 1920x1080
6th Gen. CPU i3/i5 CPU support
Max 16GB RAM
M12 8 pin connectors
2x USB 2.0, 1 x USB 3.0
1 x COM
1 x CAN
1x LAN (POE IS OPTION)
Flat Front design
Stainless steel grade 304. (option 316)
Touch option Resistive, Projected Capacitive, Glass
ON/OFF on side
Vesa mount 100x100, Option Yoke Mount
571x362x55 mm
10KG

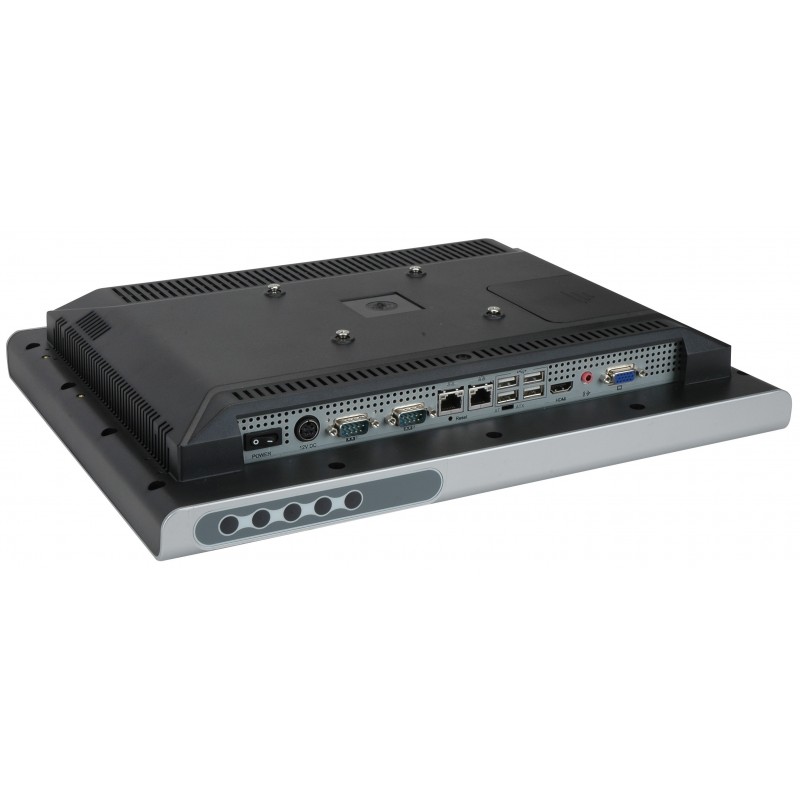

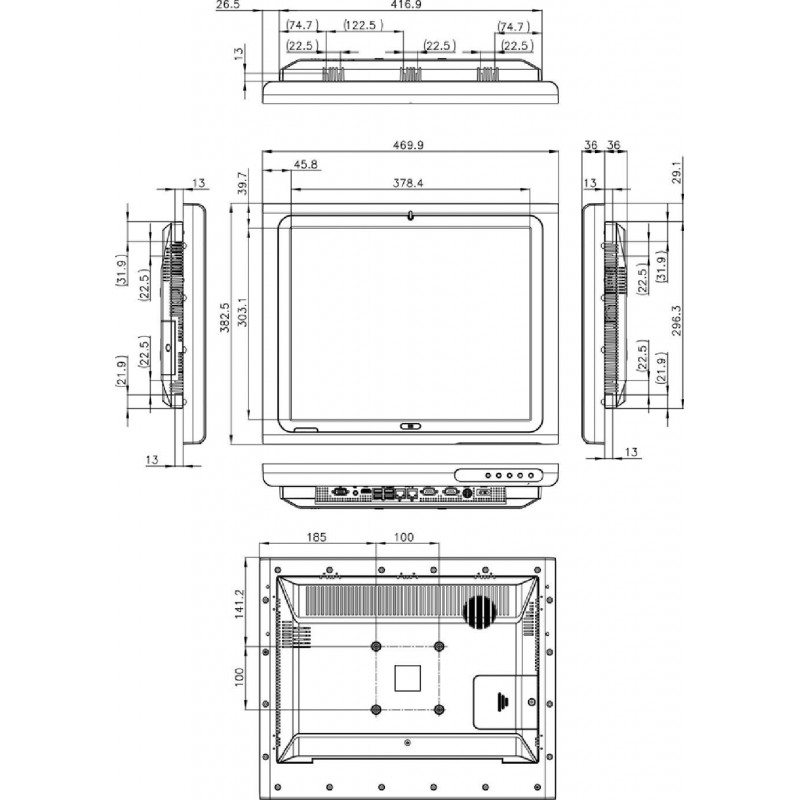

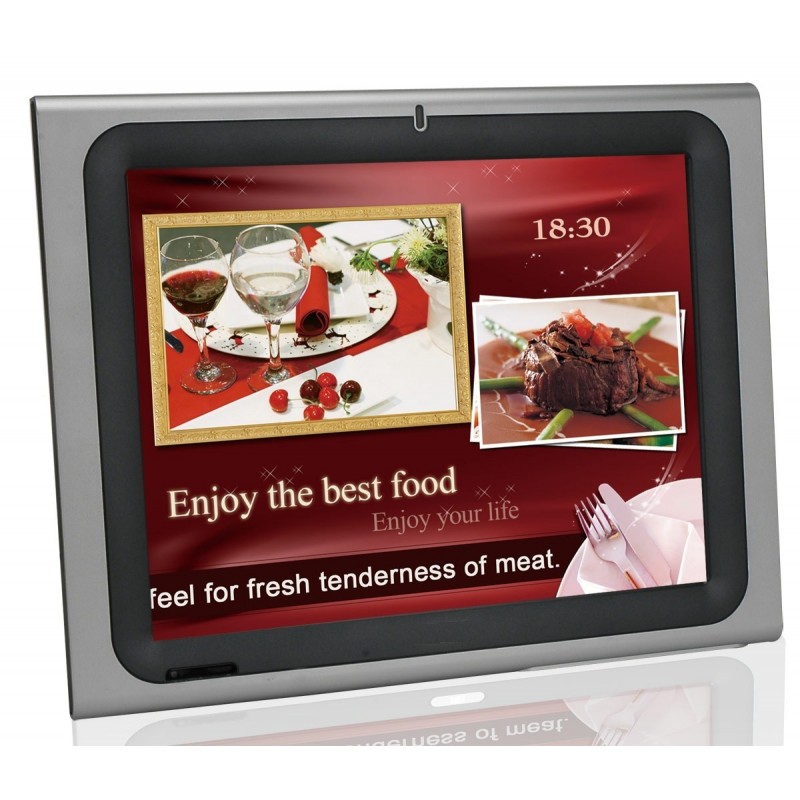

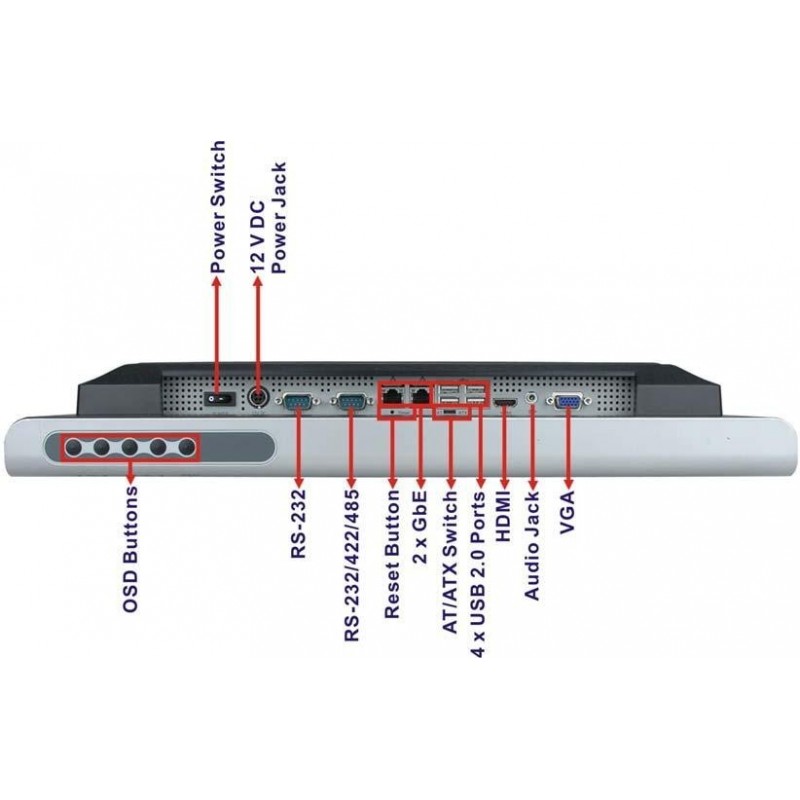

19" TFT-LCD Panel PC
IP65 front
Resolution: 1280*1024
250 nits
5-wire resistive touch screen (capacitive touch on request)
Intel Celeron J4125/J6412 CPU / Core i5 /i7
RAM: 1x SO-DIMM DDR4 (celeron) max 16 GB, i5/i7 2x SO-DIMM DDR4 max 32 GB
1 x M.2 2242/2260/2280 SATA
1 x SATA (2.5'' SATA)
1 x M.2 2280 NVME
MPCIe: M.2 3042/3052 for 3G/4G/5G with built-in SIM slot, M.2 2230 WiFi & BT
2x RJ45 Intel i225V (on special request 2 more can be added)
USB: Celeron version: 4*USB2.0+2*USB3.0 (J4125/J6412), i5/i7 version 4*USB3.0+2*USB2.0
COM: 2x DB RS-232/422/485 port, 4*RS232 in expansion port
GPIO: 1* 10 bit GPIO Inside the expansion port
Power supply: 9-36V DC plug
Working temperature: With air flow -10 ~ 60° C
Anti-vibration with SSD: 3 Grms, IEC 60068-2-64, random, 5 ~ 500 Hz, 1 hour/axis
Anti-shock with SSD: 30 G, IEC 60068-2-27, half sine, 11 ms duration
437.27x361.27x68.8mm
OS Support: Windows 10 / Ubuntu, CentOS
Fanless and robust design
6. Gen Intel® CORE ™ I3 6100U / I5 6300U / I7 6600U CPU
Resolution: 1920 x 1080
Front IP69K IP66 true flat PCAP Touch
Silver Aluminum Front Bezel
4 x USB, 2 x RS232, 2 x Gigabit LAN, 1 x HDMI, 1 x DP
Vesa Mount, Panel Mount, Clip Mount
optical bonding
1000nits high brightness, readable in sunlight
