Remote RAID Controller U2W Channels
Advanced internal RAID controller with true SAN (Storage Area Network) features.
The controller has built-in 64 bit RISC CPU and handles up to 6 Ultra160 channels and 2 fiber channels, each with up to 15 discs, each Both Ultra160 LVD and SE discs are supported. 2 controllers can be connected as Master and Slave, so one continues if the other fails. There is a hot swap of all disks and automatic rebuilding or expansion with new disks. Multiple servers can share drives so that each server gets its own RAID system.
The operation takes place vs. The built-in control panel, either via RS-232 serial port and a terminal program or via the included application (running under DOS, Windows 95 and above, and DEC Alpha).
Optional RAID levels 0, 1, 3, 5 or JBOD (Just a bunch of drives).
Cache can be installed in a regular 168-pin DIMM slot, optionally 32 - 1024 MB ECC SDRAM.
The server installs an ordinary. SCSI Ultra160 interface, which connects the controller to a DB68 cable.
IP65 tæt front 12” panel pc med touch

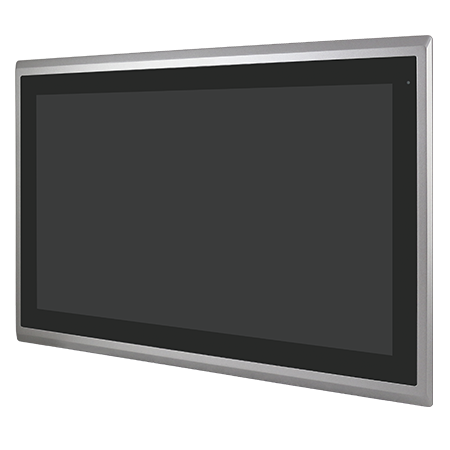

21.5 TFT LCD 1000 nits. (Available with Alm 250 CD / M2)
Intel 6/7 Gen CPU I3 / I5 / I7. Active cooling
H170 chipset
max. 32GB RAM, 2x260 Pin So-Dimm DDR4 2133 MHz SDRAM
4 x USB-A 3.0
2 x RJ45 Gbit Ethernet
2 x RS232 / 422/485, 1 x RS232 DB9
MPC extension
2x Pcie X1 / X16
RAID Support
IP66-rated Front
OS Support: Win Embedded 7, 8.1 Windows 10 IoT
10.4" TFT-LCD
resolution 1024x768
Touch
24V DC
IP65 Front
USB
RS232
8.4" SVGA TFT LCD, LED backlight
N3060 (up to 2.48GHz) Fanless
2x Mini PCI Express
2x RJ45 Gbit
2x USB
2x COM
IP-65 front
Slim design
Max. 8GB RAM
