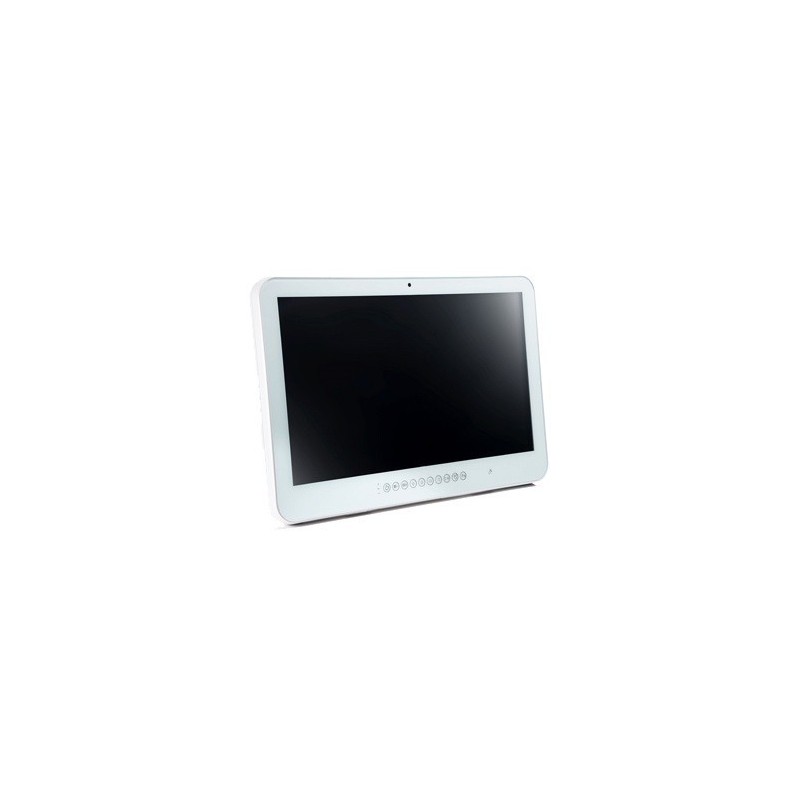

24" Medico godkendt Panel PC 4th Gen. I5 (1.6GHz) eller I7 (2.2GHz) processor

24" 1920x1080 Led Panel PC
P-CAP Multi Touch 10 fingers
Intel 4th Gen. Haswell  i3/i5/i7 support
Anti-bacteria (MRSA) material
4GB RAM, MAX. 16GB
500GB HDD
Medical UL60601-1 3rd edition certification
UL MArk/UL60601-1
DVID-D input
OPTIONS

IPP24-IX
4,135.78 GBP
Tax excluded
Quantity
On the way in

  • Download PDF
  • file_download Downloads
  • live_help Ask a question

Build To Order medico certificeret 24" panel PC.

Komplet løsning med cpu, RAM, OS osv. kan leveres kontakt salg.
Denne panel PC tilbydes med mange optioner f.eks.
4KV LAN/COM/USB isolation I/O
built-in battery pack
optical device (DVD or DVD-RW)

CPU
4th gen. mobile Core i7/i5/i3 proc.(25W max.) (i5-4402E, i7-4702HQ)
Chipset
Intel DH82QM87 PCH
Approval
FCC/CE/VCCI Class B, cULus Mark/UL60601-1, EN60601-1 approved / ISO 14971 / IEC-62133
Dimensioner

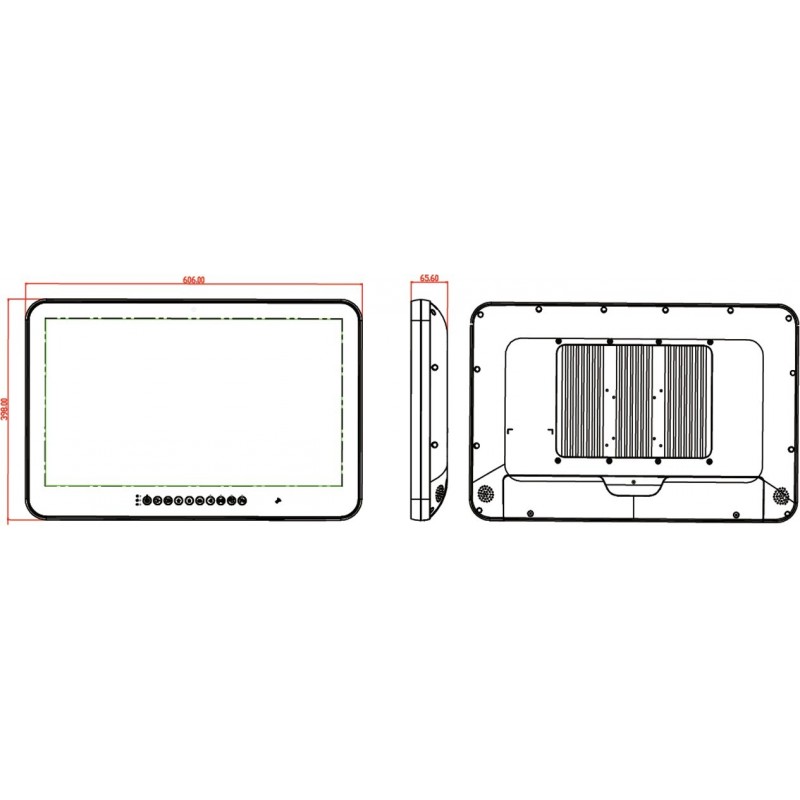

606 (H) x 398 (V) x 65.6 (T) (mm x mm x mm)
Ethernet
2 x Gbit Lan
Forsyning
DC-In x 1,6V~32V
Grafik
Intel integrated HD Graphics 4600
Hukommelse
2x DDR3/DDR3L 1600 MHz SODIMM socket support dual Channel, non-ECC, up to 16GB
IP-Tæthed
IP65 front, IPx1 for whole system
Lyd
3.5mm Audio jack x 2 (Line-out, and Mic-in)
Materiale
Anti-bacteria (MRSA) plastic housing
Porte
COM x 2 (RS232 x 1, RS232/RS422/RS485 x 1;RS-485 auto flow support)
Skærm
24" Full HD 1920 x 1080/ 250 nits
Storage
2.5” SATA HDD drive bay x 1, mSATA via Mini PCI-E(Thru SATA III) x 1 2nd storage DVD drive / or 2nd HDD / or Card reader x 1
Touch
Projective capacitive touch panel (10 fingers)
Udgange
DVI-D (Video-IN) x 1, DP (Video-OUT)x 2
Udvidelser
PCI-Ex 16 expansion slot x 1 or PCI 2.2 x 1, Mini PCIe x 2 (52 pin card-edge type)
USB
USB 3.0 x 4 , USB 2.0 x 2 (Default)
Weight
9 kg
