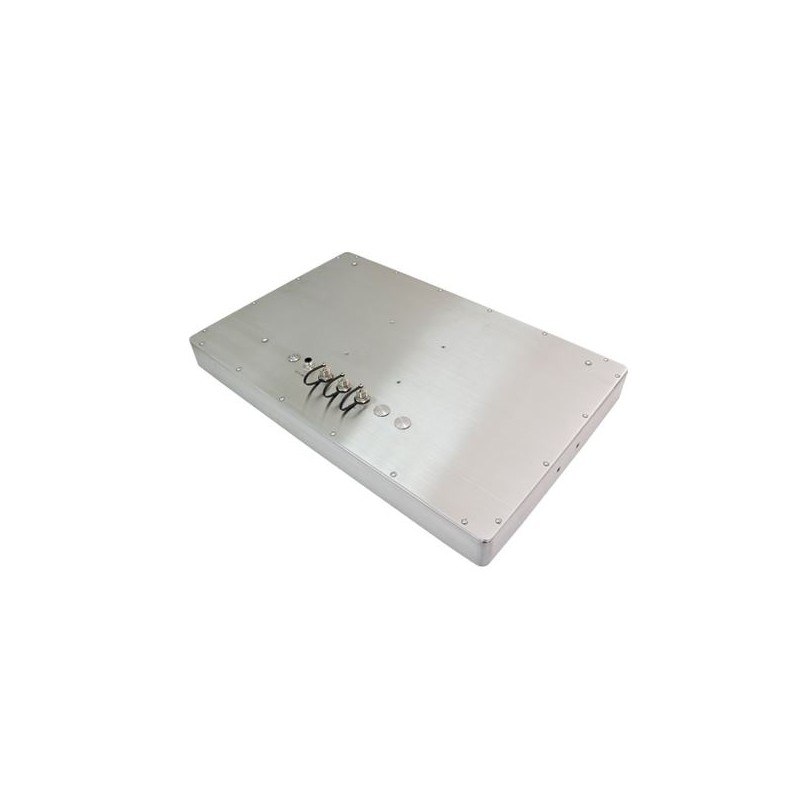

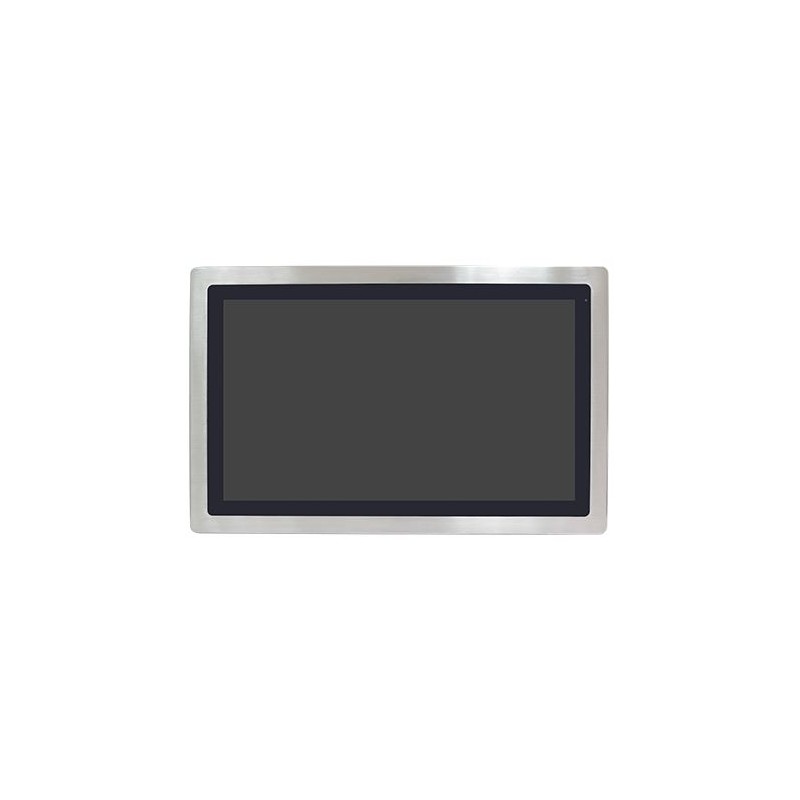

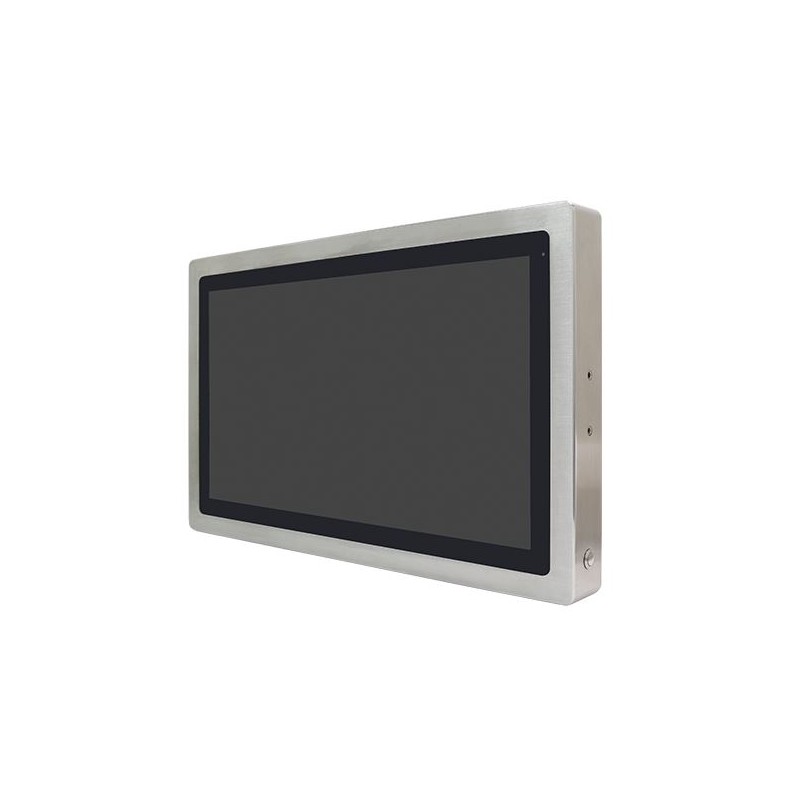

Panel PC 21.5" with 1000 nits, suitable for sunlight, with touch, stainless steel housing full IP66/IP69K

21.5" Stainless steel Panel PC
TFT 1920x1080
6th Gen. CPU i3/i5 CPU support
Max 16GB RAM

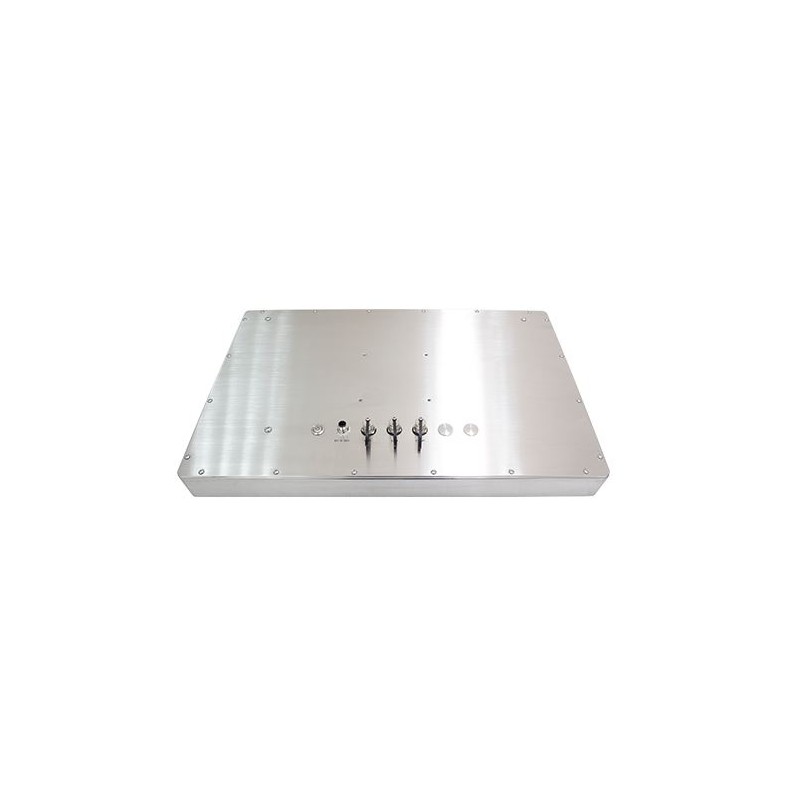

M12 8 pin connectors
2x USB 2.0, 1 x USB 3.0
1 x COM
1 x CAN
1x LAN (POE IS OPTION)
Flat Front design
Stainless steel grade 304. (option 316)
Touch option Resistive, Projected Capacitive, Glass
ON/OFF on side
Vesa mount 100x100, Option Yoke Mount

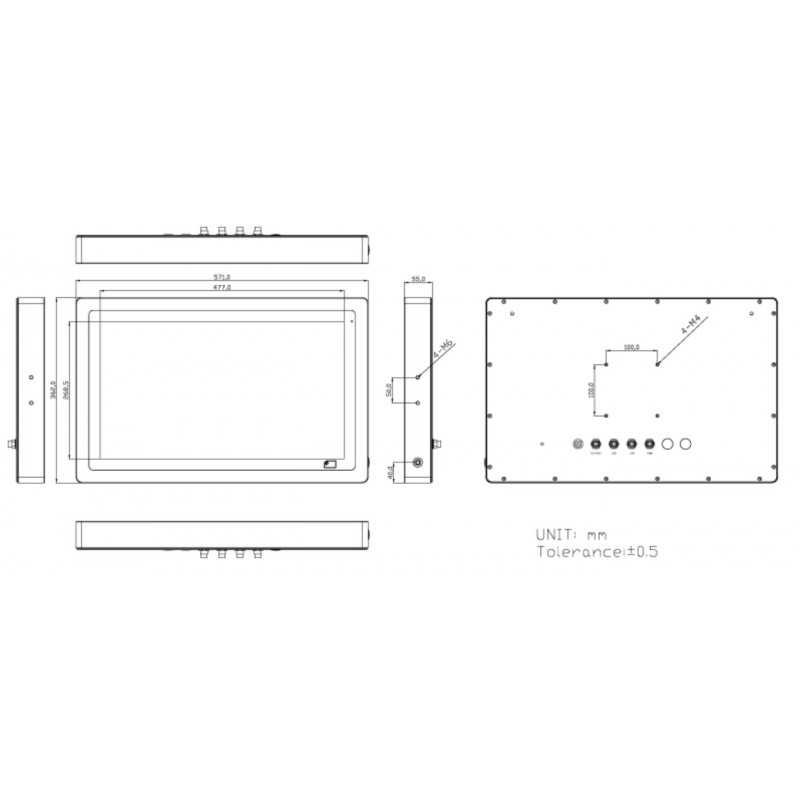

571x362x55 mm
​10KG

IPP21.5IX-SUN-IP65F
Call +45 56 66 20 20 for price
Quantity
On the way in

  • Download PDF
  • file_download Downloads
  • live_help Ask a question

Produced on order. So you can even specify whether it should be to sunlight or not. CPU model, SSD size.

Other models around rog solutions can be offered

CPU
Core i5-6300U or i3-6100U
Antal farver
16.7M
Approval
CE/FCC class A
Driftstemperatur
0~50 degrees
Ethernet
1xM12 8 pin LAN
Forsyning
1xM12 3 Pin DC 9~26V 43Watt
Hukommelse
1 x 260 pin SO-DIMM up to 16GB DDR4 2133 MHz
Kontrast
3000:1
LCD
21.5"TFT 1920x1080
Compositions
304 Stainless steel default. OPTION ! 316
OS SUPPORT
windows 7 and 8.1 embedded, Windows 10IoT ENT LTSB
Porte
1xM12 8 pin COM1, RS232/422/485 default RS232
Synsfelt
178(H)/178(V)
Touch
OPTION! Resistive, Capacitive, Glass, USB light transmission reduce 20%
USB
1xM12 8 pin USB 2.0
