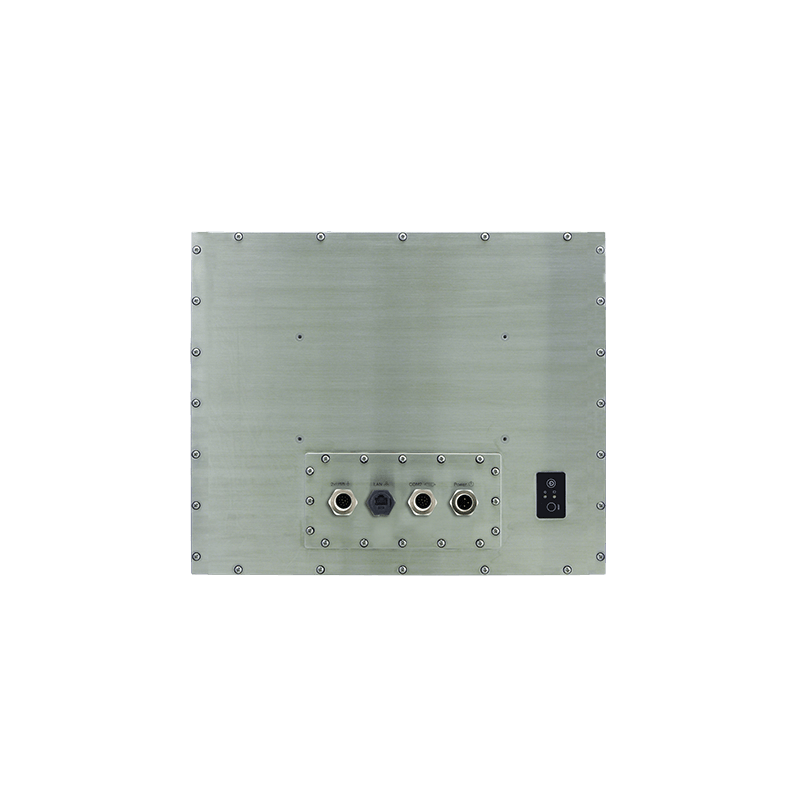

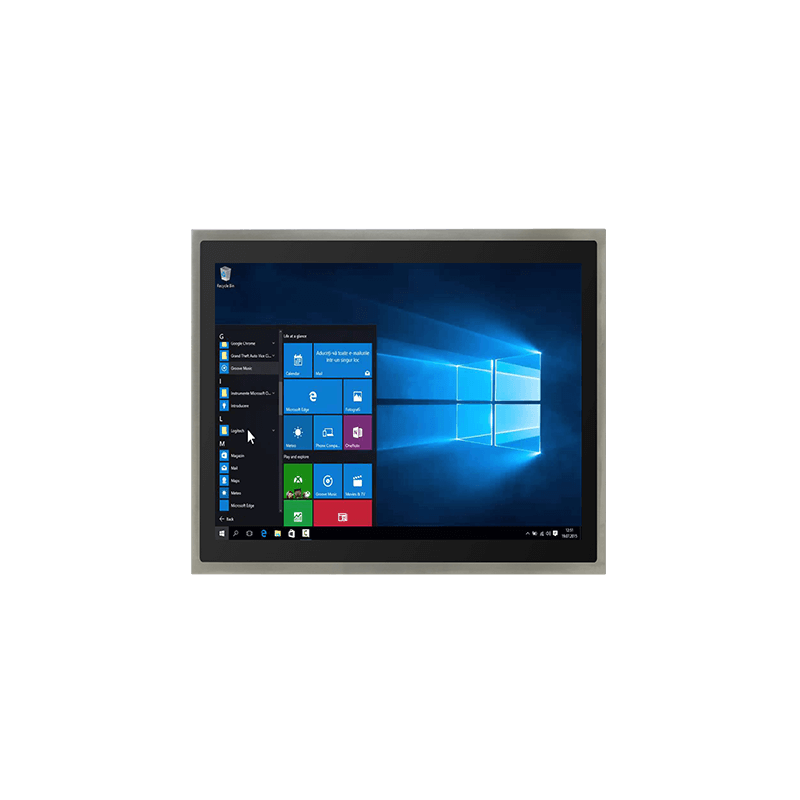

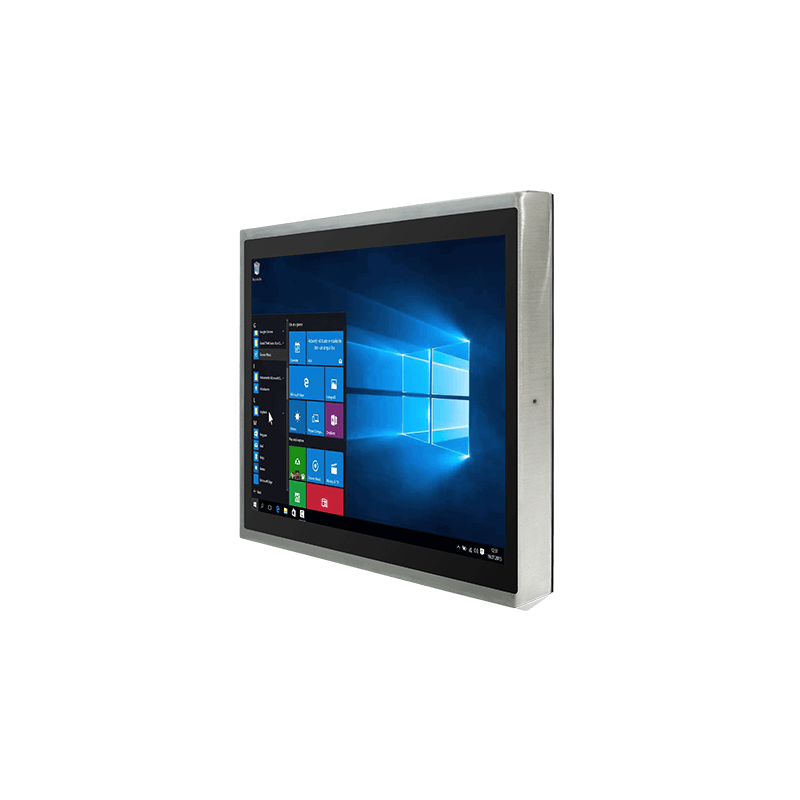

17" Intel Core i5 Full IP65 stainless PCAP Panel PC

11th Gen of Intel® Core™ i5-1135G7 2.4 GHz (up to 4.2 GHz)
17" 1280x1024, PCAP touch
1000 nits (Optical bonding)
1 x SO-DIMM, DDR4 up to 3200 MHz
M.2 M-Key SATA SSD or NVMe SSD
2x USB 2.0
1x RS232
1x RJ45-10/100/1000 LAN
Full IP65
Fanless
VESA mounting, stainless steel
Operating temperature -10°C to 45°C
337.920x270.336 mm
12VDC power input



IPP17-I5G11-1000NITS
Call +45 56 66 20 20 for price
Quantity
On the way in

  • Download PDF
  • file_download Downloads
  • live_help Ask a question

The 17" Intel Core i5 IP65 Stainless PCAP Chassis Panel PC is a state-of-the-art device designed for demanding environments. Made with SUS 316/ AISI 316 stainless steel, it's ideal for food and chemical industries. The device is sealed to IP65 standards, ensuring protection against water and dust. Its true flat, easy-to-clean front surface with edge-to-edge design makes it user-friendly. The panel PC offers superior readability with its P-Cap technology and supports various mounting solutions. It also comes with waterproof ports and adapter cables for external connectivity. The touch screen is highly sensitive, supporting multi-touch functionalities, making it easy for users to interact with the device. The chassis design is stylish and supports different mounting brackets for easy installation. This Panel PC is a comprehensive solution for automation processes in Food & Beverage applications and chemical factories.

CPU
Intel Core i5-1135G7 2.4GHz (up to 4.2GHz)
Certifications
CE, FCC
Driftstemperatur
-10°C to 45°C
Luftfugtighed
10% to 90% RH, Non-Condensing
Lysstyrke
1000 nits
Montering
VESA Mount
Opløsning
1280x1024
Skærm
17"
Storage
1 x M.2 M-Key 2242 SATA SSD or 1 x M.2 M-Key 2280 NVMe SSD
Touch
True-Flat PCAP Touch
Dimensions
337.920x270.336 mm
Material
SUS 316/ AISI 316 stainless steel for food and chemical industries
Power Supply
12V DC (M12 type)
RAM
1 x SO-DIMM, DDR4 3200 MHz, 4GB 8GB (Optional) 16GB (Optional) 32GB (Optional)
Drifttemperatur
0°C to 45°C
