Control via SMS messages
Alarm at power failure
Relay output for 230VAC
Universal input for temperature sensor
Note it is not guaranteed to be compatible with all Bluetooth adapters, otherwise use BLUETOOTH4USB-C
GSM device with built-in Bluetooth so the device can be configured via GSM messages sent via mobile network or Bluetooth connection
Alarm from the device can be done via SMS or empty phone call or both. GSM-IO-PWR has a maximum of 12 alarm-phone-number slots programmed into the unit. Note SMS and call record 2 phone number slots.
The universal input can be used either as analog 0 to 5 volts DC max. Digital 0 max 2 volts DC 1 over 2 volts DC max. 5 volt
or 1 temperature / humidity sensors can be connected to the device and one of which can / must activate or deactivate the relay output
via max and min limit values
Via Windows software and Bluetooth connectivity, the device can be configured from a Windows PC and setups can be downloaded and sent to the device
There is APP for Android
SIM card not included
Temperature gauge
1.8 Meter cable
Dallas DS18B20 Chip
Dual-mode support Bluetooth 5 low energy(Backward compatible BT 2.0/3.0/4.0)
Full-speed USB, USB 2.0, USB 1.1 interface
Bluetooth v5.0 specification compliant
Ultra-fast bluetooth 5.0 adapter with BT EDR (Enhanced Data Rate) support up to 3mbps transmission
Effective use range 1~20 meters. (Up to 20m in open environment)
Low power Consumption
SystemSupport:Windows7,Win8,Win8.1,Win10,Win11.
Operating Temperature:-10-50℃
Android Phone/tablet, Bluetooth mouse&keyboard, Bluetooth speaker and headset

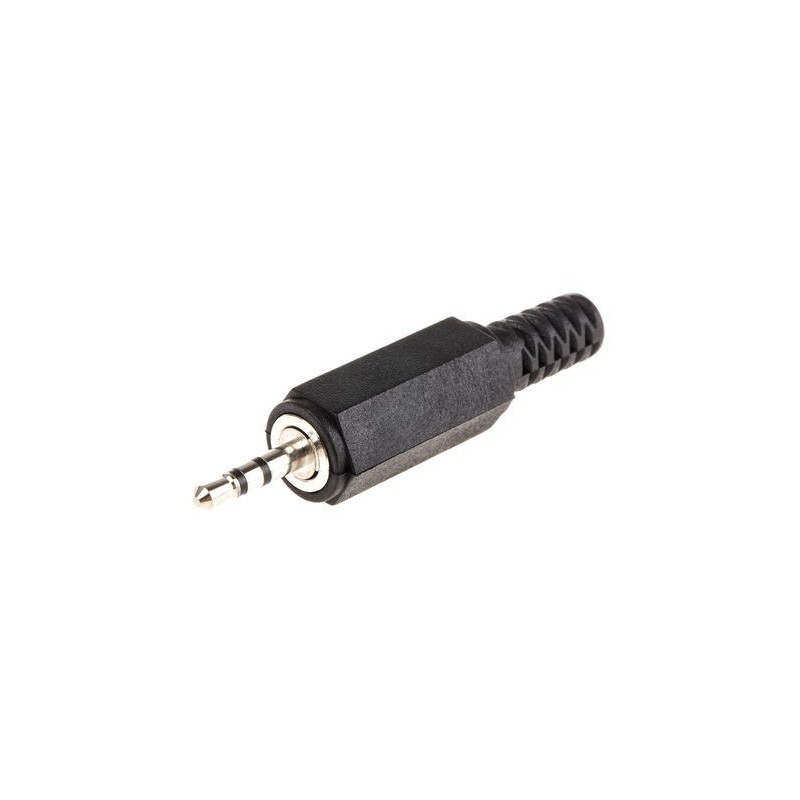

Jack hanstik 2,5mm stereo til kabel montering
measuring range -55 ° C To + 125 ° C
Fits GSM-IO-PWR
Measure 45 x 5 mm
Temperature range -40 to 120 ° C
Moisture range 0 to 99% Target 70 x 5 mm
Fits GSM-IO-PWR
GSM/3G/4G LTE
2 x digital input, compatible dry contact and wet contact, supports EOL connection;
2 x relay outputs (240VAC@3A)
One relay output can be switched on/off by sending an SMS text
The second relay output can be switched on for 4 minutes if inputs are activated
Supports input status recovery, external power failure alarm via SMS texts
Must be programmed with USB cable to PC
9~36VDC supply voltage and power source output for external device
Up to 3 users can receive alarm and daily report SMS
Up to 5 users can receive alarm calls;
Free SMS APP
Rechargeable backup battery and power monitoring alarm
Metal housing, IP30
Operating temperature: -10 - +70°C
Dimensions: 70 x 88 x 30 mm
Wall installation and DIN
Whip antenna with magnetic base 3m cable included
Thermal sensor for mounting incl. 10 m wire
Multi-band 4G LTE Cat.1 controller, logger and alarm
Setup via USB, SMS and HTTP API
USB setup - use USB cable with Mini B male
2 digital "dry contacts". High on contact
2 analog inputs, 0 - 10VDC or 4-20mA input (10bit)
4 relay outputs, COM, NO and NC
1-Wire input for up to 8 Teracom sensors
1 x RS485 for max. 8 MODBUS RTU sensors
Data logger with 70,000 logs
Upload data to HTTP/HTTPS Post in XML/JSON
SMS alarm and Email alarm to 5 recipients
Push mode – XML data is sent via HTTP Post to a remote server. Responses from server may contain relay setup.
10 to 28VDC, 370mA @ 12VDC - additional PSU
Dimensions: 158 x 119 x 34 mm
Weight: 470g
Temperature: -20 - +55°C
CPU: 720Mhz/ 4 Core/2GB/Linux v.5.10
10/100 ethernet connection
2 x USB to USB camera, USB FLASH, USB HUb
8 x Analog ports
32 x Digital inputs
8 x Isolated digital outputs max. 24Vdc, 15mA
2 x Relay (NC NO COM) max. 10A for AC, 9~30V for DC voltage
LTE slot modem (modem purchased separately)
1 x Audio-Video output & input
SBNP v1, v2c, v3
OpenVPN, SSL, HTTPS
DHCP, HTTP, DynDNS, SMTP, RADIUS, Syslog, NTP server, HTTP request
API
Notification E-mail, phone call, SNMP, WEB to SMS, SMS Link
Logging SD, USB Flash, E-mail, FTP
power supplies single/redundant 24-48Vdc, 230Vac (contact sales regarding versions)
