RS232 Rxtends up to 250 meters over RJ45 cable
Baud rate: 110 ~ 921,600, 8-bit
Use STP (shielded) patch cable - straight through
The network cable must not be connected to the patch panel
1 x 5VDC/1A - the power supply supplies both devices (PoC)
Important: If the distance is long, 2 power supplies are recommended
Important: If the network cable is of poor quality, use 2 power supplies

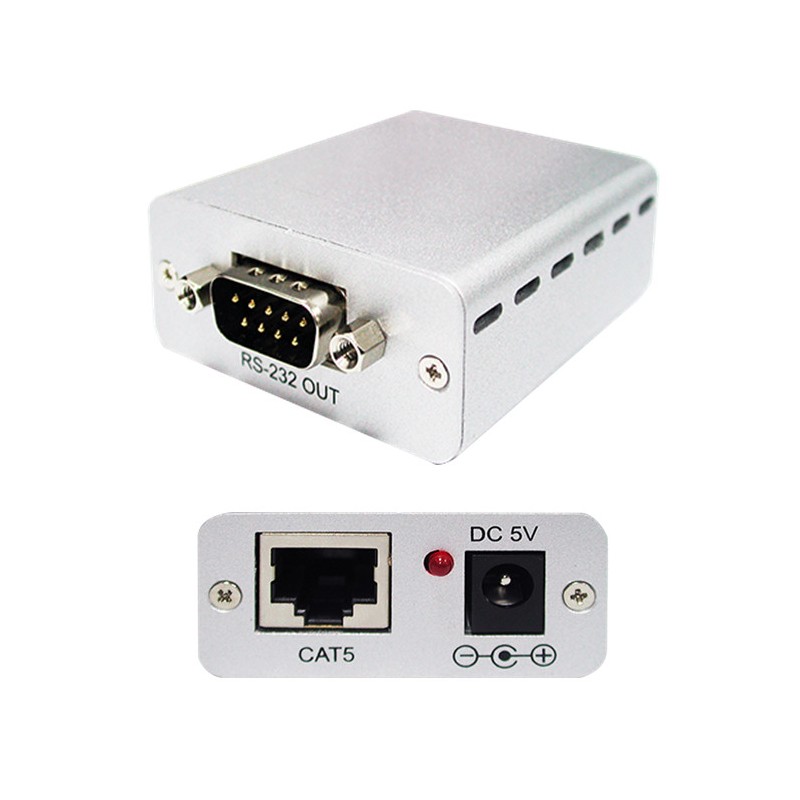

Booster (set) for RS232 with DB9 male / female
Extends any compatible RS232 device up to 250 meters from the source
CAT 6 female connector with screen - for STP cable
Perfect for digital signage
Simple and easy installation
Baud rate: 110 ~ 921,600
Data bit: 8-bit
5VDC/1A
PCI Express card with 2 x isolated RS422/485 ports
Get a RS485 or RS422 or RS232 port on the PC via the USB port
Galvanic isolation (optical) 2KV
DB9 male and screw terminal to 232/422/485 connection
Termination by Jumpers
Baud rate 300bit / s two 921.6 kbit / s
selectable RS232, RS422 and RS485 via DIP switch
Supports Win7 / 8/10 and over as well as MAC
Powered through USB (5V)
Operating Temp . 0 ° to 55 ° C,
2 pcs. DB9 serial ports. DB25 parallel port for PCI Express
Supports HART Short / Long Frame
Supports Hart Burst Mode
Supports Point-to-point or Multi-Drop Hart mode
supports connection of up to 15 Hart slave devices
Allow 2 Hart Master
HC_Tool tool for module configuration and HART communication
support firmware update via Ethernet
PWR / TXRX indication LED
4KV ESD protection
built-in watchdog
Selectable 250Ω load resistance < Br> 4 Hart Channels
Support VXCOMM Technology
Built-in Web Server for Network Setting
