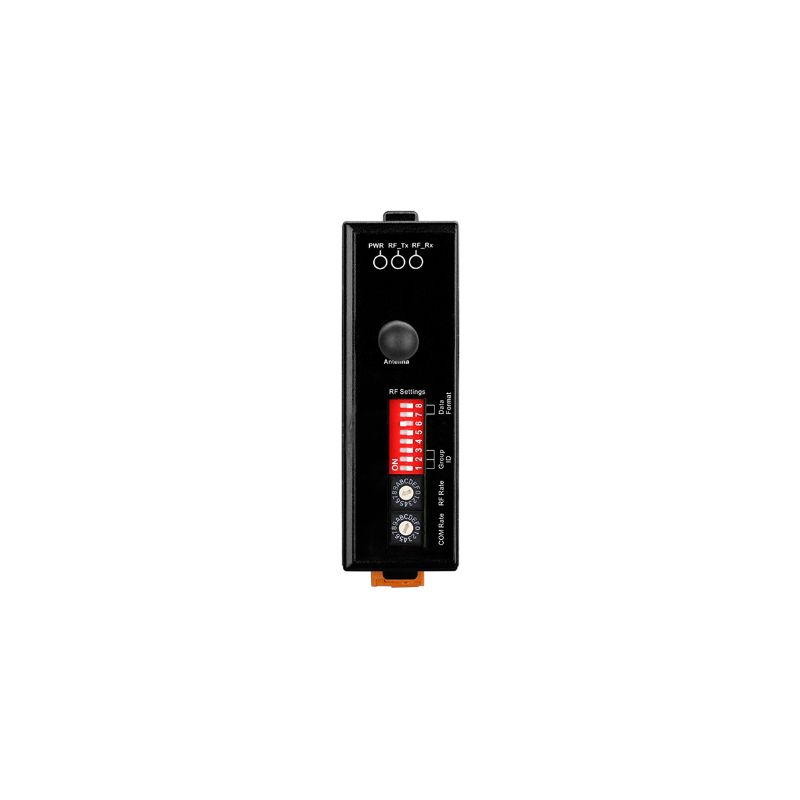

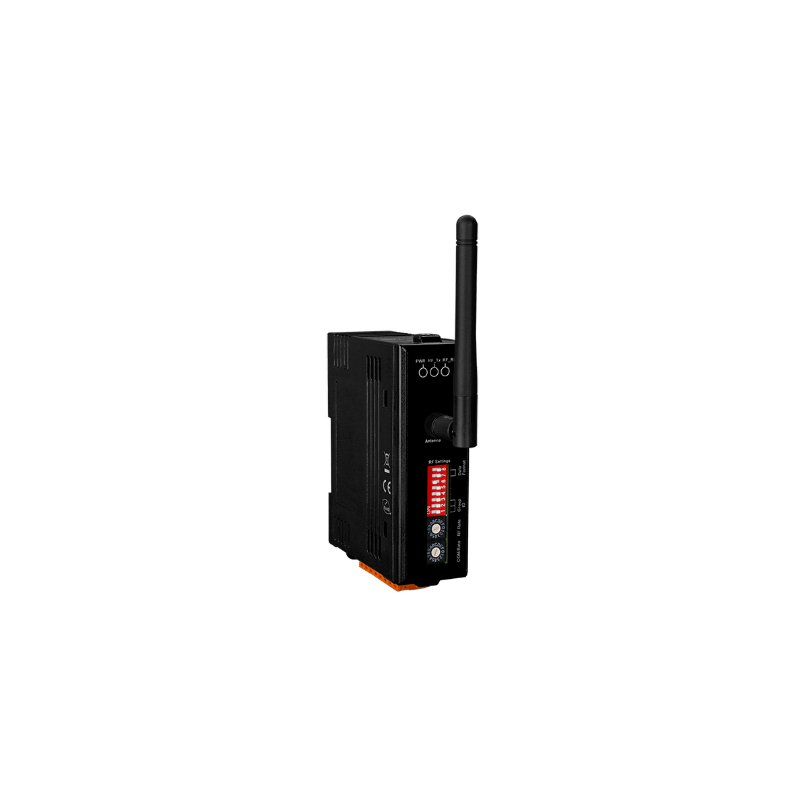

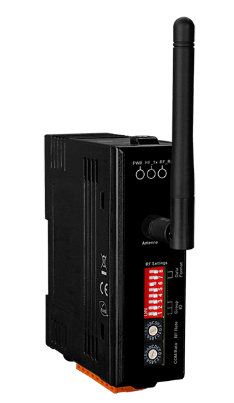

433 MHz Wireless modem with 1 COM port, RS232 or RS485, 1200 to 115,2kbps, Up to 500 meters.
Transparent Wireless RS232 or RS485 link with 2 pcs.

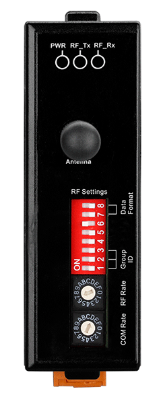

Programmable with DIP- and Rotary switches
433 MHz Radio Frequency
16 RF Channels
0dBi Omni antenna
Baud Rates from 1200 to 115200 bps
Includes a PA switch that can be used to enhance the RF power
Wireless line of sight (LOS) transmission range of up to 500 meters at an RF Baud Rate of 9600 bps
RS232 (RX/TX/GND) and RS485 (2-wire) interfaces
N81, E81, O81
DIN-Rail
Temperatures, -25 - +75°C
TX power: 10dBm to 19dBm
Supply: 10 - 30VDC / 1Watt
Dim: 107 x 83 x 33 mm
1,665.00 kr
Excl. VAT
Quantity
On the way in
close

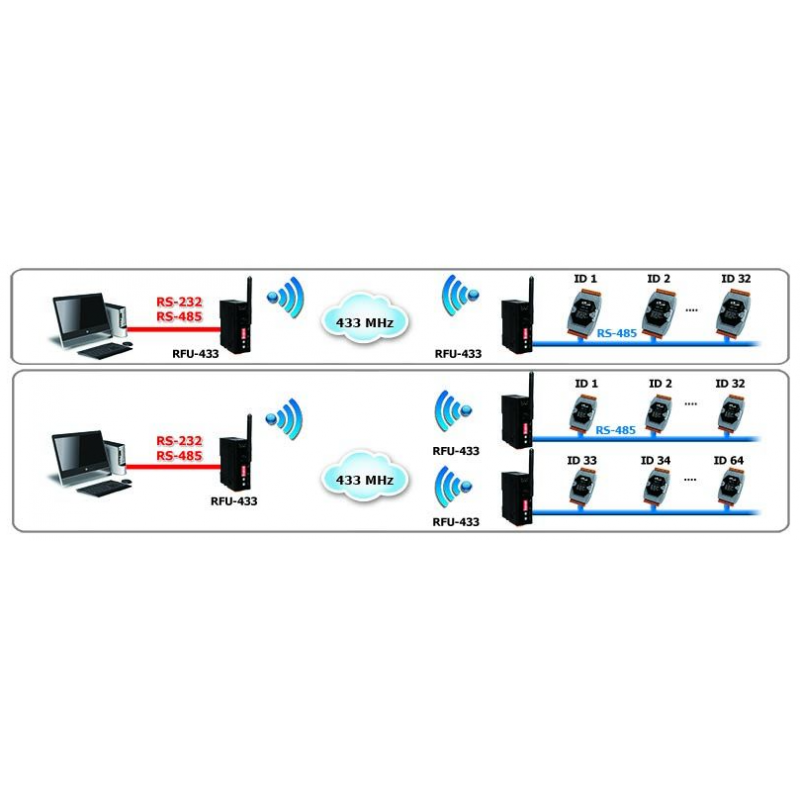

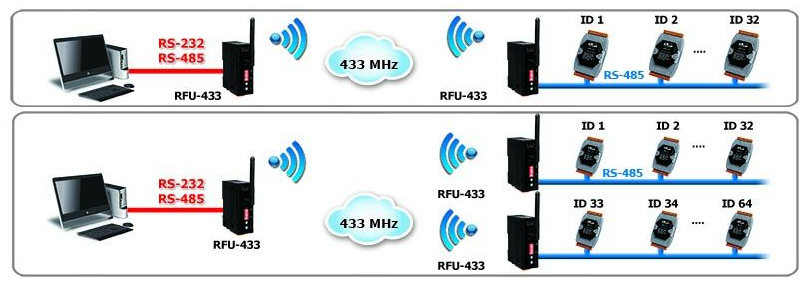

The wireless modem is an RS-232/485 to 433 MHz radio modem that can be used to convert data from an RS-232/485 device to an RF message that can then be transmitted in transparent mode via the 433 MHz ISM frequency band. The modem provides a maximum line of sight (LOS) transmission distance of 500 meters (0.5 km) at an RF Baud Rate of 9600 bps. In order to overcome the interference that may be encountered in harsh environments, the RFU-433 allows the RF transmission Baud Rate to be configured to a minimum of 650 bps, enhancing the capability of the modem to resist noise and other interference. Additionally, the RF channels and Group IDs are adjustable, which is helpful when attempting to avoid interference encountered when two modem networks are adjacent. The 16 RF channels and 8 Group IDs can be configured in order to distinguish and control the different networks. The majority of these configuration parameters can be adjusted using a combination of the Rotary and DIP switches, thereby providing a simple method of maintaining the system if the modem needs to be replaced.
