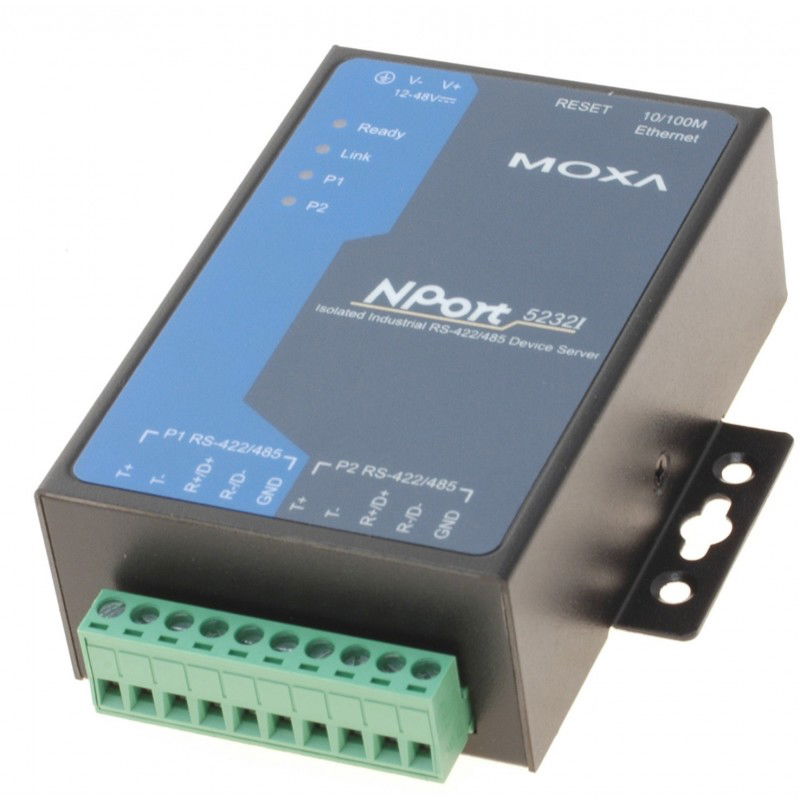

MOXA NP5232I 2 X RS422 / 485 optoisoleret serielportserver

2-port RS422/485 serial device servers, MOXA NP5232I
Compact design for easy installation
Socket modes: TCP server/TCP client/UDP
Easy-to-use Windows utility for configuring multiple device servers
Supports 10/100M Ethernet
Patented ADDC® (Automatic Data Direction Control) for 2-wire and 4-wire RS-485
SNMP MIB-II for network management

ETH2SER485+2I
2,721.00 DKK
Tax excluded
Quantity
On the way in

  • Download PDF
  • file_download Downloads
  • live_help Ask a question

Ethernet Interface:
Number of Ports: 1
Speed: 10/100 Mbps, auto MDI/MDIX
Connector: 8-pin RJ45
Magnetic Isolation Protection: 1.5 kV built-in

Serial Interface
Number of Ports: 2
Serial Standards: RS422/485
Connector: Terminal Block (5 contacts per port)
Serial Line Protection: 2 kV isolation protection (NPort 5232I/5232I-T)
RS-485 Data Direction Control: ADDC® (automatic data direction control)

Serial Communication Parameters
Data Bits    5, 6, 7, 8
Stop Bits    1, 1.5, 2
Parity    None, Even, Odd, Space, Mark
Baudrate: 110 bps to 230.4 kbps

Serial Signals
RS-422    Tx+, Tx-, Rx+, Rx-, GND
RS-485-4w    Tx+, Tx-, Rx+, Rx-, GND
RS-485-2w    Data+, Data-, GND

Software
Network Protocols: ICMP, IPv4, TCP, UDP, DHCP, BOOTP, Telnet, DNS, SNMP V1, HTTP, SMTP, SNTP
Configuration Options: Web Console, Serial Console (NPort 5210/5230 only), Telnet Console, Windows Utility
Windows Real COM Drivers: Windows 95/98/ME/NT/2000, Windows XP/2003/Vista/2008/7/8/8.1 (x86/x64), Windows 2008 R2/2012/2012 R2 (x64), Windows Embedded CE 5.0/6.0, Windows XP Embedded
Fixed TTY Drivers: SCO Unix, SCO OpenServer, UnixWare 7, QNX 4.25, QNX 6, Solaris 10, FreeBSD, AIX 5.x, HP-UX 11i, Mac OS X
Linux Real TTY Drivers: Linux 2.4.x, 2.6.x, 3.x

Physical Characteristics
Housing    Metal
Weight: 380 g
Dimensions: 67 x 100.4 x 35 mm

Environmental Limits
Operating Temperature: 0 to 55°C
Storage Temperature: -40 to 75°C
Ambient Relative Humidity: 5 to 95% (non-condensing)

Power Requirements
Input Voltage: 12 to 48 VDC
Power Consumption: 365 mA @ 12 V, 200 mA @ 24 V
