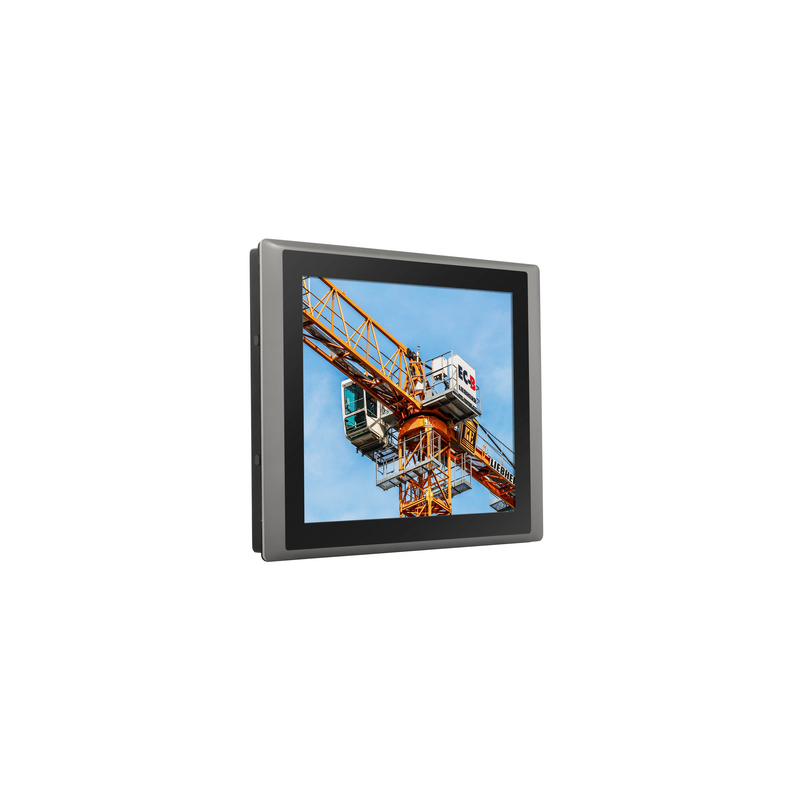

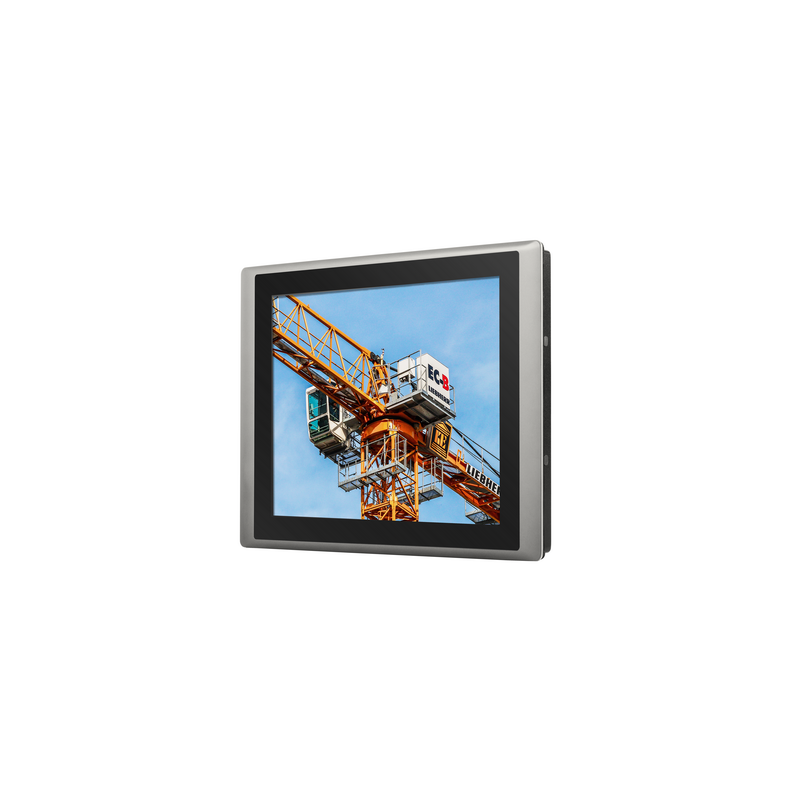

19" High Brightness Modular Panel PC with 8th Gen. Intel® Core ™ U Series Processor

  • Pack

19” TFT-LCD, 1280 x 1024 (SXGA)
Brightness: 1,600 nits
Intel® Core ™ I3-8145ue Dual Core Processor (standard)
Intel® Core ™ I5-8365 quad Core Processor (option)
2x DDR4 SO-DIMM Socket, Supports Up to 2400MHz, 64GB
Integrated USB 3.2 Gen 2 supports up to 10Gbps
M.2 E Key Socket for Wireless Module or Intel CRF Module
Supports Ignition Sensing Function (IGN) (option)
Wide Range Operating Temperature -20°C to 70°C
Designed with Rugged Aluminum Die-casting Front Bezel
Flat IP65 Compliant Front Panel Protection
Panel / VESA / Rack Mounting
9~48VDC via 3-pin Terminal Block

This pack contains

Embedded PC with 8th Generation Intel i3 CPU, 9~48VDC
x 1
19" High Brightness Modular monitor
x 1
IPP19-SOL-GEN8-CDS
Call +45 56 66 20 20 for price
Quantity
On the way in

  • Download PDF
  • file_download Downloads
  • live_help Ask a question


Andet
Fanless Design
Dimensioner

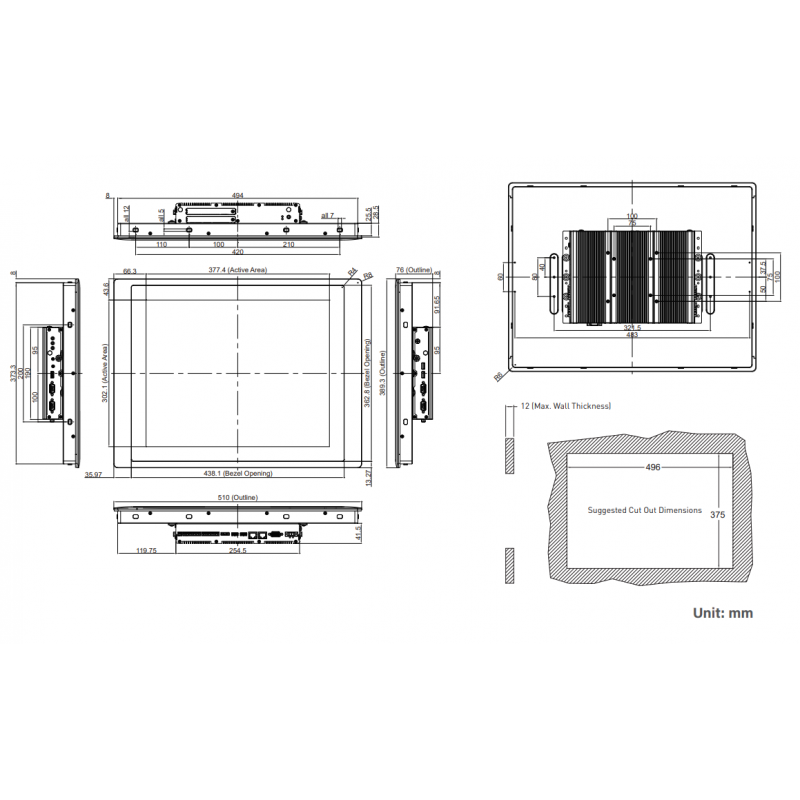

(WxDxH): 510 x 389.3 x 76 mm
DIO
16x Isolated DIO (8x DI/8x DO), 20-Pin Terminal Block
Driftstemperatur
-20°C to 70°C
Forsyning
9~48VDC via 3-pin Terminal Block
Grafik
Integrated Intel® UHD Graphics 620
Hukommelse
2x DDR4 2400 MHz 260-Pin SO-DIMM Socket Supports up to 64 GB (un-buffered and non-ECC)
IP-Tæthed
IP65 Compliant Front Panel
Kontrast
1000 : 1
Lysstyrke
up to 1,600 nits
Netværk
2x GbE LAN, RJ45 - GbE1: Intel I219LM - GbE2: Intel I210
OS SUPPORT
Windows® 10, Linux: Supports by project
Porte
4x RS-232/422/485 with Auto Flow Control (Supports 5V/12V), DB9
Skærm
19” TFT-LCD
Udvidelser
2x Full-size Mini-PCIe Socket, 1x M.2 2230 E Key, 1x Front Accessible, 4x Antenna Hole SIM
Weight
9.2 kg

4 other products in the same category:

12.1 "Industrial Panel PC,...

12.1 "Industrial Panel PC, I3 / I5 CPU, USB, RS232, Touch, 450/500/1000 NITS versions, 9 ~ 36VDC Supply Many options!

12.1 "TFT
CPU Gen.6 I3 Standard (I5 Option)
with or without touch resistive, Projected capacitive 7h Anti Scratch surface
1 x 260-pin SO-DIMM DDR4 2100MHz Max. 16GB
2 x USB 3.0
1x 2½ "SSD Sata Bay
1 x Mini Pcie Slot Full Size
1xDB9 RS232 / 422/485, COM1, 1X RS-232 DB9 COM 2
2 x RJ45 GBE LAN RJ45
IP66 Front
Vesa Mount 100x100
319x245x51.7mm
1 x 3 Pin DC 9 ~ 36vdc
Windows IoT Support

Price Call for price
Product code: IPP12-IX-1000N
On the way in
Quick view

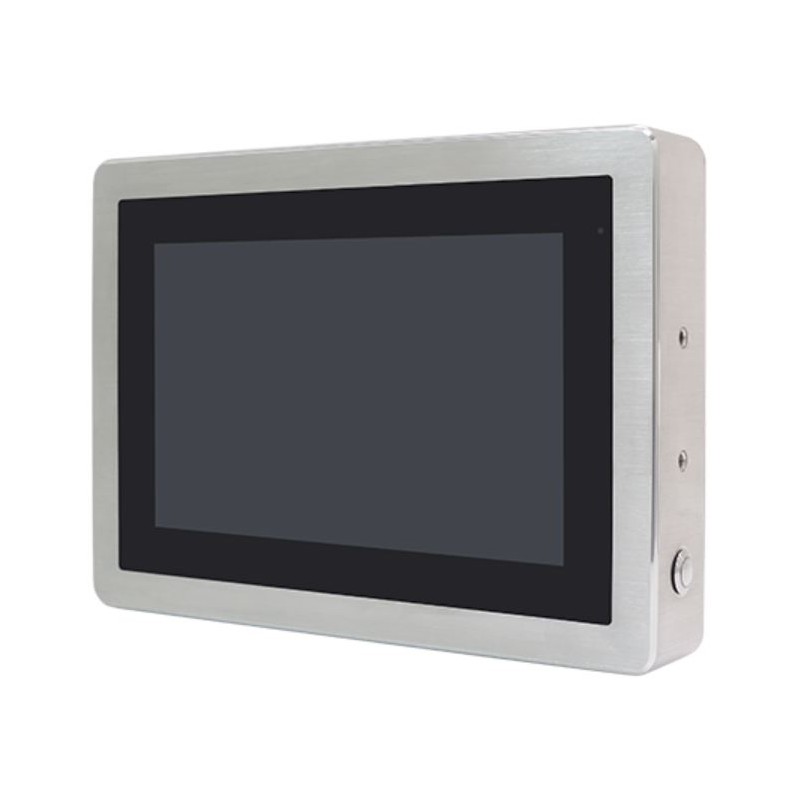

Fanless 12.1" Panel PC with...
