Supporter 8-Port 10/100Tx
2 Gigabit Combo Ports
6 x RJ45 Porte 10/100Tx
2 x 10/100/100 RJ45
2 x 100/1000 SFP Slots
Supporter Auto MDI/MDI-X
Non-Blocking Switching Fabric
8K MAC Address
Surge Protection: 2,000 VDC
ESD Protection: 6,000 VDC
UL Class I, Division 2 Certified
Redundant Power Input Design: 12~48VDC
1 x indbygget relæ Output til Power Failure advarsel
IP30 Rugged Metal Case Design
DIN-skinne og væg montering
Driftstemperatur STD: -10° to 70°C
Supporter 6-Port 10/100Tx and
2 x Gigabit Combo Ports
2 x 10/100/1000Tx RJ45
2 x 100/1000 SFP Slots
Supporter Auto MDI/MDI-X Funktion
Store-and-Forward Switching Architecture
8K MAC Address Table
Surge Protection: 2,000 VDC Support
ESD Protection: 6,000 VDC Support
UL Class I, Division 2 Certified
Redundant Power Input Design: 12~48VDC
Indbygget 1 x Relay Output til Power Failure advarsel
IP30 Rugged Metal
Væg og DIN skinne montering
Driftstemperatur EOT: -40° to 75° C
Supporter 6-Port 10/100Tx and
2 x Gigabit Combo Ports
2 x 10/100/1000Tx RJ45
2 x 100/1000 SFP Slots
Supporter Auto MDI/MDI-X Funktion
Store-and-Forward Switching Architecture
8K MAC Address Table
Surge Protection: 2,000 VDC Support
ESD Protection: 6,000 VDC Support
UL Class I, Division 2 Certified
Redundant Power Input Design: 12~48VDC
Indbygget 1 x Relay Output til Power Failure advarsel
IP30 Rugged Metal
Væg og DIN skinne montering
Driftstemperatur EOT: -10° to 70°C
4 x 10/100/1000Tx IEEE 802.3at PoE+ Compliant with 30W per Port
1 x 10/100/1000Tx
2 x 100/1000 SFP
Auto MDI/MDI-X Function
14Gbps Back-Plane (Switching Fabric)
8K MAC adresse
9.6Kbytes Jumbo Frame
Surge Protection: 2,000 VDC
ESD Beskyttelse: 6,000 VDC
Strømforsyning: 12~36VDC
Indbygget 1 x Relay Output for Power Failure Detection
IP30 Rugged Metal Case Design
Din skinne og væg montering
Driftstemperatur -40° to 75° C
Dimensioner: 46 x 99 x 142mm
Vægt: 1.4 Lb
Industriel accespoint med Atheros XSPAN chipset
IEEE 802.11 a/b/g/n
2 x 10/100Base-TX WAN/LAN Ports
2 x eksterne antenner
WLAN single radio
Tx Power 21 dB for 2.4GHz
Tx Power 18 bB for 5GHz
WPA, WPA2, TKIP, AES
Power Input: 9~48VDC in 6-Pin Terminal Block
Reverse Polarity Protection
IP30 Tæthed
DIN skinne eller væg montering
Driftstemperatur: 0°C to 60°C
Dimensioner: 30 x 140 x 95mm
Vægt: ca 1 KG (0.60 lbs)
WLAN up til 150MBps (Single radio 2.4GHz)
Industriel 1x1 SISO (Single Input Single Output)
IEEE 802.11 b/g/n
2*10/100Base-TX WAN/LAN Port
Chipset: Qualcomm/Atheros AR9331 SoC
Tx Power (EIRP) 21 dB for 2.4GHz
WPA, WPA2, TKIP, AES
Power Input: 9~48VDC in 4-Pin Terminal Block
Reverse Polarity Protection
IP30 Protection
DIN-Rail og vægmontering
Driftstemperatur: -40° to 75°C
Vægt: 1.0 lbs (ca 1 kg)
Dimensioner: 26 x 95 x 75 mm
WLAN up til 150Mbps (Single radio 2.4GHz)
Industriel 1x1 SISO (Single Input Single Output)
IEEE 802.11 b/g/n
2 x 10/100Base-TX WAN/LAN Port
Chipset: Qualcomm/Atheros AR9331 SoC
Tx Power (EIRP) 21 dB for 2.4GHz
5 dBi dipol antenne
WPA, WPA2, TKIP, AES
Power Input: 9 - 48VDC / 2W, 4-pin Terminal Block
Reverse Polarity Protection
IP30 tæt kabinet
DIN-skinne og vægmontering
Driftstemperatur: 0°C til 60°C
Vægt: 1 kg
Dimensioner: 26 x 95 x 75 mm
8 x 10/100/1000Mbps RJ45 med PoE+ (30W)
4 x 100/1000Mbps SFP slot
IPv4/IPv6, og DHCP option 66/67/82
Modbus/TCP protocol for Device Management og monitoring
Konfiguration: Web Console, Telnet, CLI Command
PoE, ping alarm funktion for PoE porte
IGMP v1/v2 for Multicast Traffic Filtering
Udvidet netværk security med IEEE802.1X, SNMP v1/v2c/v3, HTTPS, og SSH/SSL
Port lock function for uautoiseret addresse blokering
Automatisk advarsel via e-mail og via relæudgang
16 x 10/100Mbps RJ45
2 x 10/100/1000Mbit RJ45 (combi)
2 x 100/1000Mbps SFP slot (combi)
7.2 Gbps Back-Plane (Switching Fabric)
Ethernet Ring Redundancy (Recovery Time <20ms)
IEEE 802.1w Rapid Spanning Tree & IEEE 802.1d Spanning Tree Protocol
IEEE 802.1x RADIUS
IEEE 802.1p Class or Service for Traffic Classification & Prioritization
QoS (Quality of Service)
Port Based VLAN & IEEE 802.1Q Tag VLAN
IGMP med Query Mode for Multi-Media applikationer
Port Mirroring for Traffic Monitoring
IP Address Security Management
IP30 robust aluminum kabinet
DIN-Rail eller vægmontering
24 x 10/100/1000Tx IEEE 802.3 af/at, PoE+ Gigabit Ports (30W/Port) + 4 x Gigabit Copper/SFP combi porte
4 x 10/100/1000Tx RJ45 + 4 x 100/1000 SFP Slots
Management: SNMP v1/v2c/v3, WEB, Telnet, Standard MIB
Sikkerhed: 802.1x (Port Baseret, MD5/TLS/TTLS/PEAP Encryption), HTTPS, SSH og SNMPv3
Redundant: Proprietær Ring (Ultra-High-Speed Recovery Time < 20 ms), RSTP/STP (802.1w/1D), MSTP
48VDC power input (46-57 VDC for PoE af, 53-57 VDC anbefales for PoE at) & 2 Relay Outputs
Temperatur: -40° - 75°C - polaritetsbeskyttelse
Overload beskyttesle
1U Rackmonteret design
IP30 tæt
4 x 10/100/1000Mbit, PoE+ (30W) IEEE 802.3at
1 x 10/100/1000Mbit
2 x 100/1000Mbit SFP slot
14Gbps Back-Plane
8K MAC Address Tabel
10.0 Kbytes Jumbo Frame
Overspænding 2kV DC
ESD beskyttelse 6kV DC
Redundant Power Input Design: 12 - 36VDC
1 Relay Output til Power fejl alarm
IP30 Rugged Metalkabinet
DIN-Rail and Wall Mount inklusiv
Udvidet driftstemperatur:-10 -+70°C
4 x 10/100/1000Mbit, PoE+ (30W) IEEE 802.3at
1 x 10/100/1000Mbit
2 x 100/1000Mbit SFP slot
14Gbps Back-Plane
8K MAC Address Tabel
10.0 Kbytes Jumbo Frame
Overspænding 2kV DC
ESD beskyttelse 6kV DC
Redundant Power Input Design: 48 - 55VDC
1 Relay Output til Power fejl alarm
IP30 Rugged Metalkabinet
DIN-Rail and Wall Mount inklusiv
Udvidet driftstemperatur:-40 -+85°C
4 x 10/100/1000Mbit, PoE+ (30W) IEEE 802.3at
1 x 10/100/1000Mbit
2 x 100/1000Mbit SFP slot
14Gbps Back-Plane
8K MAC Address Tabel
10.0 Kbytes Jumbo Frame
Overspænding 2kV DC
ESD beskyttelse 6kV DC
Redundant Power Input Design: 48 - 55VDC
1 Relay Output til Power fejl alarm
IP30 Rugged Metalkabinet
DIN-Rail and Wall Mount inklusiv
Driftstemperatur:-10 -+70°C
8 port 10/100/1000Mbps switch og 2 port 10Gbps SFP+ fiber slots
Store-and-Forward Switching Architecture
16K MAC Address Table
9,216 bytes Jumbo Frame Support
Surge Protection: 2,000 VDC Support
ESD Protection: 6,000 VDC Support
Redundant Power Input Design: 12 - 48VDC
1 relæ output til Power Failure Warning
IP30 Rugged Metal Case Design
DIN-Rail and Wall Mount Support
Temperaturområde: -40° - 60° C
5 x 10/100 / 1000 Mbps Ethernet-porte
Auto MDI / MDI-X Funktion
Store-and-Forward Switching Architecture
10Gbps Back-Plane (Switch Fabric)
8K MAC Address Table
9.6Kbytes Jumbo Ramme Støtte - Overspændingsbeskyttelse: 2kV
ESD Beskyttelse: 6kV
Redundant Strømindgang Design - 12 ~ 48VDC
IP30 Aluminium Skab
DIN-Skinne og Vægmontering
Temperaturområde: -40 ° til 75 ° C
5 x 10/100/1000Mbps Ethernet porte
Auto MDI/MDI-X Function
Store-and-Forward Switching Architecture
10Gbps Back-Plane (Switching Fabric)
8K MAC Address Table
9.6Kbytes Jumbo Frame Support
Surge Protection: 2kV
ESD Protection: 6kV
Redundant Power Input Design – 12~48VDC
IP30 Aluminumkabinet
DIN-Rail og Wall Mount
Temperaturområde: -10° to 70°C
12 x 10/100/1000Mbps + 4 x 100/1000Mbps SFP porte
Auto MDI/MDI-X Function
Store-and-Forward Switching Architecture
8K MAC Address tabel
Jumbo Frame Support: 12.2K
Surge Protection: 2,000 VDC Support
ESD Protection: 6,000 VDC Support
Redundant Power Input Design: 12~48VDC
1 Relay Output til Power Failure Warning
IP30 Rugged Metal Case Design
DIN-Rail and Wall Mount Support
Udvidet temperaturområde: -40° to 75° C
16 ports 10/100Mbit + 2 ports 100/1000Mbit/mini-GBIC Combo
7.2 Gbps Back-Plane (Switching Fabric)
Store-and-Forward Switching Architecture
1 Mbits Packet Buffer
8K MAC Address Table
Wide-Range Redundant Power Design 12 - 48VDC
Transientbeskyttelse 3.000 VDC på Power Line
6.000 VDC Ethernet ESD Protection
IP30 rpbust aluminum kabinet
DIN-Rail eller Panel monterbar
16 ports 10/100Mbit + 2 ports 100/1000Mbit/mini-GBIC Combo
7.2 Gbps Back-Plane (Switching Fabric)
Store-and-Forward Switching Architecture
1 Mbits Packet Buffer
8K MAC Address Table
Wide-Range Redundant Power Design 12 - 48VDC
Transientbeskyttelse 3.000 VDC på Power Line
6.000 VDC Ethernet ESD Protection
IP30 rpbust aluminum kabinet
DIN-Rail eller Panel monterbar

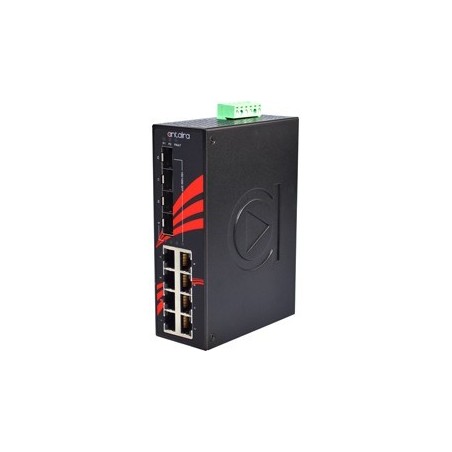

8 porte 10/100/1000 Mbps Fast Ethernet switch + 4 x 100/1000 Mbps SFP slot
Auto MDI/MDI-X funktion
Store-and-Forward Switching Architecture
24 Gbps back-plane (skiftende stof)
8K MAC-adressetabel
9,6Kbytes Jumbo Frame Support
Overspændingsbeskyttelse: 2.000 VDC
ESD-beskyttelse: 6.000 VDC
Redundant strømindgang – 12~48VDC
1 relæudgang til portbrudsalarm
IP30 aluminium kabinet
DIN-skinne og vægmontering
Udvidet temperaturområde: -40° til 75°C
