Stand-alone Data logger via Ethernet
Memory for 70,000 measurements
Can be programmed to log every 3 seconds
Password protected Web based configuration and control
2 x digital input "dry contact"
2 x analog inputs 0 to 10VDC, 10-bit resolution, 10mV display
Multiply and offset for analog input
2 x relay with NO/NC contacts
1-Wire interface for 8 sensors
SNMP v.2 support
SNMP traps up to 5 alarm types
MODBUS TCP/IP support
E-mail to 5 recipients in case of conditional alarm
HTTP API commands
NTP and dynamic DNS support
Remote firmware update
Supply voltage: 10 - 32VDC - purchase PSU

Module with smart temperature and humidity measurement and control

Password protected Web based configuration and control

1-Wire interface for 2 temperature sensors

2 x analog inputs from 0 to 60VDC - 10bit resolution, 100mV display

2 x digital inputs with "dry contact" and "logic level" mode

2 x relay outputs with NO/NC contacts

Email transmission upon alarm

SMTP with authentication (SSL/TLS is not supported)

SNMP v.1

SNMP traps generated alarm

HTTP and XML API commands

Remote firmware update

Supply voltage: 10 - 14VDC

Temperature sensor with Dallas chip - up to 8 pieces on the same bus
1-wire communication to the measuring electronics
With connector for cascade coupling to the next sensor
±0.5°C accuracy from -40°C to +85°C
12 bit resolution
Temperature sensor in the box
Very low power consumption
Each device has a unique 64 bit serial number

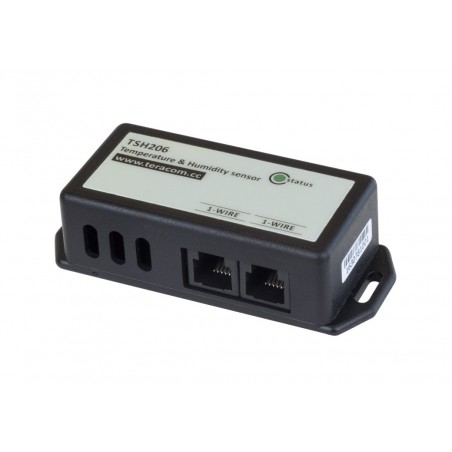

1-wire communication - 2 x RJ11 connectors for daisy chain coupling.
± 3.0% relative humidity accuracy.
12 bit resolution for the moisture measurement.
14 bit resolution for temperature measurement.
calibrated digital output.
Eksellent long term stability.
Each sensor has its own unique 64-bit serial number.

Multi input Data logger for up to 70000 loggings

10/100 Mbit Ethernet

Password-protected, web-based configuration and control

4 digital inputs, compatible with S0 pulse interface

6 analog inputs with 0/10V and 0/20mA

MODBUS RTU interface for up to 24 sensors (registers)

Up to 24 channels for monitoring

Up to 24 independent alarms

SNMP v.2 support - SNMP Trap - alarm notifications

HTTP and SNMP port change - HTTP API commands

Periodic HTTP posting of XML/JSON status files to client-server systems

MODBUS TCP/IP support

Dynamic DNS with DynDNS, No-IP and DNS-O-Matic support

NTP protocol support

Supply voltage: 10 to 28V DC

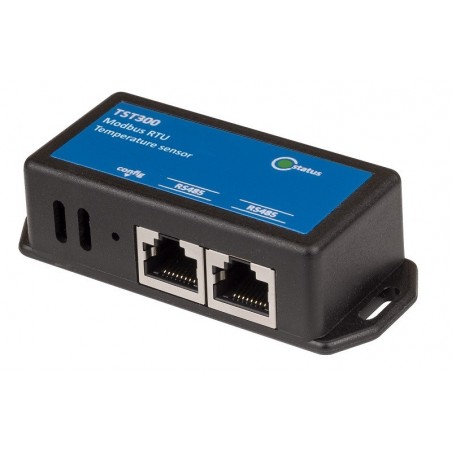

Temperature sensor TST300V2 with RS485 interface

±0.13°C accuracy from -20°C to +60°C

14-bit resolution

2 x RJ45 for daisy chain connection to next sensor

IP20 sealed enclosure

Low power consumption

Modbus address table: see TST300 manual

Log in to danbit.dk and press DOWNLOADS

MODBUS RTU interface

1-wire current meter 0.3 to 15 Amp
For AC or DC current monitoring
Galvanically isolated

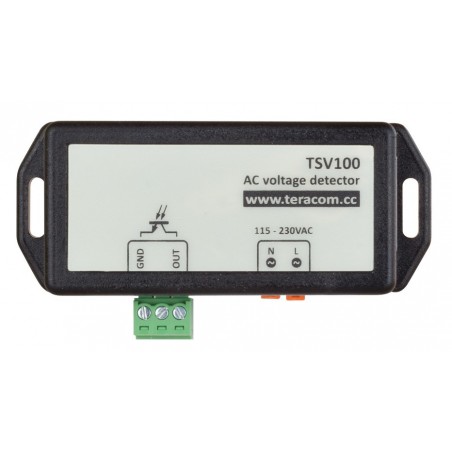

Modul til detektering af vekselspænding - 85 - 250VAC
Threshold +/-8 VAC
Galvanisk isolation mellem AC og digital output Open Collector
2 niveauer med jumper
Lav temperaturdirft
Strømforsynes fra AC siden
