Teracom Systems / Datalogning and conrol

GSM / LTE alarm - 4G
Configuration via USB (Windows program) or SMS
2 x digital inputs with "dry contact" or "logic level" mode
2 x analog input from 0 to 60VDC, 10 bits
2 x relay output with NO / NC switches
1-Wire interface for 4 Teracom temperature and humidity sensors
Input can be navigated with alarm text etc.
SMS alarm - up to 5 numbers
Email alarm - up to 5 email recipients, SMTP with TLS support
1 relay can be activated with calls from up to 100 telephone numbers
Push mode - XML data is sent via HTTP Post to a remote server. Server response may include relay setup.
MQTT 3.1.1 support
Firmware update "on air"
Supply voltage: 8 - 32VDC, 2Watt - additional PSU
Dimensions: 109 x 65 x 32 mm
Weight: 152g

RS485 Modbus RTU kombi sensor
Temperatur: -20 - +60°C +/-0,6°C
Opløsning: 0,1°C
Humidity (fugt): 5 - 95% rH +/- 5%
Opløsning 0,1%rH
IP65 plasthus, meget robust
Op til 32 sensorer på samme RS485 bus
16 bit ved temperatur
12bit ved fugt
Forsyningsspænding: 4,5 - 26VDC / 25mW
Mål: 74 x 66 x 36 mm

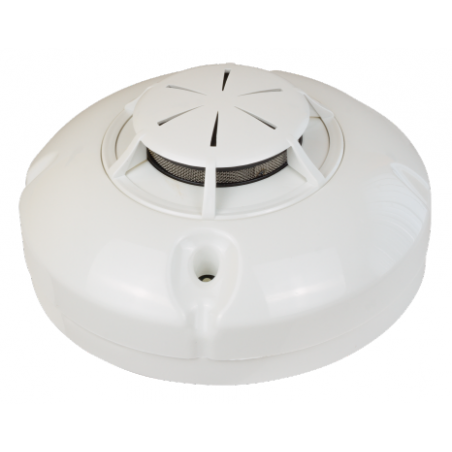

Smoke alarm with a diameter of 15 meters
installation up to 11 meters high
With potential-free relay contact
Smoke sensitivity: EN 54-7:2000+ A1:2002
Operating temperature: -10 to +55 °C
Dimensions: Ø100 mm, h 47 mm
Weight: 100 g

1-wire lysmåler til synligt lys
0 - 83.000lux med 1 lux opløsning
Op til 23bit opløsning
Automatisk fuld skala justering
Kan kaskadekoples via RJ11 stik
Forsynes fra Controller med 5VDC/4mA
Maks. 30 meter kabel
Mål: 85 x 35 x 24 mm
IP30 plasthus med flange

GSM-alarm - ONLT FOR 2G
Setup via USB with Windows setup program, SMS and HTTP API
2 digital "dry contact" inputs
2 analog inputs, 0 - 10VDC - with resistance can be changed to input
2 mA analog inputs, 0 -10VDC or 0-20mA, 10bit (WEB control)
4 relay outputs, NO and NC
1-wire input for up to 8 Teracom sensors
RS485 interface for max. 8 MODBUS RTU sensors
data logger with memory for 70,000 logs
Upload data to HTTP Server
SMS alert to max. 5 recipients
Email alert for max. 5 receivers (SMTP with TLS support)
relay outputs with calls
12 to 24VDC, 350mA @ 12VDC - acquisitions PSU

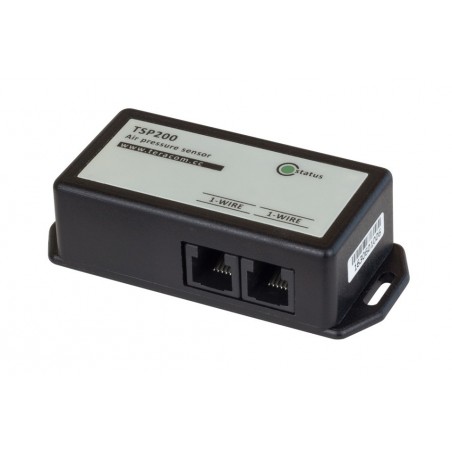

1-wire barometrisk trykmåler, 2 x RJ11 til daisy chain
Relativ præcision på 0.12hPa
Høj elektromagnetisk (EMC) immunitet
Høj linearitet og nøjagtighed
Nem installation
Eksellent langtids stabilitet
Hver enhed har egen unik 64 bit serienummer

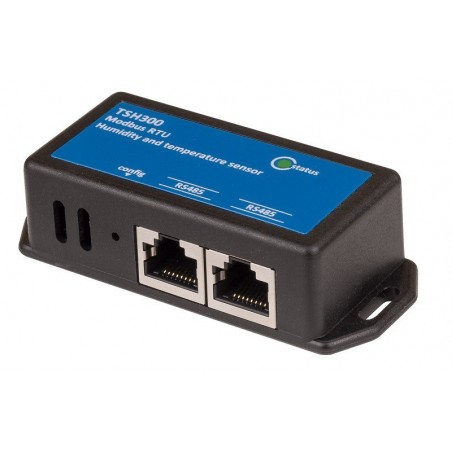

Combination sensor for temperature and humidity measurement
Modbus RTU
2 x RJ45 connector - with daisy chain to the next module
RS485 Bus to Controller.
Up to 32 devices can be connected Controller
3.0% relative humidity measurement accuracy
12 bit resolution for humidity measurement
14 bit resolution for temperature measurement
With the mounting flanges
Excellent long term stability
Each module has its own ID code

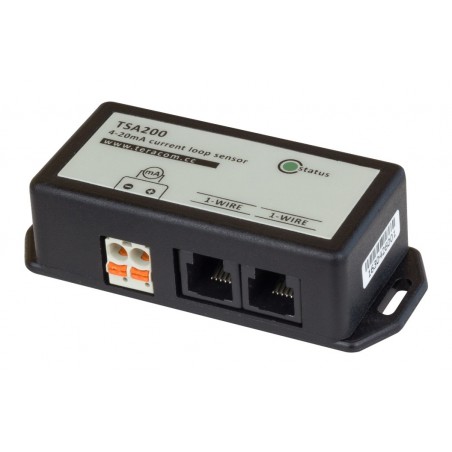

0-20mA 4-20mA Transmitter for 1-wire output

2 x RJ11 for daisy chaining

10-bit resolution

0-20mA and 4-20mA, 0.01mA resolution (+/-2%)

Galvanic isolation

IP30 tight

Good long-term stability

Each device has a unique 64 bit serial number

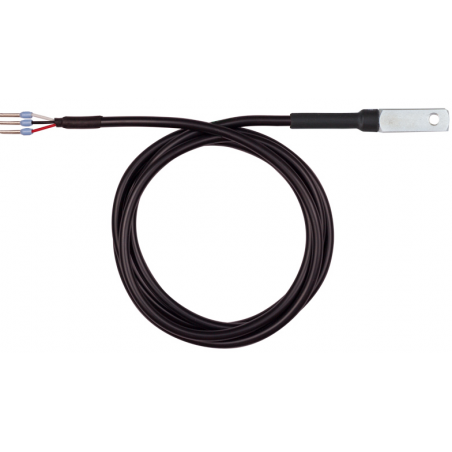

Temperature sensor with Dallas chip - up to 8 pieces on the same bus
1-wire communication to the measuring electronics
± 0.5 ° C accuracy from -10 ° C to + 85 ° C
12 bit resolution
Aluminum head provides low thermal resistance
IP65 close
Very low power consumption
Each unit has a unique 64 bit serial number

Multi-Network Output Module with Galvanic I / O
10/100 Mbit Ethernet Connection
Password Protected WEB Server
2 Analog Outputs with Voltage and Power Generator
0 - 20mA, 4 - 20mA, 0 - 24mA
0 - 5V or 0 - 10V voltage output
4 digital (open drain) outputs with ON / OFF or PWM
2 relays with COM, NO and NC contacts
4 scheduled actions, 1 time or weekly
NTP, SNMP v2, SNMP trap for up to 5 recipients
MODBUS TCP / IP
HTTP upload with current status in XML or JSON remote server file
HTTP API commands in server and client mode
HTTP Post can be sent to 3 servers
DIN rail / wall mounting
Supply voltage: 10 - 32VDC / max 250mA

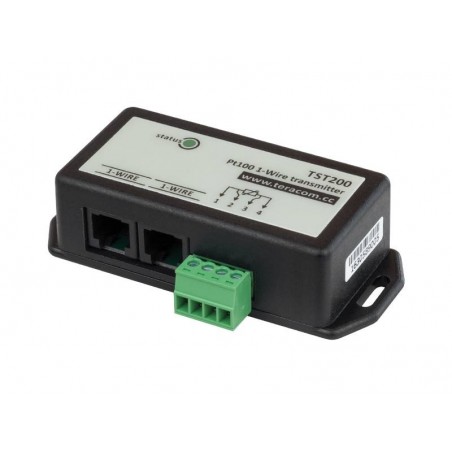

1-wire communication - 2 x RJ11 connectors for daisy chain connection
2 - 3 - 4 wire Pt100 temperature sensor - 4 wire is recommended.
Built-in A/D converter with compensation
24 bit resolution for temperature measurement
Calibrated digital output
Excellent long-term stability
Each sensor has its own unique 64 bit serial number

Remote collection of data, remote meter monitoring, energy management

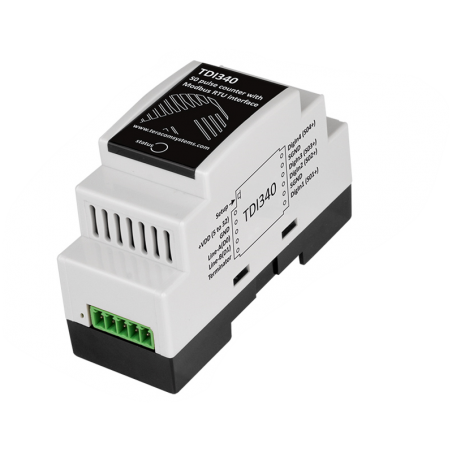

Energy Meter Interface Module with MODBUS RTU
RS-485 interface with up to 63 units per BUS
Built-in 120 ohm termination resistor
Flash memory data and setup
Power supply from 5 to 32VDC, 25mA at 5VDC
Galvanic isolated digital input - 10mS pollinghastighed
Optional inputs: Open / Closed (dry contact and 32 bit counter)
S0 pulse counter applications :
Remote monitoring of electricity meters
Industrial process control
Remote monitoring of gas meters and water meters
monitoring devices with S0 outputs;
process monitoring
DIN rail mounting
Firmware update via interface.
Dim: 35 x 86 x 59 mm

DAQ software til TERACOM Ethernet baserede måleenheder
Brugervenlig WEB interface for nem konfigurering og kontrol
Fleksible bruger adgang og management
Distribueret monitorering af måleenheder i “client” mode
Alarm advisering
Aktivitets log
Grafisk og data visning med stor visualisering
Nem adgang til rå-data, tabeller, eksport in .csv format (kommasepareret)
Database management
Sende kommando til kontrollere in “server” og “client” mode
Kommando status log

Get your free license key from Teracom
DAQ software for Teracom Ethernet-based measuring devices
User-friendly WEB interface for easy configuration and control
Flexible user access and management
Distributed monitoring units in "client" fashion
Alarm notification
Activity log
Graphics and data display with large visualization
Easy access to raw data, tables, export in CSV format (comma separated)
Database management
Send command to check in "server" and "client" mode
command status log

Web based data collector module with built-in Web server
4 x digital input dry - External contact without voltage
4 x analog inputs with 0 to 60vdc - 10mv resolution
multiplier and offset for analog inputs and sensors
1-wire for a maximum of 8 sensors (16 parameters)
4 x Powerful relay outputs with No / NC Contacts
Modbus TCP / IP Support
SNMP V2 Support with Trap Alarm for 5 Recipients
4 PCS. Forms for real-time control of relay
Specific logical functions for relays
Secured email
XML / JSON and HTTP API commands for Client server
Dynamic DNS support for Dyndns, No-IP and DNS- O-Matic
NTP TimeSync
Supply voltage: 10 - 32VDC - Buy PSU
Dim: 145 x 90 x 40 mm

Modul med password beskyttet Web baseret konfiguration
2 x digital inputs med “dry contact” og “logic level” mode
2 x relæ outputs med NO/NC kontakter
Med Pair mellem 2 moduler over netværk med indgang til udgang
Encrypted kommunikation
Manuel eller DHCP netwærk konfiguration
Enheds-ID filtrering
Remote FTP firmware update.
12VDC

Module with password protected Web based configuration and control
1 x digital input with "dry contact" or "logic level" mode
8 x relay outputs with NO / NC contacts
SNMP v.1 support
SNMP traps conditional alarm transmission
E-mail broadcast on alarm
SMTP with authentication (SSL / TLS is not supported)
XML and HTTP API commands
Remote firmware update
Robust DIN- Rail / wall mounting.
12VDC

Module with password protected Web based configuration and control

Instant ICMP watchdog - no echo will restart the module

1-Wire interface for 2 sensors

2 x relay outputs with NO/NC contacts

2 x analog input 0 to 60VDC - 10bit resolution, 100mV display

2 x digital input with "dry contact" or "logic level" mode

Stable IP watchdog monitoring - for equipment restart

SNMP v.1 support

SNMP trap conditional messages

VLAN and MAC address filtering

Remote FTP firmware update.

Supply voltage: 10 - 14VDC - purchase PSU

Stand-alone Data logger via Ethernet
Memory for 70,000 measurements
Can be programmed to log every 3 seconds
Password protected Web based configuration and control
2 x digital input "dry contact"
2 x analog inputs 0 to 10VDC, 10-bit resolution, 10mV display
Multiply and offset for analog input
2 x relay with NO/NC contacts
1-Wire interface for 8 sensors
SNMP v.2 support
SNMP traps up to 5 alarm types
MODBUS TCP/IP support
E-mail to 5 recipients in case of conditional alarm
HTTP API commands
NTP and dynamic DNS support
Remote firmware update
Supply voltage: 10 - 32VDC - purchase PSU

Module with smart temperature and humidity measurement and control

Password protected Web based configuration and control

1-Wire interface for 2 temperature sensors

2 x analog inputs from 0 to 60VDC - 10bit resolution, 100mV display

2 x digital inputs with "dry contact" and "logic level" mode

2 x relay outputs with NO/NC contacts

Email transmission upon alarm

SMTP with authentication (SSL/TLS is not supported)

SNMP v.1

SNMP traps generated alarm

HTTP and XML API commands

Remote firmware update

Supply voltage: 10 - 14VDC
