Danbit have a large selection of screens and distributor anywhere from 6 "to large displays for offices, medical, industrial use mm.
General on 4: 3 or 5:4 aspect ratio:
Often you want a 4: 3 TFT led screen to older solutions where the graphics are not to widescreen. But if you eg. want a resolution is 1280 x 1024 then it a 5: 4 format screen you need. Most people believe erroneously that it should be a 4: 3 but it is 1280x960.
Ex. A screen with 4: 3 format.
Resolution 1280/4 = 320, 320x3 = 960 hence resolution of 1280x960
A screen with 5:4
Resolution 1280/5 = 256, 256x4 = 1024 thus resolution of 1280x1024
But note a screen with 5: 4 can be used to 1280x960, but there comes a slightly wider black stripe on the side of the screen.
23.8’ PCAP Touch Monitor
Size: 23.8”
Panel Mount or Vesa mount
Resolution: 1920x1080
Brightness: 350nits
Connectors: VGA+HDMI
Touch: PCAP10-Point
IP65Front
(Opt: Optical Bonding)
Enclosure: Stainless bezel + Metal Backside
PSU: DC12V/5A
12.1" PCAP Touch Panel Mount Display
VGA + HDMI input
P-Cap Touch, I/O: USB
Operating temperature: -10~60℃ (-25~60℃ with heater solution)
Brightness: 1000 nits
Panel Mount
IP65 front

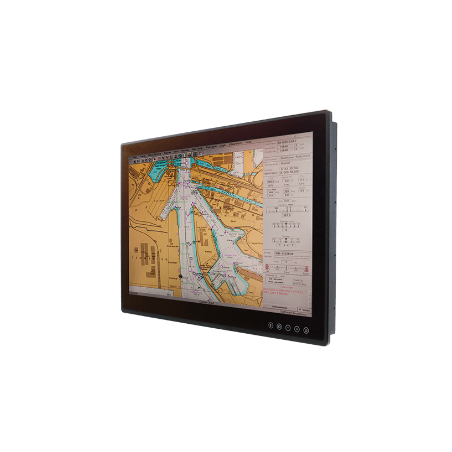

26" DNVGL-CG-0339, IACS-E10, IEC60945 4th marine monitor
350 nits
PCAP touch
Fanless
IP66 on the front
Resolution: 1920 x 1200 - 16:10 format
Active display area: 550 x 344 mm
1 x VGA
1 x HDMI 1.4
1 x DVI-D
Power supply: Terminal block 24VDC
DC input: 9 - 36VDC / 55W typical
Mounting: Panel (Flush) mount with IP66*, VESA100, Bracket mounting
Vibration: 0.7g@DNVGL CG-0339 (Class A)
Shock: 15G, 11ms duration
Optional: Remote control via RS232 D-SUB 9P
DIM: Day Mode, Dusk Mode, Night Mode
Dimensions: 621 x 433 x 86 mm
Cut out dimensions: 596 x 406 mm
Weight: 12.8 kg
19 "TFT Screen
Touch
Vulnerable
IP65 Closed
Stainless Steel Cabinet
VESA Mount
Waterproof Cables
Waterproof Plug Connector at the Base of the Cabinet.
12VDC, AC Adapter
Screen Size 18.5 inches
Resolution 1920x1080
Panel Brightness 1000nits
PCAP touch via USB
1 x VGA
1 x HDMI
12V DC input
Operating Temperature 0°C to 50°C
Resistive Touch Screen (Optional)
Protection Glass w/o Touch Function (Optional)
Optical bonding (Optional)
Screen Size 15,6"
Resolution 1920x1080
Panel Brightness 1000nits
PCAP touch via USB
1 x VGA
1 x HDMI (Optional)
1 x DVI (Optional)
12V DC input
Operating Temperature -10°C to 60°C
Optical bonding (Optional)
19" LCD monitor
Resolution: 1280 x 1024
5:4 format
IP65 front
250 nits
USB resistive Touch
1 x DP
1 x VGA
1 x HDMI
1 x USB to Touch
1 x Audio Input
for Panel mounting OPTION: wall/rack or desktop mounting
Dimensions: 482 x 55 x 380mm (with frame)
Cutout dimensions: 407.1 x 334.6mm
24V DC screw type
Weight: 6kg
65" outdoor solution
Can be delivered as
Monitor: with 2xHDMI, VGA input
Digital signage: 2xUSB2.0, 1x HDMI (input), 1x SD card slot
Android: 2xUSB2.0, 1xHDMI output, 1xRJ45, 1x Wifi, (Optional 4G LTE), Rockchip RK 3288, Arm 1.8Ghz,2GB RAM, 8GB SSD, Android 7.1
Windows: 2x USB2.0, 2x USB3.0, 1xRJ45, 1xWifi, Intel i5 Gen. 10 2.9Ghz, Chipset H510, 8GB RAM, 120GB SSD, win10/Linux
Broghtness 3000~4000cd/m
Support Portrait & Landscape display mode
IP65
-20~50℃
450 nits TFT LCD screen
Resolution: 800 x 600
450 cd / m2 (type) / 600: 1 with LED backlight
1 x VGA (15 pin female D-sub)
1 x PC audio (jack)
1 x DC power plug
12V DC
Operating temperature: -30oC ~ 80oC
Weight: 2.5 KG
10.1" 16:10 Highbright FHD monitor
4k@30Hz
1080p@60Hz
1500 nits
10-point PCAP Touch
1920x1200
Auto dimmer
HDMI or VGA
USB-C both Video and touch
USB cable with screw lock
3.5mm audio output
Supply voltage: 12 -24VDC
VESA 75
Temperature: -20 - +60°C
Dimensions: 251 x 170 x 33
Weight: 820g
21.5” TFT-LCD
1920 x 1080 Resolution
Projected Capacitive Touch via USB
VGA Video Output
Total IP66 Grade with M12 Waterproof Connector
Power Input 9-36VDC
Panel Mount & VESA Mount
316 Stainless Steel
ATEX/IECEx Zone2, Zone22 and C1D2/C2D2/C3 Certified
Support USB 2.0 / SD / MMC / MS Card
Built-in 16MB flash
Double stereo speakers
Automatic playback
Picture: JPG, JPEG, GIF, BMP, PNG
Music: MP3, MP2, MP1, WMA, OGG, APE, FLAC, AC3, RA, AAC
Movie : RM, RMVB, MKV, MOV, M4V, MPG, FLV, PMP, AVI, VOB, DAT, MP4
DC12v, 2A netadapter 100~230Vac is included
194mmx164mmx26mm (WxHxD)

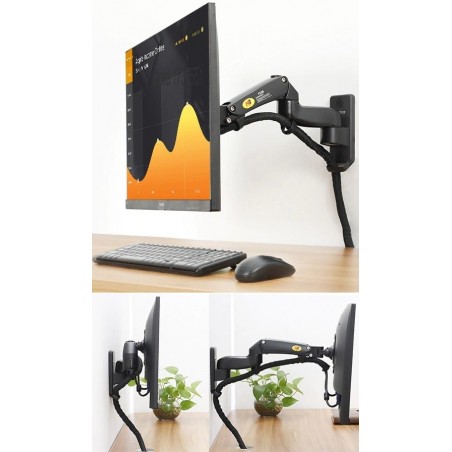

Mounting Type: Wall Mount
Compatible Devices: Monitors, Televisions
Movement Type: Full Motion. Rotate, Swivel, Tilt, Articulating.
Item Weight: 3.6 pounds (~1,6kg)
Official TV/Monitor compatibility size: 17-27 Inches (May fit other sizes, if holes align and weight limit is not exceeded!)
Fitting standard: VESA 75x75mm/100x100mm hole spacing
Max load: 2-7kg (4.4lbs -15.4lbs)
Wall to Screen stretch distance: min 85mm, max 385mm
Swivel: 180° each direction left/right
Tilt: 50° down / 35° up
Rotation: 360°
Lifting distance: 0-155mm
Material: Stainless Steel
Color: Black
Can be made as a monitor or panel PC, contact us regarding opportunities.
Projected capacitive touch
HDMI, Displayport, VGA input
Dimension (W x D x H) 550 x 343.7 x 63.3
Weight 7.16 kg
One piece and slim frame design
Mounting flat / Standard / VESA / Rack Mount
Pre-installed mounting bracket with adjustable design (supports 11 different adjustment steps)
Front panel IP65 compliant * According to IEC60529
Operating temperature 0°C to 70°C
Power input 9~48VDC
EMC CE, UKCA, FCC, ICES-003 Class A
UL, cUL 62368-1 (pending)
7" 16:9 Ratio LCD
800x480 Resoliution
Kapacitive Multi-Touch via USB
Lysstyrke: 1000 nits
Videoindgange: HDMI, VGA, Composite
Drift Tempeture: -20 til 60 °C
DC indgang: 7-36VDC
VESA 75 Montering
Option: Automatisk lysstyrke
23.8" TFT-LCD Monitor
16:9 LCD with PCAP Touch
Brightness: 1000 Nits
50,000 HRS LED Backlight Life
Resolution 1920 x 1080 (FHD)
design with aluminum Die-Cast Frame
IP66 Front panel
video input: VGA, DVI-D, HDMI, DisplayPort
USB (default) or RS232 (option) for touch
Power supply: 3-pin 9 ~ 36VDC ( Not included)
Operating temperature: 0 ~ +60°C
24 "Monitor with foot (can be tilted).
TN LCD Panel, LED rear lighting.
1080p (1920 x 1080) Full HD
View Angle: 170 ° V, 160 ° L
1 x DVI.
1 x VGA.
3.57 kg
VESA100
Dimensions: 56.7 cm x 20.68 cm 42.22 cm
15" 1600nits Open Frame Monitor for installation.
15" TFT LCD, panel
15" sunlight readable, high brightness (1,600 nits)
Resolution: 1024 x 768
LED backlight
High contrast ratio (1000:1)
Wide temperature range (-20°C~70°C)
12VDC
Low power consumption
BL MTBF: 70,000 hours
Siemens 6AV7862-2BE00-0AA0
DEMO MODEL - minor impact damage in the aluminum frame (corners)
19" HMI monitor with LED backlight 24V DC
Panel mounting
Widescreen display
Resolution: 1366 x 768
2 x USB 2.0
1 x VGA
1 x Display port (DP)
1 x USB touch interface
IP65 (front)
LED backlight
Touch: analog resistive
Mounting: VESA 100 x 100
Supply voltage: 24V DC
Operating temperature: 0 - 45 degrees
Dimensions: 473 x 297 mm
Mounting plate dimensions: 455 x 279 mm
21.5" LCD screen with PCAP touch
IP30
1920x1080 Full HD
16:9
250 nits
1 x VGA
1 x HDMI
1 x Display port
2 x Speakers - 4W
HDCP
Contrast: 1000:1
Response time: 7 ms
Screen angle: horizontal/vertical: 178°/178°, right/left: 89°/89°, up/down: 89°/89°
Capacitive touch, 10 points (HID, only with OS)
USB touch interface
Plug and play
Vesa mounting 100 x 100
Included: power cable, USB, HDMI, audio
Weight: 4.8 KG
490.5 x 370.5 x 220.5mm
power supply: AC 100 - 240V, 50/60Hz
Energy class B
