Monitor/TFT
Danbit have a large selection of screens and distributor anywhere from 6 "to large displays for offices, medical, industrial use mm.
General on 4: 3 or 5:4 aspect ratio:
Often you want a 4: 3 TFT led screen to older solutions where the graphics are not to widescreen. But if you eg. want a resolution is 1280 x 1024 then it a 5: 4 format screen you need. Most people believe...
Danbit have a large selection of screens and distributor anywhere from 6 "to large displays for offices, medical, industrial use mm.
General on 4: 3 or 5:4 aspect ratio:
Often you want a 4: 3 TFT led screen to older solutions where the graphics are not to widescreen. But if you eg. want a resolution is 1280 x 1024 then it a 5: 4 format screen you need. Most people believe erroneously that it should be a 4: 3 but it is 1280x960.
Ex. A screen with 4: 3 format.
Resolution 1280/4 = 320, 320x3 = 960 hence resolution of 1280x960
A screen with 5:4
Resolution 1280/5 = 256, 256x4 = 1024 thus resolution of 1280x1024
But note a screen with 5: 4 can be used to 1280x960, but there comes a slightly wider black stripe on the side of the screen.
Monitor/TFT
Subcategories
There are 164 products.
Active filters

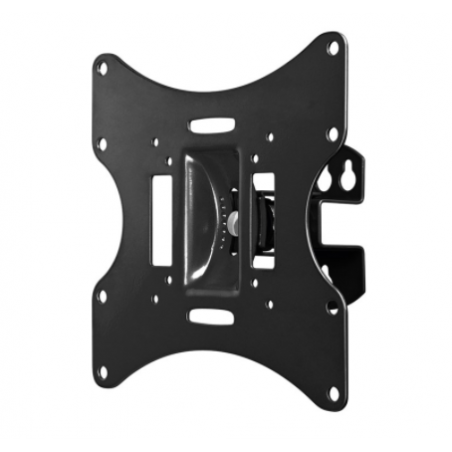

Vægbeslag. LCD skærmbeslag til væg, max 15 kg
LCD arm til væg, max 15 kg
Wall bracket / bracket for screen VESA 100mm x 100mm
Bracket / brackets to the display 100mm x 100mm VESA
Medico screen 17 "LCD TFT with touch, DVD drive and webcam. Axiomtek 17" TFT 380 nits SXGA LCD, 5: 4 format EOL
17 "TFT medical grade Touch Monitor w / resistive touchscreen, DVD-Combo, 1.3 mega pixels camera, AC power adapter.
Reduced price. Limited stock!
Residual: Project Terminal with 8 "TFT Monitor - PC801A
Can check the price of a product EVEN as it shows video and provide product information.
21.5" LCD Panel Monitor, IP65 Front, 1920 x 1080, 250nits, VGA, 16: 9 Format
21.5 "Wide LCD Monitor 16: 9
1 x VGA
250 Nits
IP65 Front
1920 x 1080
Dimensions: 534 x 349 x 66 mm
230vac / 12vdc 2a PSU included.
Vesa75 / 100 and Panel Mount
Option: Resistive Touch, SAW Touch
Option: 1 x VGA, 1 x HDMI
Skærmbeslag, solid LCD arm til væg, max 14 kg
Solidt skærmbeslag i stål
Justeres 180° i begge retninger
Rotere: 270°
Inkl. skruer og beslag (medfølger 2x VESA beslag 75X75mm og 100X100mm)
Max 14 kg
17" industrial TFT LCD monitor with touch, 5:4 format
17 "slimline industrial LCD monitor in steel cabinet
1280 x 1024 - 5: 4 format
OSD
Touch
For panel and VESA mounting
DC12V w / external AC-DC adapter ( 100-240V)
Sort Optoma projektorbeslag til loft (op til 15 kg)
Optoma OCM818B-RU universal projektor ceiling mount
Loftbeslag
Sort flushmonterings adapter til projektor på op til 15 kg
Til roterende, horisontal ophæng (rul/ hæld)
Optoma projektor ES551 DLP,
Optoma ES551 DLP PC 3D Ready Projector
2800 Lumens,
5000:1 Contrast
1 cm DLP Projector
Digital Inputs: HDMI
Opløsning: 800x600 Aspect Ratio:4:3 (SVGA)
Display: 1 cm DLP (1)
12 "LCD panel monitor, IP65 near the front, Transflective and bright, 1000nits, LED backlight VGA / BNC, 4: 3 format
12.1 "IP65 dense LCD display for panel mounting
800 x 600 - 4: 3
LED back light 1000nits
Transflective LCD display provides high brightness in the sun
VGA + composite (BNC / RCA) video input
12VDC power supply
Dimensions: 380 x 310 x 61mm (cut out: 327 x 263mm)
Weight: 3.5kg
7" TFT color display with remote control and speakers 12V and 230V, 800 x 480 16:10 Format
7 "LCD Color Monitor
350cd / m2, 400: 1 Contrast
Resolution: 480 x 234
Image Format: 4: 3
12V / 230V
2 x RCA Composite Video Inputs
Remote Control
Car Power Adapter
7" TFT color display with built in 4 x RCA Composite input, 10 - 32VDC
7" LCD Color Monitor
4 x Camera Input, RCA
5 x Trigger Wires
Video Format: PAL / NTSC / HD (720p / 1080p).
10 - 32VDC. Max 25W < Br> 600 CD / m²
Good for vehicles
Incl. fittings and remote control
Operating temperature: -20 ~ + 70ºC
Option: VGA or HDMI input
15" Industrial Screen, 6-sided IP65 sealed in stainless steel cabinet, touch, VGA, 4:3 format, 9-36VDC
Industrial grade Display in steel cabinet with IP67 connections
15" TFT LCD screen 1024 X 768 - 4:3 format
300 nits and with vandal-proof glass
Housing: Robust IP65 sealed in stainless steel
For VESA 75 wall mounting
Operating temperature: 0° to 50°
IP65 sealed on all 6 sides.
All I/O ports and connectors (protective caps) are military IP-67 waterproof
USB Resistive Touch
9 - 36VDC supply voltage
Optional extra purchase: 1000nits high bright, -30°C to +65°C, Composite
10.4 "Marine approved TFT monitor, touch, 1 x VGA 1 x DVI, IP67, 4: 3 format
10.4 "Marine TFT LCD MONITOR
Full IP67
Resolution 1024 x 768 - 4: 3 Format
1 x VGA
1 x DC Power
1 x S-Video
1 x Composite
1 x J2: Signal Pins (D38999 / 24WD35PN) For military connector
5-wire resistive touch screen
Power input: 12-36V DC Input
For VESA and panel mounting
19 "DNV Marine Approved Panel Monitor, Supply 24Vdc, 5: 4 Format
19 "DNV2.4, IEC60945 Marine Monitor Without Touch
400 Nits
IP66
Resolution: 1280x1024 - 5: 4 Format
Active Display Area: 376.32 (H) x 301.06 (V) mm
1 x composite (RCA phono)
1 x DVI-D
1 x S-Video (SVHS)
1 x RBG (D-SUB)
Power Supply: Terminal block 24V DC
Mounting: Panel (Flush) mount with IP66 *, VESA, Bracket mounting
Anti vibration: 5Hz - 500Hz / 1Grms / 3Axis
Anti shock: 15G, 11ms duration
Optional: AC power signal Std IEC Inlet
Optional: Touch Screen D-SUB 9P Female
Optional: Remote Control via RS232 D-SUB 9P
19" ECDIS DNVGL-CG-0339, IACS-E10 Marine approved Panel Monitor, 24VDC, PCAP Touch, 5:4 format
19" DNVGL-CG-0339, IACS-E10, IEC60945 4th marine monitor
400 nits
Fanless
IP66 on the front
Resolution: 1280 x 1024 - 5:4 format
Active display area: 376.32 (H) x 301.06 (V) mm
1 x VGA
1 x HDMI 1.4
1 x DVI-D
Power supply: Terminal block 24VDC
DC input: 9 - 36VDC / 45W typical
Mounting: Panel (Flush) mount with IP66*, VESA100, Bracket mounting
Vibration: 0.7g@DNVGL CG-0339 (Class A)
Shock: 15G, 11ms duration
Optional: Remote control via RS232 D-SUB 9P
DIM: Day Mode, Dusk Mode, Night Mode
Dimensions: 429 x 382 x 73 mm
Weight: 9.8 kg
19 "TFT, marine approved panel monitor with IP65 density, without touch
19 "TFT Marine Monitor With IP65, No Touch
LED Backlight
250 Nits
1 x HDMI, 1 x VGA, 1 x Composite, 1 x Audio3.5 Jack Connector
Anti- Vibration: 5 - 500 Hz / 1 Grms PTP
Anti Schock: 15G / Peak (11ms)
AC Power Standard IEC Inlet 100-240V AC
Power On / Off Via Front Buttons
VR Brightness Knob Adjustment
Power Mode Status LED Indicator
On Screen Display Control (OSD)
Flush Mount, VESA Mount
Optional: AR Hardness Glass: 3mm Anti-Reflective Protect Glass
Optional: DC Power: Isolate 12V / 24V / 48V / 125V DC Power
Optional: SR-BKT: Stand & Roof Mounting Bracket
Optional: RT-BKT: Rotary Plate Rugged Bracket
Optional: SV-BKT: Sun-Visor bracket
19 ", IP65, 1000 nits, marine approved panel monitor with resistive touch support, 5: 4 format
19 "Alminium Marine Monitor with LED Backlight
Certified: IEC 60945 BV Marine and IACS-E10 Approval Pending
1280 x 1024 - 5: 4
1000 Nits
IP65 Front
2 x VGA
2 x DVI
3 x Composite
1 x RS232
1 x USB
Resistive touch - USB
Input power 9-36V DC
Mount: VESA, flush Mount
