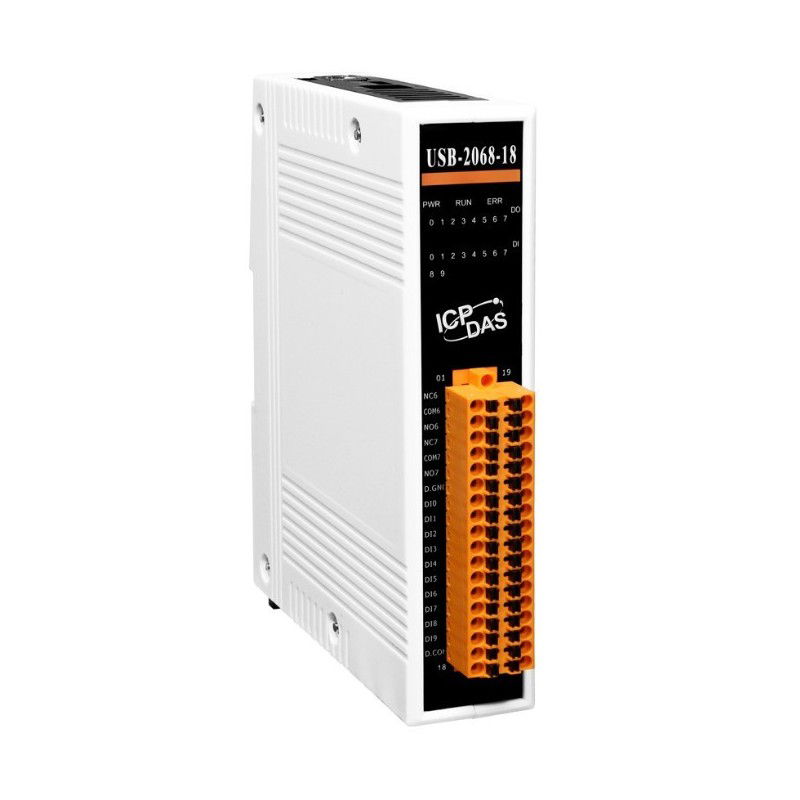

USB I/O Module with 10 x digitale input and 8 relay output

I/O modul
10 x digitale input
8 x relæ output (Type C)
Forsynes via USB
Alle DI kan bruges som 32-bit tæller
8kV ESD beskyttelse
Udvidet temperatur -25 til +75 °
Isolation: 3000 VDC
Watchdog
Benytter ikke driver

USB-DI10DO8
2,015.00 DKK
Tax excluded
Quantity
On the way in

  • Download PDF
  • file_download Downloads
  • live_help Ask a question

8 kanaler type C relæudgange og 10 kanals digitalt indgangsmodul med USB-interface.
Alle digitale indgangskanaler kan bruges som 32-bit-tællere.
Der er også mulighed for at konfigurere power-on.
8 kV ESD beskyttelse (alle kanaler) og isolering af 3750 VDC-moduler (til digitale indgangskanaler).
Har USB funktion. Modulet kræver ikke drivere.

Dimensioner
(W x L x H) 31 mm × 129 mm × 147mm
Driftstemperatur
-25 ~ +75 °C
Indgang
Channels 10 Digital Input / Counter
Interface
USB 2.0 Full-Speed
Isolation
Intra-Module Isolation, Field-to-Logic 3000 VDC
LED
System LED Indicators 3 LEDs as Power, Run and Error I/O LED indicators Yes, 12 LEDs Digital Input/ Relay Output Indicator
Output
8 x Relay Output Channels
Watchdog
1 Hardware watchdog (1.6 second) 1 Software watchdog (Programmable)
