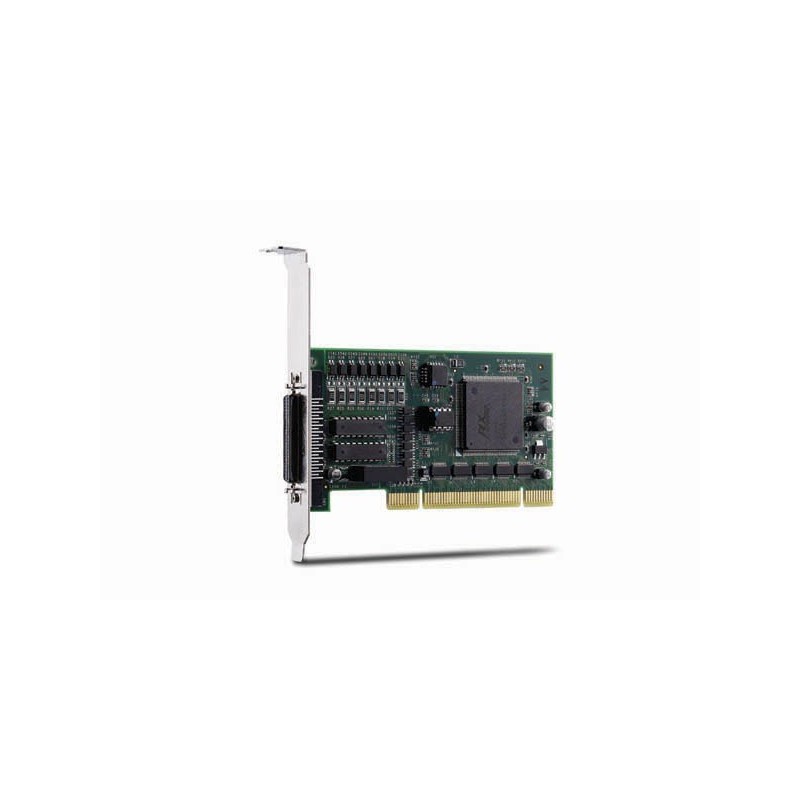

32 kanalers optoisoleret digitale input, 32 kanalers optoisolerede digitale OC-output, PCI
8 af de digitale udgange kan trække op til 500mA pr. kanal
16 optoisolerede indgange, fælles stel (minus) og 16 optoisolerede udgange,
Supports a 32-bit 5 V PCI bus - LOW PROFILE CARD
16-CH isolated digital inputs
16-CH isolated digital outputs - Open-Collector
5000 VRMS optical isolation
Sink current up to 500 mA on each isolated output
OPTO16I16PCI-L (ADLINK"s PCI-7230) is a 32-CH isolated input and/or output cards which provide a 2,500 V optical isolation protection. The wide input range of the OPTO16I16PCI-L makes it easy to sense the status of external devices. The non-polarity characteristic is suitable for a wide variety of industry applications. The OPTO16I16PCI-L device also feature a wide output range from 5 to 35 V, which is suitable for relay driving and industrial automation applications. The OPTO16I16PCI-L also provide two interrupt sources on digital input channels.
8 af de digitale udgange kan trække op til 500mA pr. kanal
PCI card with 96 TTL I/O channels and 3 counters
PCI interface
96-CH digital TTL/DTL inputs/outputs
Emulates 4/2/1 industry standard 8255 PPI (mode 0)
Direct interface with OPTO-22 compatible I/O modules
Output port status read back
On board 8254 timer/counter chip
Programmable interrupt source
Adlink PCI-7296
Antal af ind- og udgange kan udvides til 32
Supports a 32-bit 5 V PCI bus
8-CH relay outputs
8-CH isolated DI
On-board LED indicators for relay status
On-board relay driving circuits
Relay output stats read back
On-board low-pass filtering for DI
Extendable up to 32-CH relay outputs
16 optoisolerede indgange, fælles stel (minus) og 16 optoisolerede udgange,
Supports a 32-bit 5 V PCI bus
16-CH isolated digital inputs
16-CH isolated digital outputs - Open-Collector
5000 VRMS optical isolation
Sink current up to 500 mA on each isolated output
