Optoisolated RS232 for RS485 / 422 converter. Double insulated DC / DC power supply.

transfer mode RS422 - full duplex
max.transfer rate 115 kb/s
max. line length 1 200 m
transfered signals RxD, TxD
selectable terminator 120R
connector RS232 D - SUB 9 pin F
connector RS422 D - SUB 9 pin M
galvanic indication (LED) red PWR, yellow RxD, green TxD
power supply 12V + -10%
input supply max. 1W
dimension 63 x 17 x 34 mm

RS485 & nbsp; recoverable RS232 controller / converter
Link to 3 x RS232 units from 1 x RS485 bus
Baud speed 300 bit/s to 115,200 bit/s
10 V DC to + 30 V DC
Dual watchdog
256 KB SRAM buffer
1 x & nbsp; RS485 address per. serial interface
Operating temperature: -25 ° to + 75 ° C
For DIN rail mounting

RS232 for RS485 converter
Opto-insulated
Galvanic isolation between DC input and RS232 port
Supply voltage: 9 - 50VDC, 10 - 34VAC
Automatic flow control
Up to 1.2km Built-in Termination Resistance - Can be Disconnected
Screw Terminals

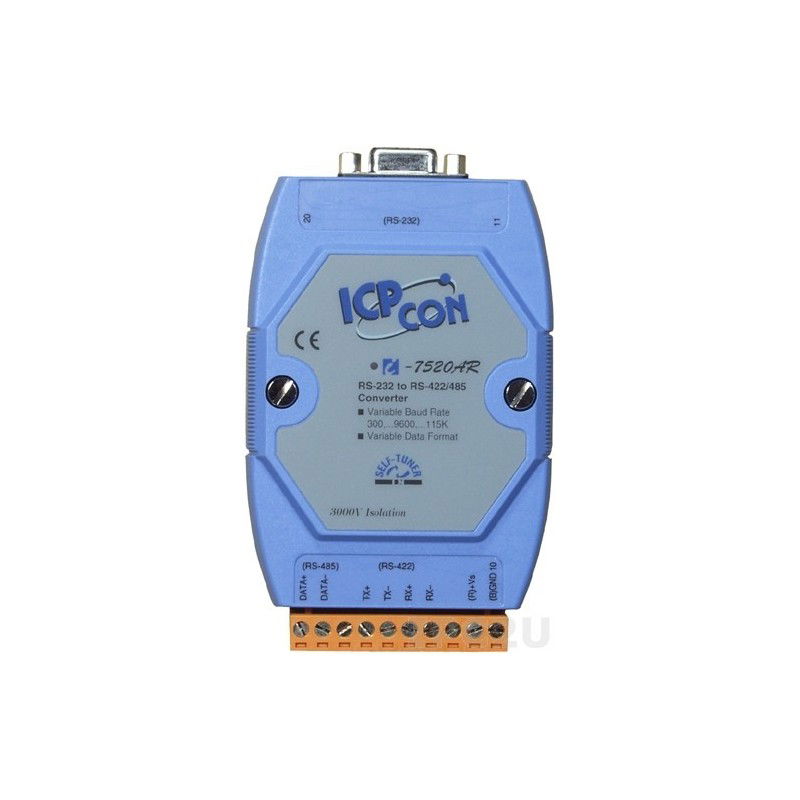

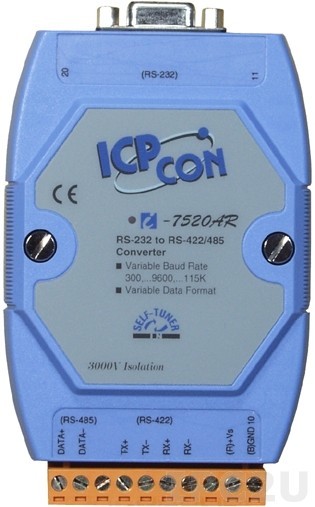

Optoisolated RS232 for RS422 / 485 Converter
3000vdc isolation
Up to 1.2 km on the RS422 / RS485
1.2kbit/s to 115.2 kbit/s, automatic baud rate
DB9 female connector for RS232 Signal
Screw terminals for RS422 / 485 signals
Supply 10 to 30 VDC
