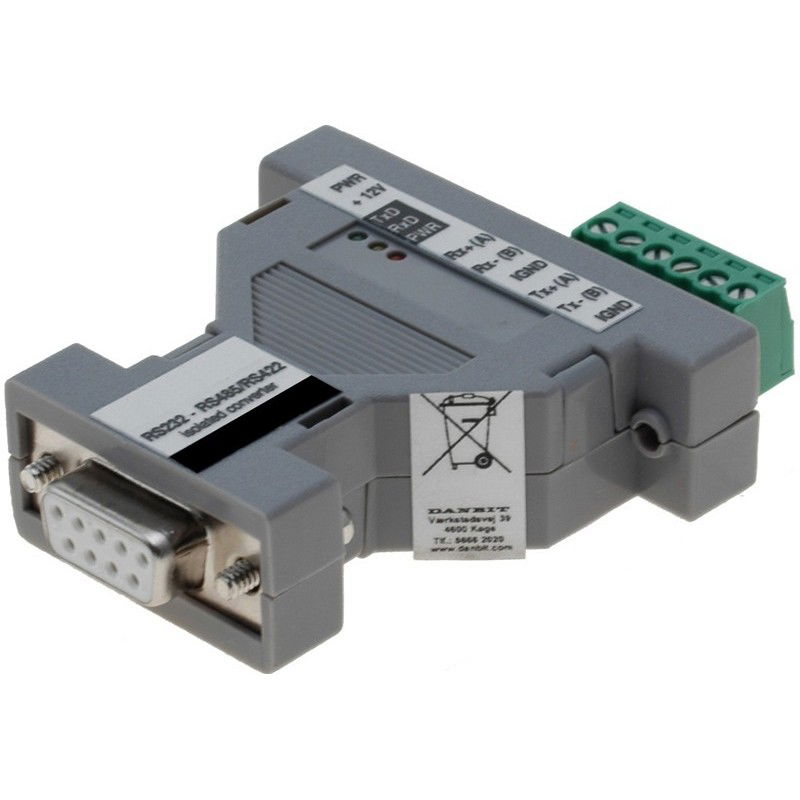

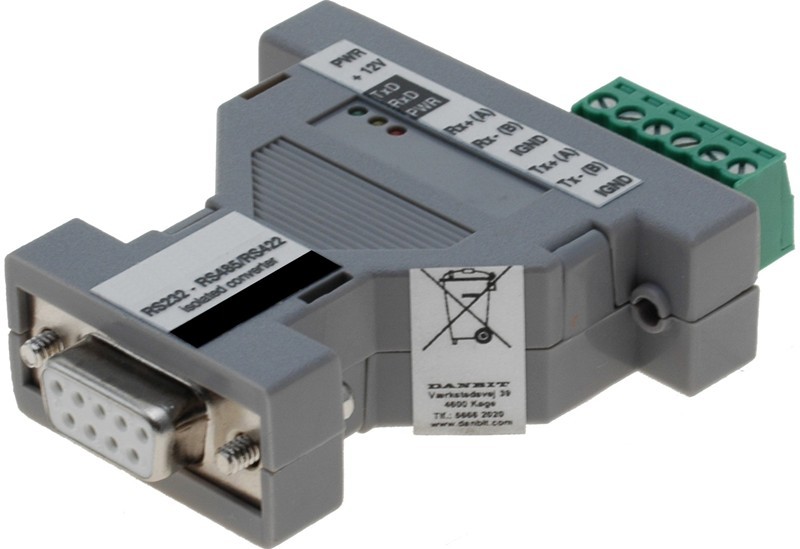

Optiskt isolerad RS232-RS422-RS485-adapter m. DB9 kontakten och skruvplintar

Optiskt isolerad RS232-adapter, max. 115,2 kbps, automatisk flödeskontroll, DB9-kontakt

$118.44
Excl. VAT
Quantity
On the way in
LÆG I KURV
Product number CNV232I485DB9
Get Volume Offer
close

Get Volume Offer


file_download DOWNLOADS
Ask a question
close

Stil et spørgsmål





Download PDF

Specifications

Forsyning 12 VDC, 100 mA strømforsyning medfølger
Isolation 1 KVDC fra T+, T-, R+, R- til 0 (stel)

Signalöverföring: Tx och Rx

Isolering: 1 kVDC från T +, T, R + R till 0 (jord)

Hastighet: upp till 115,2 kbit / s

Avstånd: Upp till 1,2 km på RS422 / 485 s i det och upp till 15 meter RS232 sedan

Isolerade signaler: Tx, Rx och matningsspänningen

Supply: 12 VDC, 100 mA strömförsörjning ingår

Anslutning: RS232: DB9F, RS422 / 485: skruvklämmor

Övrigt: DCE, automatisk flödeskontroll

Andre produkter i samme kategori:

Isolerade RS232-RS422-adapter med galvanisk isolationforRS232 - RS4...
Isolated RS232 to RS422 converter works both ways

transfer mode RS422 - full duplex
max.transfer rate 115 kb/s
max. line length 1 200 m
transfered signals RxD, TxD
selectable terminator 120R
connector RS232 D - SUB 9 pin F
connector RS422 D - SUB 9 pin M
galvanic indication (LED) red PWR, yellow RxD, green TxD
power supply 12V + -10%
input supply max. 1W
dimension 63 x 17 x 34 mm

$167.19
Item Number: CNV232I422DB9
On the way in
ADD TO CART
Quick view
Moxa Transio A53 Serial-to-Serial Converters Optoisolated RS232 for RS485 / RS422 Convert. Danbit A / S
Optoisoleret RS232 til RS-422/485 konverter m. skrueterminal

Moxa A53, DB9 W/ADAPTER

$109.95
Item Number: CNV232I485M+
Physically in stock
ADD TO CART
Quick view
I-7520AR CR ICP DAS - Optoisolated RS232 to RS485 converter
Optoisolated RS232 for RS485 / 422 converter. Double insulated DC / DC power supply.

RS485 for RS232 or RS422 for RS232
optoisulated RS232 for RS422 / 485 Converter
supply voltage is isolated against RS232 page
Supply voltage is isolated against RS485 / 422 page
Automatic Baud rate control

$136.59
Item Number: M485-CNV232R-I
Physically in stock
ADD TO CART
Quick view
Optoisolated RS232 to RS422/RS485 Converter with Self-Tuning
Optoisolated RS232 to RS422 / RS485 converter. SELF-TUNING BAUD RATE ADJUSTING. RS232 is isolated from PSU

Optoisolated RS232 for RS422 / 485 Converter
3000vdc isolation
Up to 1.2 km on the RS422 / RS485
1.2kbit/s to 115.2 kbit/s, automatic baud rate
DB9 female connector for RS232 Signal
Screw terminals for RS422 / 485 signals
Supply 10 to 30 VDC

$133.66
Item Number: M485-CNV232-I
Physically in stock
ADD TO CART
Quick view
Seriel konverter RS422/485 isoleret
RS232 for RS485 or RS422 Converter, Galvanically Isolated, Baud Rate from 50 - 921.6 Kbit/S, MOXA TCC -100I

Industrial RS232 to 422/RS485 Serial Converter/ Repeater with 2 KV Isolation, MOXA TCC-100i

RS-232 to RS-422 conversion with RTS/CTS support
RS-232 to 2-wire or 4-wire RS-485 conversion
2 KV isolation protection (TCC-100I/TCC-100I-T)
Wall and DIN-rail mounting
Plug-in terminal block for easy RS-422/485 wiring
LED indicators for power, Tx, Rx
-20 to 60°C operating temperature

$219.89
Item Number: CNV232I485M-OPT
On the way in
ADD TO CART
Quick view
ICPDAS I-7524 is an addressable RS485 for 3 x RS232 ports.
Addressable RS485 Convert to 3 x RS232, 1 x RS485 / 422 port. Up to 115.2 Baud, -25 - +75°C

RS485 & nbsp; recoverable RS232 controller / converter
Link to 3 x RS232 units from 1 x RS485 bus
Baud speed 300 bit/s to 115,200 bit/s
10 V DC to + 30 V DC
Dual watchdog
256 KB SRAM buffer
1 x & nbsp; RS485 address per. serial interface
Operating temperature: -25 ° to + 75 ° C
For DIN rail mounting

$398.06
Item Number: M485-CNV4RS232
On the way in
ADD TO CART
Quick view
ICPDAS I-7520 is an RS232 for RS485 converter with galvanic isolation (optical)
RS232 for RS485 converter, 1200m, 115.2kBit / s, 3kV isolation on RS232 side, 10 - 30VDC, -25° - +75°C

Optoisolated RS-232 for RS485 converter
3kVDC isolation on RS232 from DC input
ESD protection for RS232 / 485
Baud rate 300 bit / s to 115,200 bit / s
Supports power inputs of +10 V DC to +30 V DC
Operating temperature: -25 ° to + 75 ° C
For DIN rail mounting

$130.74
Item Number: M485-CNV232+I
On the way in
ADD TO CART
Quick view
Opto-Isolated RS232 to RS485/422 Converter with DIP Switches
Opto-insulated RS232 for RS485 / 422 converter, Note: Baud rate and bit are set with DIP switches

Optoisolerede RS232 til RS422/485 konverter
3000Vdc isolation
24Vdc, 1.2W
RS-232 (DB9)
RS485 (2-Wire) eller RS422 (4-Wire)
Speed (bps): 1.200, 2.400, 4.800, 9.600,
19.2 k, 38.4 k, 57.6 k, 115.2 k
RTS control and RS-422 (switchable)

$337.74
Item Number: M485-CNV232
On the way in
ADD TO CART
Quick view
