Addressable RS485 Convert to 3 x RS232, 1 x RS485 / 422 port. Up to 115.2 Baud, -25 - +75°C

RS485 & nbsp; recoverable RS232 controller / converter
Link to 3 x RS232 units from 1 x RS485 bus
Baud speed 300 bit/s to 115,200 bit/s
10 V DC to + 30 V DC
Dual watchdog
256 KB SRAM buffer
1 x & nbsp; RS485 address per. serial interface
Operating temperature: -25 ° to + 75 ° C
For DIN rail mounting

M485-CNV4RS232
2,719.00 DKK
Tax excluded
Quantity
On the way in

  • Download PDF
  • file_download Downloads
  • live_help Ask a question

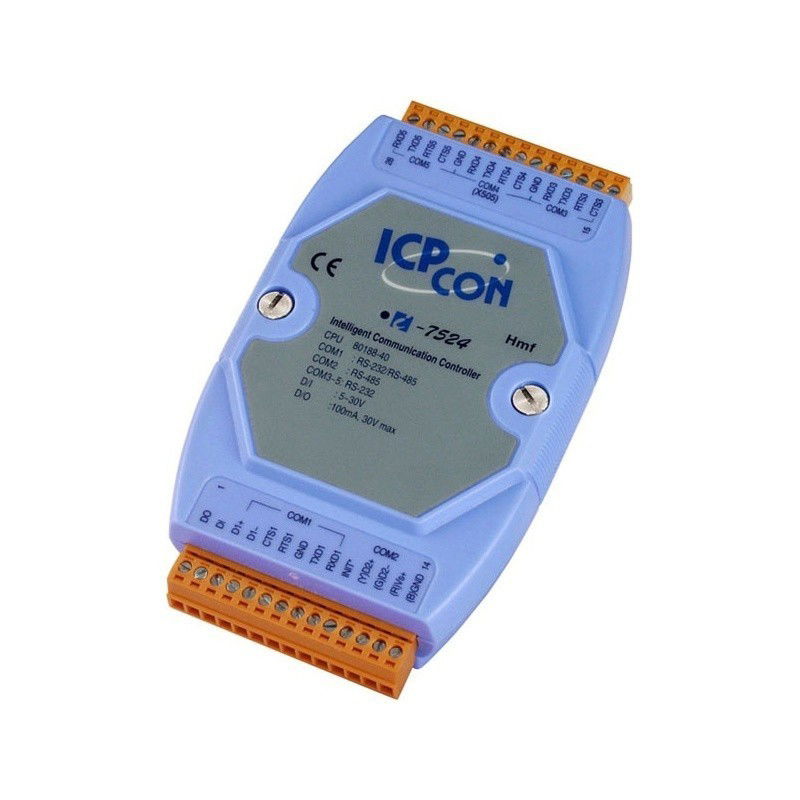

serial inverter. Intelligent Communication Controller with 1 x RS-485 port, 3 x RS-232 port.
RS485 interface with automatic detection of data stream direction, allowing 2-wire 2-way communication

Andet
Self-tuner ASIC inside For RS-485 COM2 , COM1
Beskyttelse
Power reverse polarity protection
Dimensioner
123mm x 72mm x 33mm
Driftstemperatur
-25°C to +75°C
Forsyning
10 - 30 VDC 1,2 W
Hastighed
All ports 115.2K bps max
Input
Input type : non-isolated On voltage level : +1V max (Connect to GND) Off voltage level : +3.5V~30V (Open)
Isolation
No
Output
Output type : Open-collector Output current : 100mA Max load voltage : +30 VDC
Stik
14-pin screw terminal block ( accepts 16~22 AWG wires ); 3.5mm pitch
Watchdog
Yes
