transfer mode RS422 - full duplex
max.transfer rate 115 kb/s
max. line length 1 200 m
transfered signals RxD, TxD
selectable terminator 120R
connector RS232 D - SUB 9 pin F
connector RS422 D - SUB 9 pin M
galvanic indication (LED) red PWR, yellow RxD, green TxD
power supply 12V + -10%
input supply max. 1W
dimension 63 x 17 x 34 mm

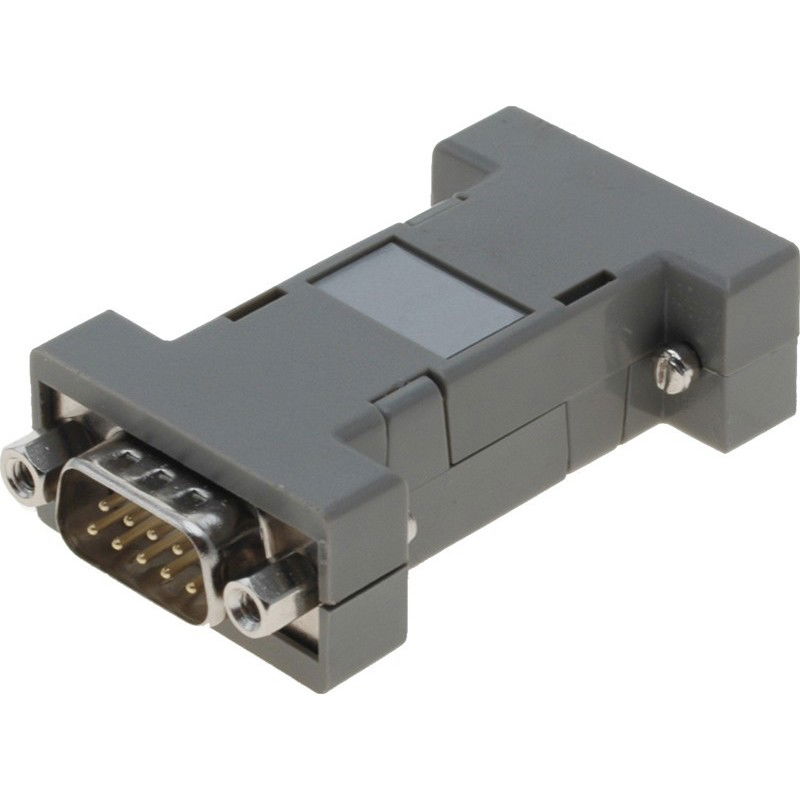

Type: RS232 for RS422 with galvanic isolation and DB9 connector, full duplex
Speed: Up to 460 kbit / s
Distance: RS422: Up to 1.2 km RS232: Up to 15 m
Isolation: 1 kV
Indicator: Tx, Rx and On Mode
Supply: 12 VDC External Power Supply included. Power consumption approx. 1 W
Plug: RS232: DB9 female RS422: DB9 male
Other: Isolates and transfers the following signals: Tx and Rx
Converter / adapter, DB9 female plug to DB25 male plug
RS232-RS422/485 konverter
Hastighed: 230.4 kBit/s
RTS/CTS support
Til DIN og vægmontage
Plug-in terminal block til RS422/485
RS485 for RS232 or RS422 for RS232
optoisulated RS232 for RS422 / 485 Converter
supply voltage is isolated against RS232 page
Supply voltage is isolated against RS485 / 422 page
Automatic Baud rate control
Optiskt isolerad RS232-adapter, max. 115,2 kbps, automatisk flödeskontroll, DB9-kontakt
Optoisolerede RS232 til RS422/485 konverter
3000Vdc isolation
24Vdc, 1.2W
RS-232 (DB9)
RS485 (2-Wire) eller RS422 (4-Wire)
Speed (bps): 1.200, 2.400, 4.800, 9.600,
19.2 k, 38.4 k, 57.6 k, 115.2 k
RTS control and RS-422 (switchable)
