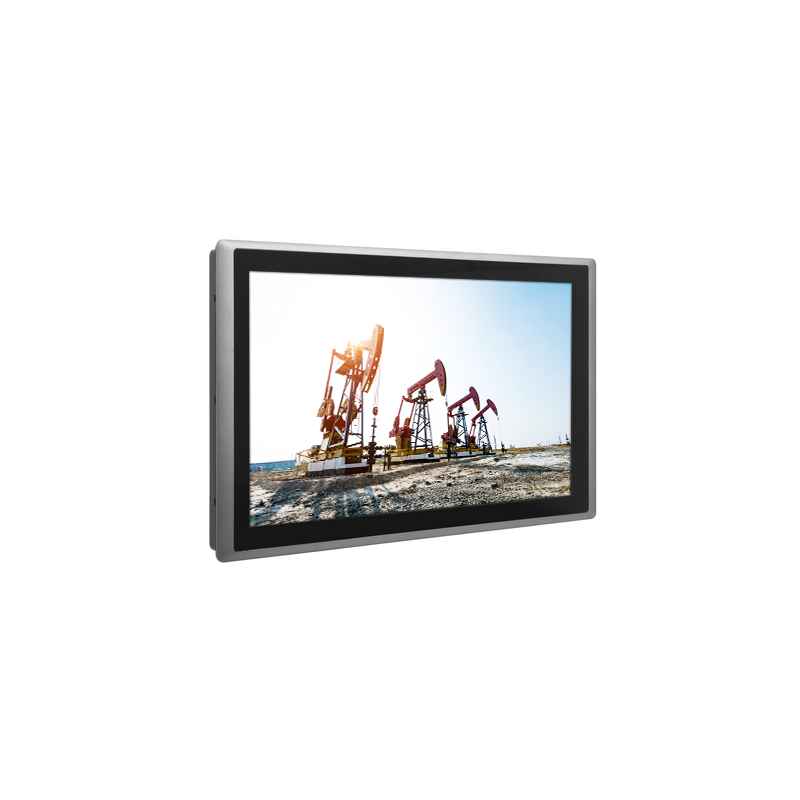

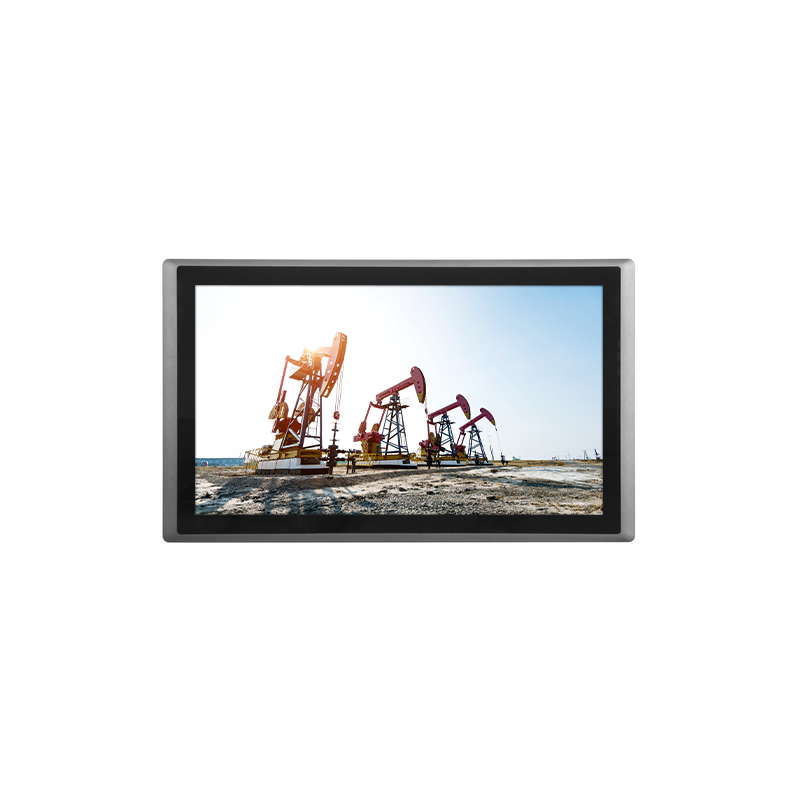

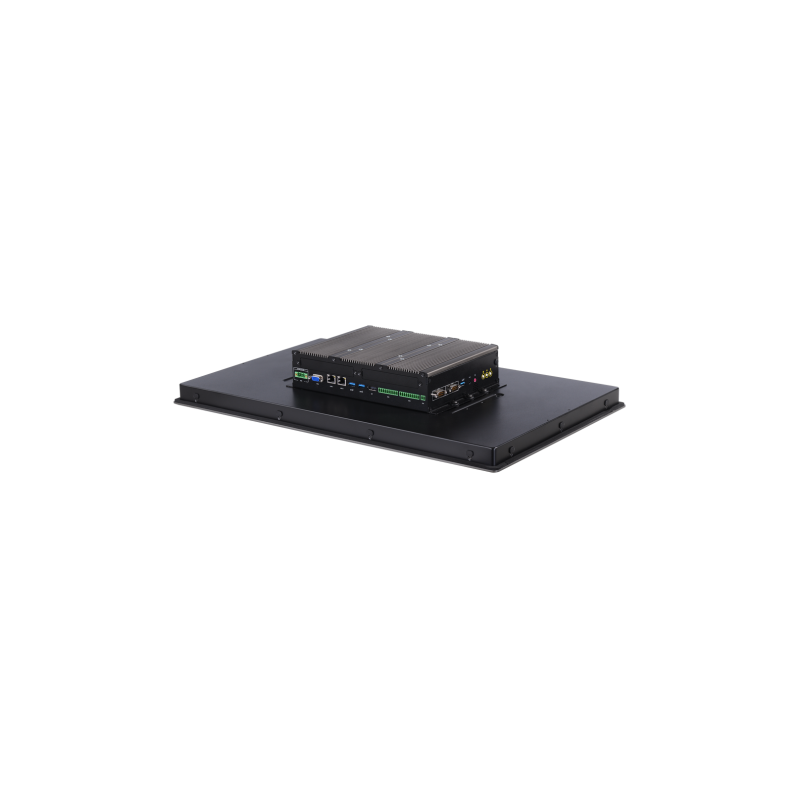

24" TFT-LCD Sunlight Readable, Modular and Expandable Panel PC with 8th Gen. Intel® Core™ U Series Processor

24” TFT-LCD with Ultra-high Brightness up to 1,500 nits
Reolution 1920 x 1080
Onboard 8th Generation Intel® Core™ U Series Processor
2x DDR4 SO-DIMM Socket, Supports Up to 2400MHz, 64GB
Supports Triple Independent Display
Integrated USB 3.2 Gen 2 supports up to 10Gbps
M.2 E Key Socket for Wireless Module or Intel CRF Module
Supports Ignition Sensing Function (IGN) (with optional CFM module)
Supports 2x PoE+ Function (with optional CFM module)
1x PCI or 1x PCIe Slot for Add-on Card Expansion: Max. Length 180mm including Bracket (with optional riser card)
Wide Range Operating Temperature -20°C to 70°C
Designed with Rugged Aluminum Die-casting Front Bezel
True Flat IP65 Compliant Front Panel Protection
Supports Panel / VESA / Rack Mounting

Call +45 56 66 20 20 for price
Quantity
On the way in
ADD TO CART
Product number IPP24-1500-PCAP
Get Volume Offer
close

Get Volume Offer


file_download DOWNLOADS
Ask a question
close

Stil et spørgsmål





Download PDF

Specifications

CPU i3,i5
Memory Type DDR4
Max. Memory Capacity 64
Power Input DC 9~48V
USB 3x USB 3.2 Gen2 (Type A) • 2x USB 2.0 (Type A)
Serial 4x RS-232/422/485 with Auto Flow Control (Supports 5V/12V), DB9
Operating Temp. -20°C to 70°C (with Extended Temperature Peripherals; Ambient with Air Flow)
Antenne 4
Approval CE, FCC, ICES-003 Class A
Ethernet 2x GbE LAN
Forsyning 9 -48Vdc
Grafik VGA, DP
IP-Tæthed IP65 Compliant Front Panel
Lyd Realtek ALC888-GR
M.2 1x M.2 2230 E Key for Socket Wireless Module, Supports Intel CRF Module
mPCIe 2x Full-size Mini-PCIe Socket
OS SUPPORT Windows 10
RAID niveau Support RAID 0/1
SIM kort 1x Front Accessible SIM Socket
Skærm 24" Full HD TFT LCD 250 1920 x 1080 pixels
VESA standard Panel / VESA / *Rack Mounting (*with optional mounting kit)
VGA 1
PCI Express 1x PCI or 1x PCIe x4 Expansion slot (with Optional Riser Card)
RAM 2 x DDR4 max 64GB RAM
Dimensioner Dimension (WxHxD) 605 x 373 x 95.5 mm
Antal Video Udgange 1
Antal LAN Porte 2
Antal USB 5
Antal Serial 4

Build to Order
24” TFT-LCD  sunlight readable panel PC that offers sufficient screen brightness for better image quality in outdoor usage. The panel PC is powered by Intel® 8th generation Core™ U series processor that brings outstanding computing performance boost up to 84% at a TDP of 15 watts, compared to 6th generation Intel® Core™ U series. To enable faster responsiveness and deal with multi tasks with ease, the, is equipped with two DDR4 2400 SODIMM kets for up to 64 GB memory.

For expansion requirements, the Panel PC has 1x PCI/PCIe x4, 1x M.2 2230 E key and 2x full-size Mini-PCIe expansions which can be installed various add-on cards to increase desired functions. Besides, the CS-W124C/P2102E supports Control Function Module (CFM) Technology to install optional CFM modules for increasing power over ethernet and power ignition sensing functions according to user’s specific applications. Featuring rigorous industrial protections, wide range operating temperature (-20°C to 70°C), IP65 dust/waterproof front panel, and wide range DC power input (9 to 48VDC), the Panel PC is appropriate for tough outdoor applications under direct sunlight.

Furthermore, the Panel PC supports patented Convertible Display System (CDS) technology, allowing users to replace display module or computer module on-site easily and thereby reducing maintenance costs and downtime.

Other products in same category:

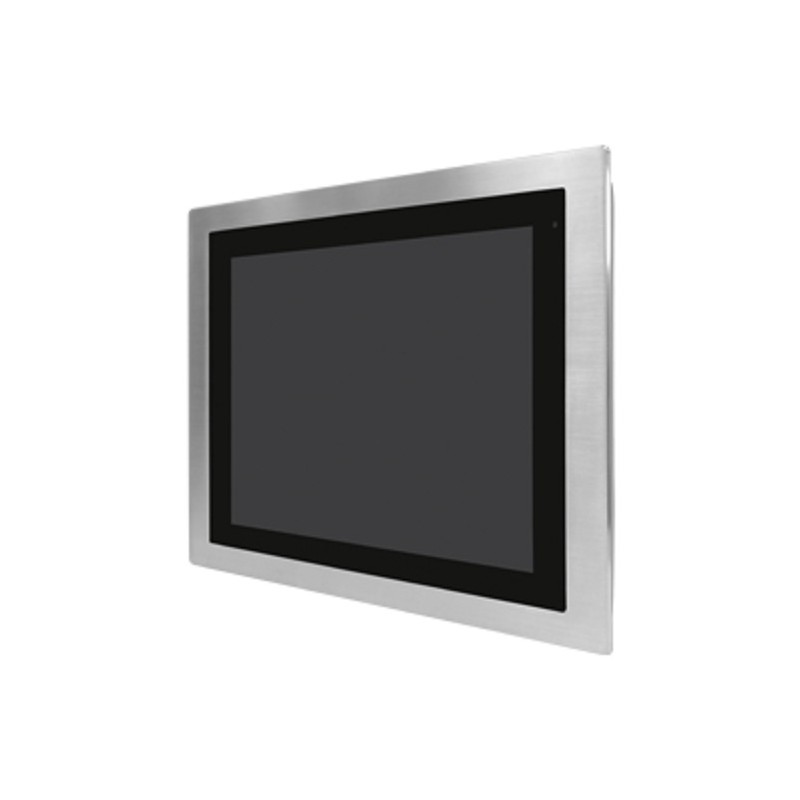

17" panel PC screen with projected touch for use in sunlight 1000nits
17 "Panel PC 6.gen, projected capacitive touch, 1000Nits to sunlight, 9 ~ 36VDC supply IP66 FRONT, the front Smooth

17" TFT-LCD Projected Capacitive Touch.
Intel 6th Gen. Core i3 built-in i3-6100U / i5 (option).
1 x 260Pin SO-DIMM DDR4 up to 16GB 2133MHz.
Flat front panel meets IP66
die-cast aluminum Chassis Fanless design
DC 9 ~ 36V wide range Power Input
Udskæringsmål : 422x331mm
Mål: 439x348x64.8mm (WxHxD)

OPTION: CAN Bus, UPS battery, 4 xUSB
OPTION: OPTICAL bonding for direct sunlight

Call +45 56 66 20 20 for price
Item Number: IPP17-IX-1000NITS
On the way in
ADD TO CART
Quick view
IP65 close 12 "Panel PC fanless with Projected Capacitive Toudh VESA mount
Fanless 12.1" Panel PC with flat front, Celeron 1.83GHz, RS232 / 422/485, 4GLTE, Touch, USB

12.1 "Industrial Panel PC
Intel Celeron N2930 (1.83GHz), 4core, 4 Threds, CPU built
Onboard 4GB DDR3L 1333MHz max. 8GB (optional)
Flat front panel
P-CAP Touch
Fanless Design
DC 9 ~ 36V wide-ranging Power Input
IP66 front
3x USB
1x DB9 (RS232 / 422/485), 1 x DB9 RS232.
Option: high brightness 1000 nits
Option: 4G LTE / Wi-Fi / BT expansion
Option: UPS built-
Option: Isolated RS232 / 485.

13,341.00 kr
Item Number: IPP12
Physically in stock
ADD TO CART
Quick view

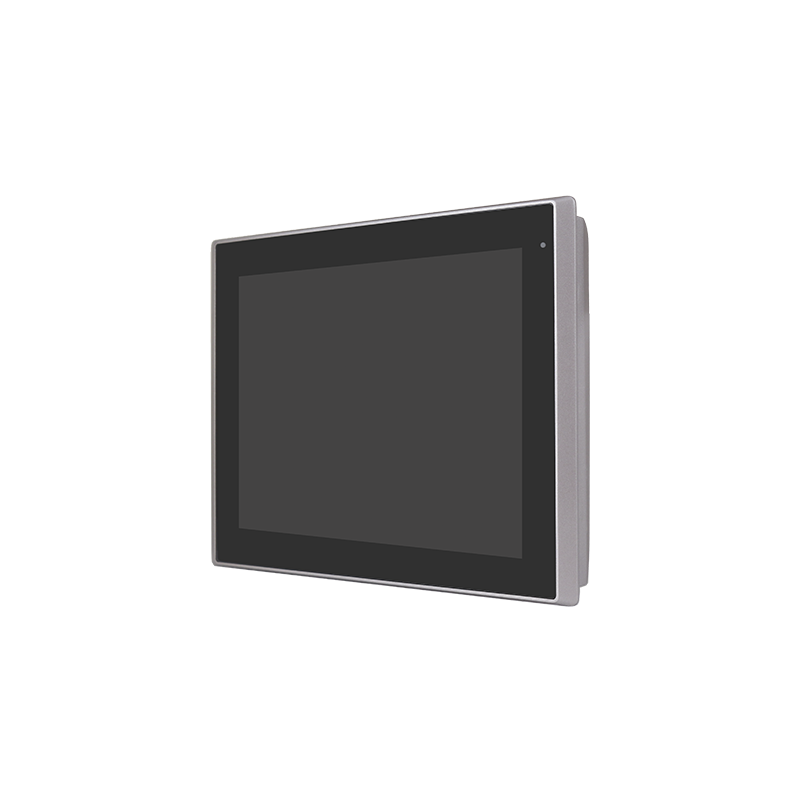

Panel PC 12.1 "I3 / I5 Touch, Sunlight 1000 Nits, RS232, USB, CAN Bus, Built-in UPS, Poe
12.1 "Industrial Panel PC, I3 / I5 CPU, USB, RS232, Touch, 450/500/1000 NITS versions, 9 ~ 36VDC Supply Many options!

12.1 "TFT
CPU Gen.6 I3 Standard (I5 Option)
with or without touch resistive, Projected capacitive 7h Anti Scratch surface
1 x 260-pin SO-DIMM DDR4 2100MHz Max. 16GB
2 x USB 3.0
1x 2½ "SSD Sata Bay
1 x Mini Pcie Slot Full Size
1xDB9 RS232 / 422/485, COM1, 1X RS-232 DB9 COM 2
2 x RJ45 GBE LAN RJ45
IP66 Front
Vesa Mount 100x100
319x245x51.7mm
1 x 3 Pin DC 9 ~ 36vdc
Windows IoT Support

Call +45 56 66 20 20 for price
Item Number: IPP12-IX-1000N
On the way in
ADD TO CART
Quick view

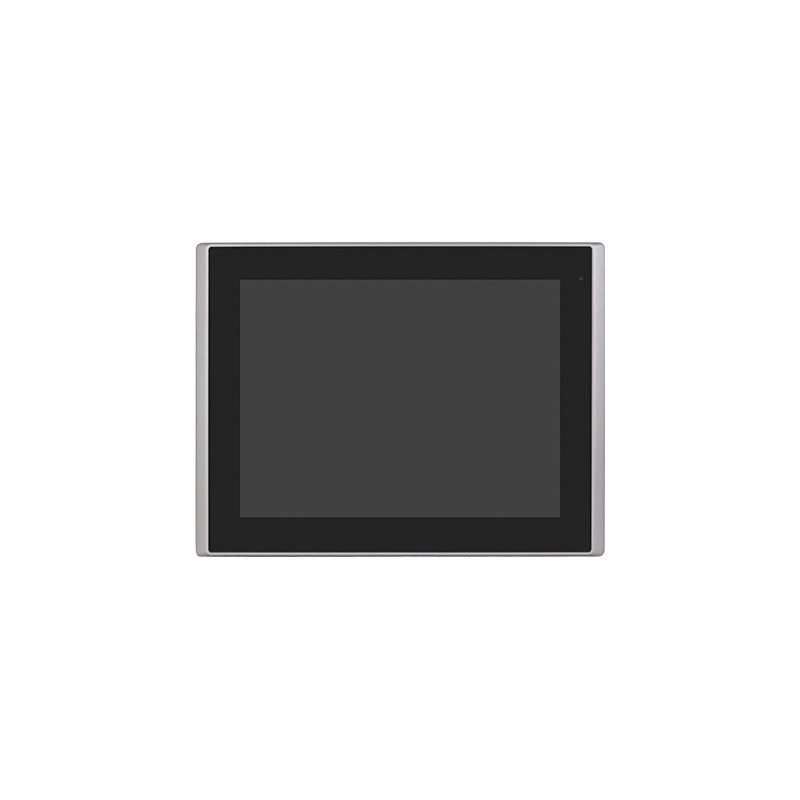

Industrial Panel PC with Touch Screen
Fanless 12.1" Panel PC with flat front, Apollo Lake 1.1GHz Touch Screen

12.1” Industrial Panel PC
Intel Apollo Lake N4200 (1.11 GHz) 4 Core, 4 Threads, CPU built-in
Onboard 4GB DDR3L 1603MHz max. 8GB (optional)
Flat front panel
P-CAP Touch
​Fanless Design
IP66 front
2x GbE LAN RJ-45
2x USB 3.0, 4x USB 2.0 (optional)
1x DB9 (RS232/422/485), 1x DB9 RS232
OS support: Windows embedded 7, Win7, Windows 10 IoT
Opt. 4G LTE/WI-FI/BT extension
Opt.: UPS built-in
Opt.: Isolated RS232/485.
DC 9 ~ 36V  Power Supply

Call +45 56 66 20 20 for price
Item Number: IPP12+
Physically in stock
ADD TO CART
Quick view

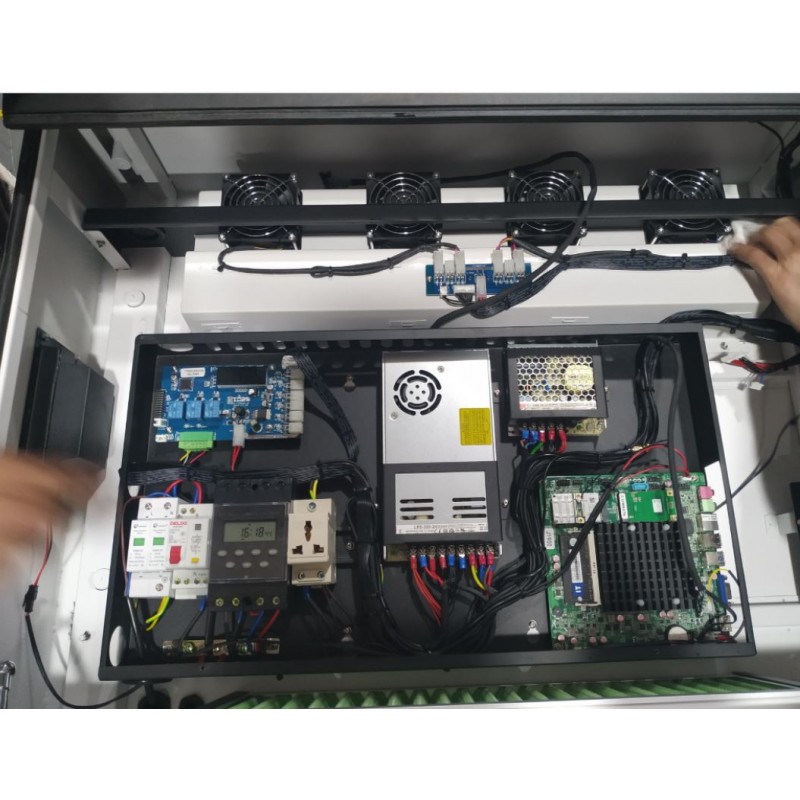

32" Outdoor Panel PC waterproof High nits 1500 for sunlight with automatic light sensor
32" Outdoor panel PC for wall mounting 1500nits

32" LCD
J1900 CPU
64GB SSD
4GB RAM
resolution 1920x1080
High nits: 1500
Light sensor
IP65
WiFi
Ethernet
Wall mount
Kg 55
-20 o -45 o C
110/240vac
865x610x300 mm (wxhxd)
Windows 10 support
Without touch!

Call +45 56 66 20 20 for price
Item Number: IPP32-IP65WALL
Physically in stock
ADD TO CART
Quick view

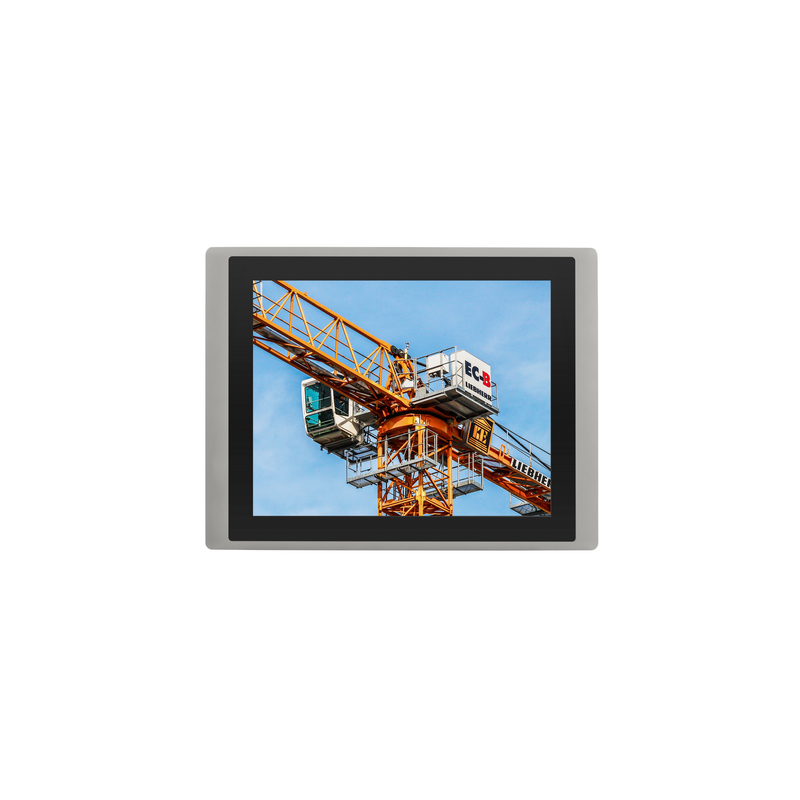

19" Modular Monitor TFT-LCD, capacitive touch, IP65 front
19" High Brightness Modular Panel PC with 8th Gen. Intel® Core ™ U Series Processor

19” TFT-LCD, 1280 x 1024 (SXGA)
Brightness: 1,600 nits
Intel® Core ™ I3-8145ue Dual Core Processor (standard)
Intel® Core ™ I5-8365 quad Core Processor (option)
2x DDR4 SO-DIMM Socket, Supports Up to 2400MHz, 64GB
Integrated USB 3.2 Gen 2 supports up to 10Gbps
M.2 E Key Socket for Wireless Module or Intel CRF Module
Supports Ignition Sensing Function (IGN) (option)
Wide Range Operating Temperature -20°C to 70°C
Designed with Rugged Aluminum Die-casting Front Bezel
Flat IP65 Compliant Front Panel Protection
Panel / VESA / Rack Mounting
9~48VDC via 3-pin Terminal Block

Call +45 56 66 20 20 for price
Item Number: IPP19-SOL-GEN8-CDS
On the way in
ADD TO CART
Quick view

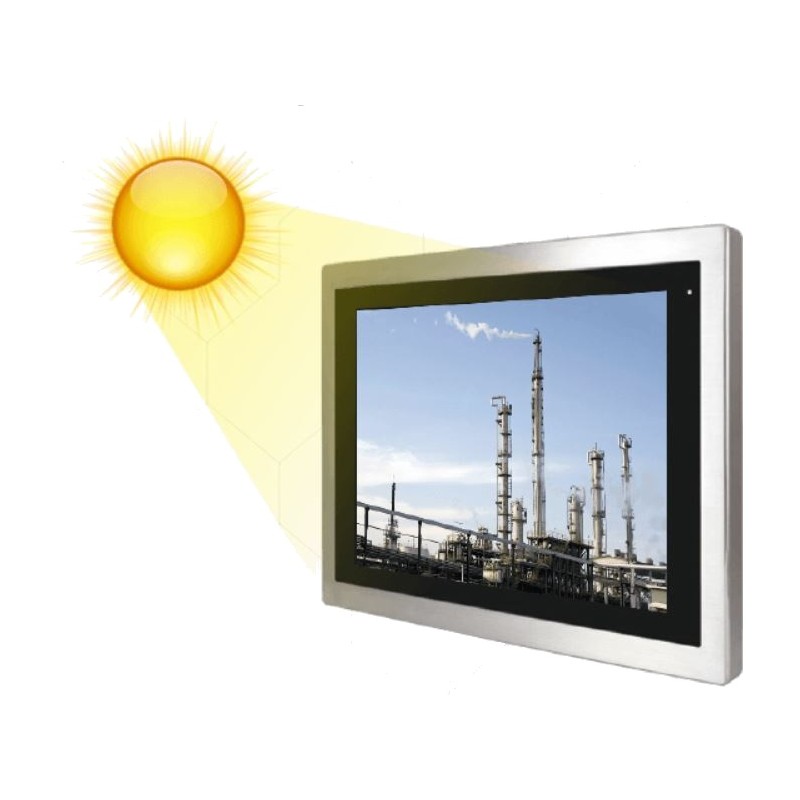

Panel PC with touch for sunlight outdoor use
Panel PC 21.5" with 1000 nits, suitable for sunlight, with touch, stainless steel housing full IP66/IP69K

21.5" Stainless steel Panel PC
TFT 1920x1080
6th Gen. CPU i3/i5 CPU support
Max 16GB RAM
M12 8 pin connectors
2x USB 2.0, 1 x USB 3.0
1 x COM
1 x CAN
1x LAN (POE IS OPTION)
Flat Front design
Stainless steel grade 304. (option 316)
Touch option Resistive, Projected Capacitive, Glass
ON/OFF on side
Vesa mount 100x100, Option Yoke Mount
571x362x55 mm
​10KG

Call +45 56 66 20 20 for price
Item Number: IPP21.5IX-SUN-IP65F
On the way in
ADD TO CART
Quick view

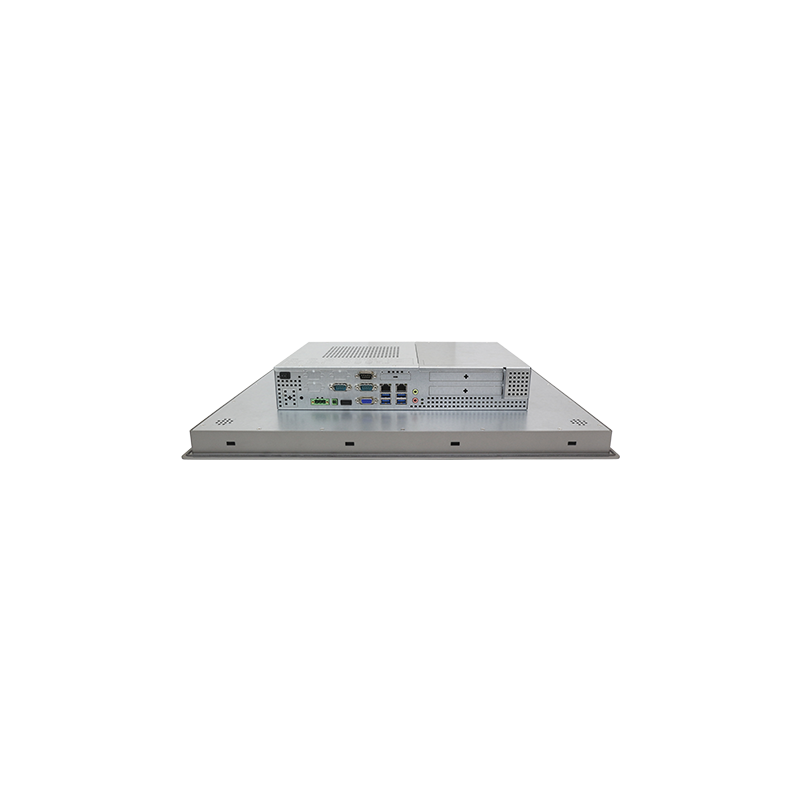

21.5" Panel PC with 1000Nits, Waterproof front and Auto Dimming
