Product title

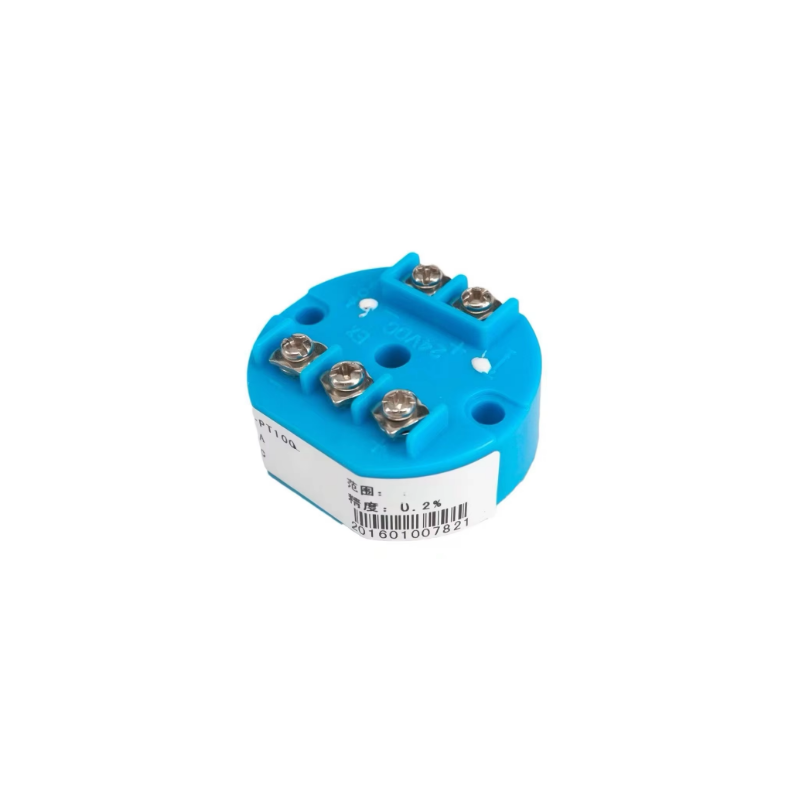

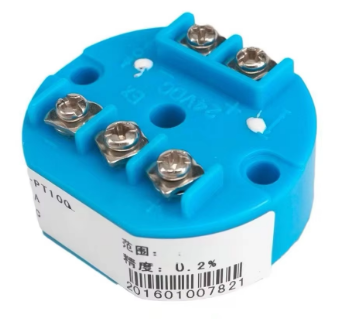

Thermal resistance current transmission module for Pt1000
Power supply: 16 - 36VDC (two-wire loop power supply)
Output: 4 - 20mA

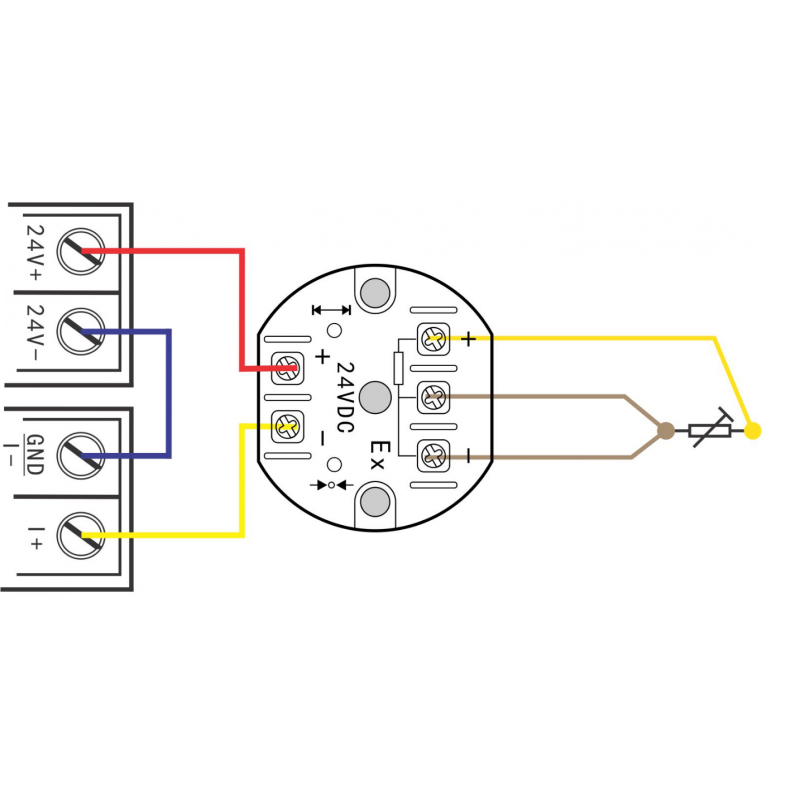

Connect I+ and GND I- to A/D input.
If A/D input is 0-10V, connect 125ohm across input
It will give 0-10V across the 125ohm resistor
For 2 - 3 lead platinum resistance PT1000 temperature sensor
Additional Pt1000 temperature sensor
Accuracy: 0.2% FS Related to the accuracy level of the connected platinum resistor

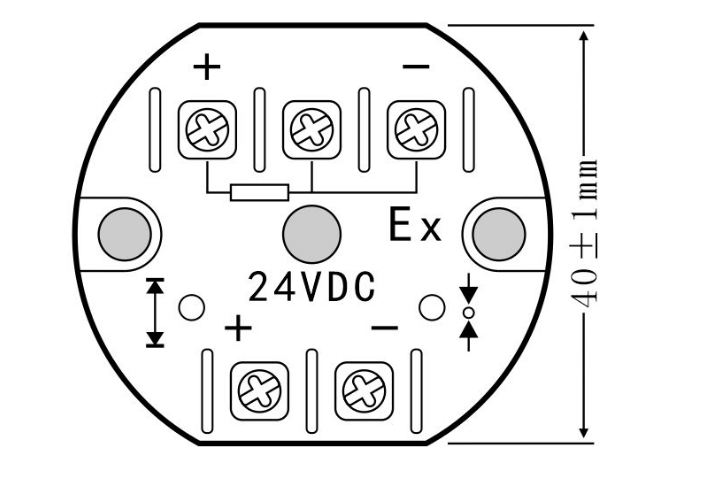

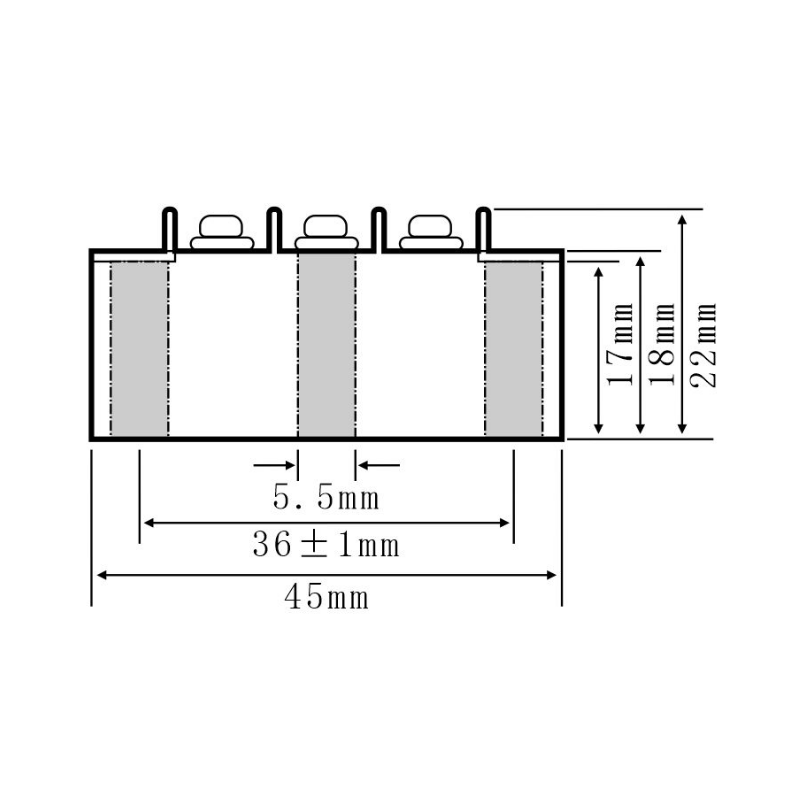

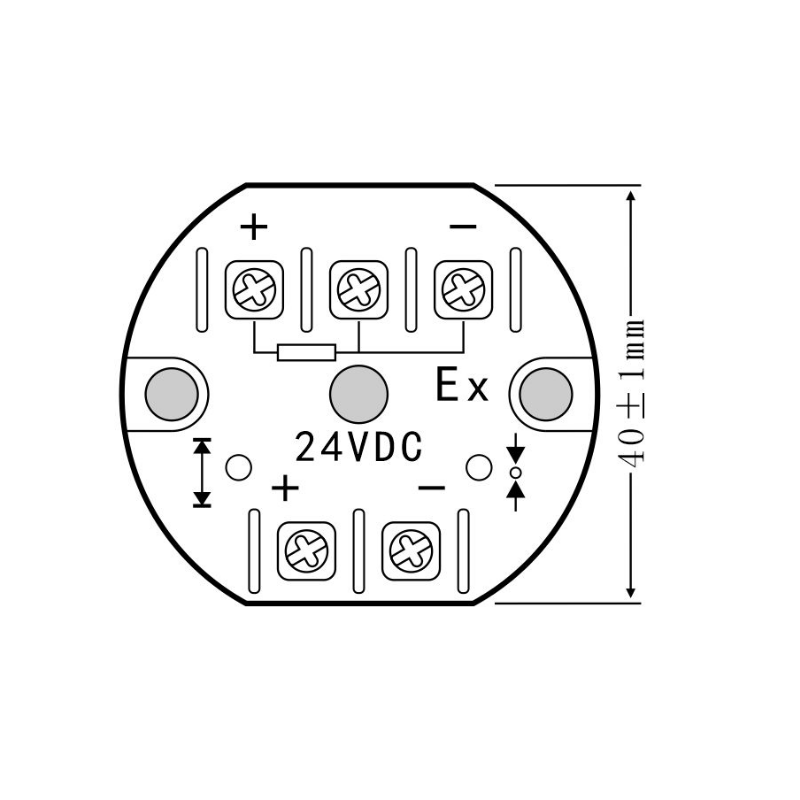

Dimensions: see drawings

275 kr
Excl. VAT
Quantity
Physically in stock
Product number DC-TEMP-MA-PT1000
Get Volume Offer
