17\" Panel PC, IP65 tætforVandtæt front
Previous
Next

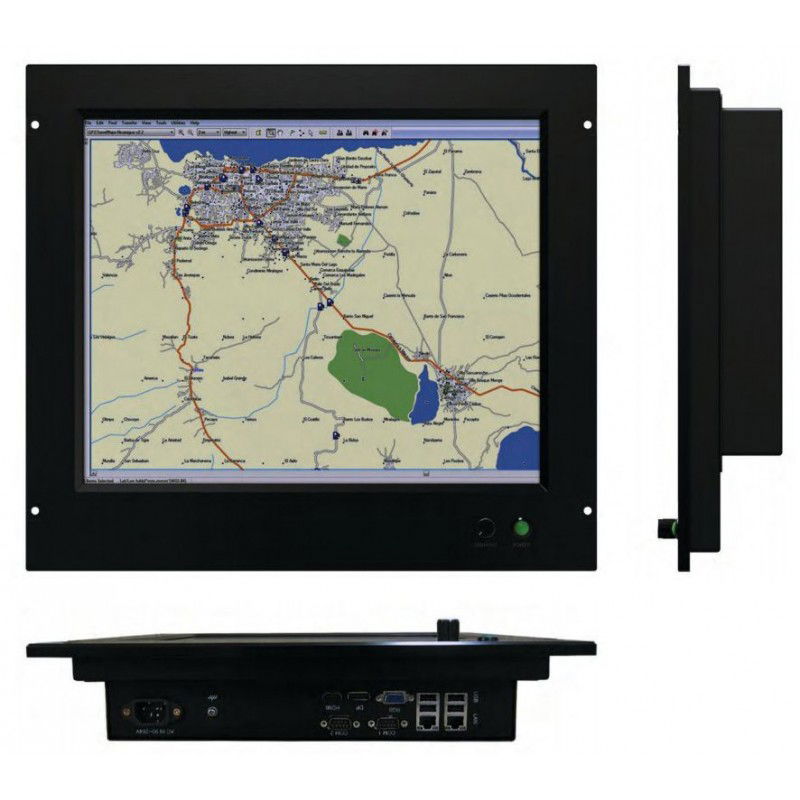

17\" Panel PC, IP65 tætforVandtæt front

17" Panel PC, IP65 tæt

IP65 tæt front 17” panel pc med touch

Call +45 56 66 20 20 for price
Quantity
On the way in
ADD TO CART
Product number IPP17-IP65M
Get Volume Offer
close

Get Volume Offer


file_download DOWNLOADS
Ask a question
close

Stil et spørgsmål





Download PDF

Specifications

CPU Intel Core i3 2310M 2.5GHz CPU
Chipset Intel QM67
Operating Temp. 0° til 60° C
Drev 1 x 2.5” SATA harddisk eller SSD Monteret med 128GB SSD Harddisk
Hukommelse 2 x 204-pin DDR3 SO-DIMM Maks. 8 GB Monteret med 4GB RAM
Kabinet Stålkabinet og IP65 tæthed i fronten
Netværk 1 x Intel 82579L 10/100/1000 Mbit Ethernet m/RJ45-stik 1 x Realtek RTL811C 10/100/1000 Mbit Ethernet m/RJ45-stik
OS SUPPORT Understøtter Windows XP, 7/8 embedded 7 samt Server 2008. Linux Ubuntu 10.x
Porte 1 x RS232, 1 x RS232/422/485 alle med DB9 hanstik
Skærm 17” TFT, 1280 x 1024 resistive touch
Strømforsyning Indbygget 100-240VAC strømforsyning
Tastatur/mus Via USB porte
VGA Integreret Intel HD 3000 grafikkort i CPU med HDMI, DP og DB15HDF VGA-stik
Dimensioner 388 x 440 x 86 mm

17” Core i3 panel pc med IP65 tæt front, godkendt til marine brug

Kan også leveres i en version der kan forsynes af 18 til 36 Volt DC

Kontakt vores salgsafdeling for priser og mere information
