Industrial Panel PC 19" with Capacitive Touch, Flat design, Intel Gen7 i5

19" TFT-LCD
Resolution: 1280x1024
7th Gen i5 CPU (other cpu can be offered)
2 x RJ45, 4 x USB3.0, 2 x RS232
9-36V DC 3-pin terminal block
-20 ~ 60° C working temperature

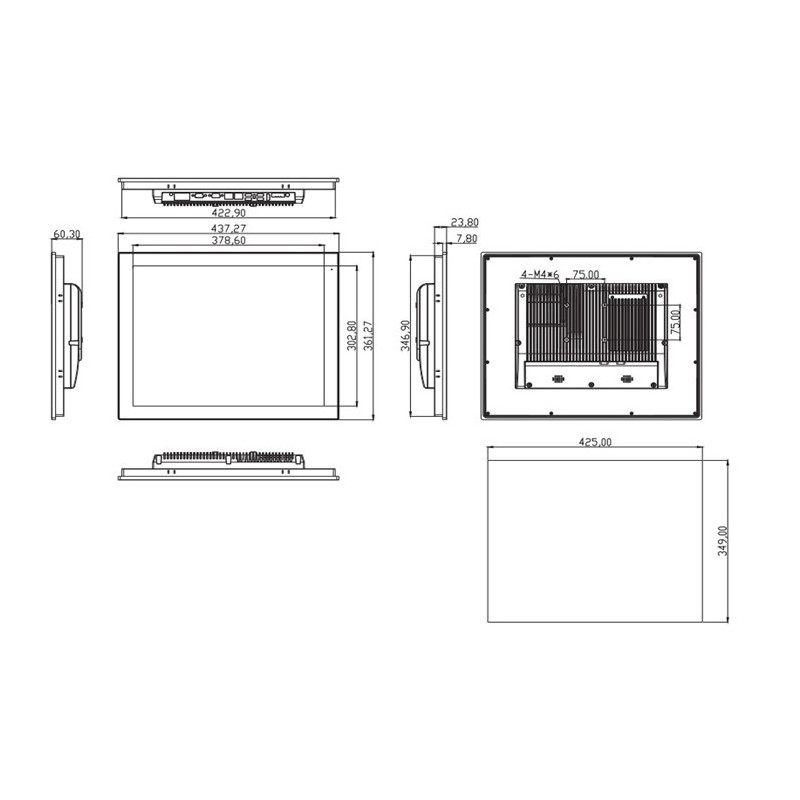

437.27 x 316.27 x 60.3 mm
Panel mounting/ 75 mm VESA mounting

Call +45 56 66 20 20 for price
Quantity
Physically in stock
ADD TO CART
Product number IPP19-GEN7
Get Volume Offer
close

Get Volume Offer


file_download DOWNLOADS
Ask a question
close

Stil et spørgsmål





Download PDF

Specifications

CPU Gen7 i5
USB 4 x USB 3.0
Operating Temp. -20° C ~ +60° C
Ethernet 2 x GbE LAN RJ45
Hukommelse 8GB MAX
Input 9-36V DC 3 pin terminal block
Lysstyrke 250 nits
mPCIe 1 x Mini PCIe full size
Opløsning 1280 x 1024
OS SUPPORT Windows 10 / Ubuntu，CentOS
Porte 2x RS-232/422/485
SATA 1 x SATA til 2.5"
Skærm 19" TFT-LCD
Dimensioner 437.27 x 316.27 x 60.3 mm

Panel PC for mounting in enclosers. IP65 rating front only.
Glass front without edges for easy cleaning and modern design.
We can offer Panel PC with different configuration RAM, SSD, CPU and operating system. Contact us for offer.
