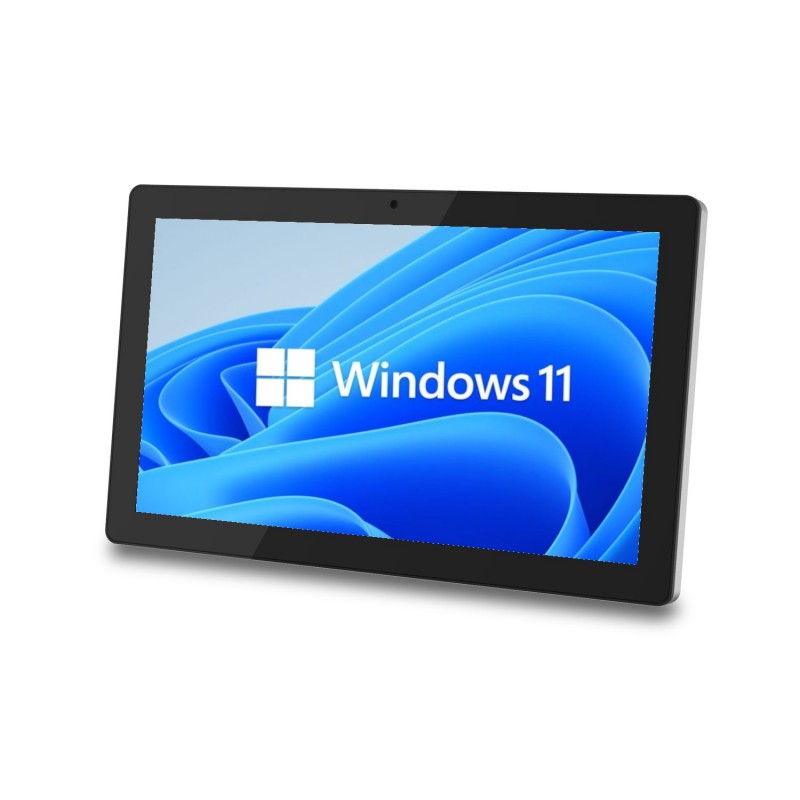

Panel PC 21.5", Fanless, IP65 Front, i5 Gen8 CPU, PCAP touch

16:9 Ratio with 21.5”
1920 x 1080 pixel
CPU i5-8365UE vPro (i3, i7 is option)
1x HDMI, 1x DVI-D

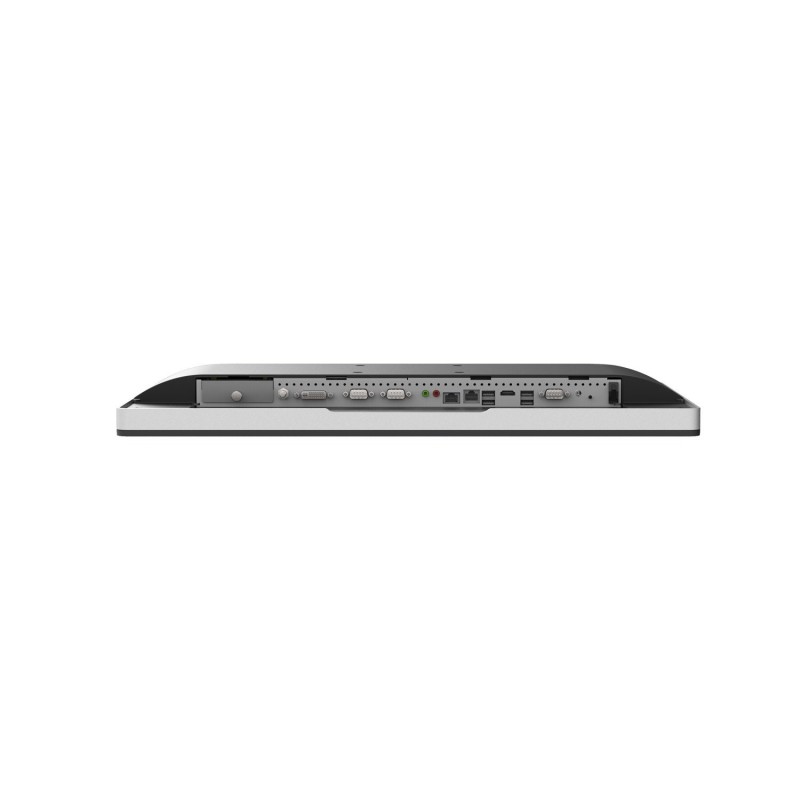

2x RJ-45, 3 x DB9, 4x USB3.0
Fanless & Front Panel IP65'

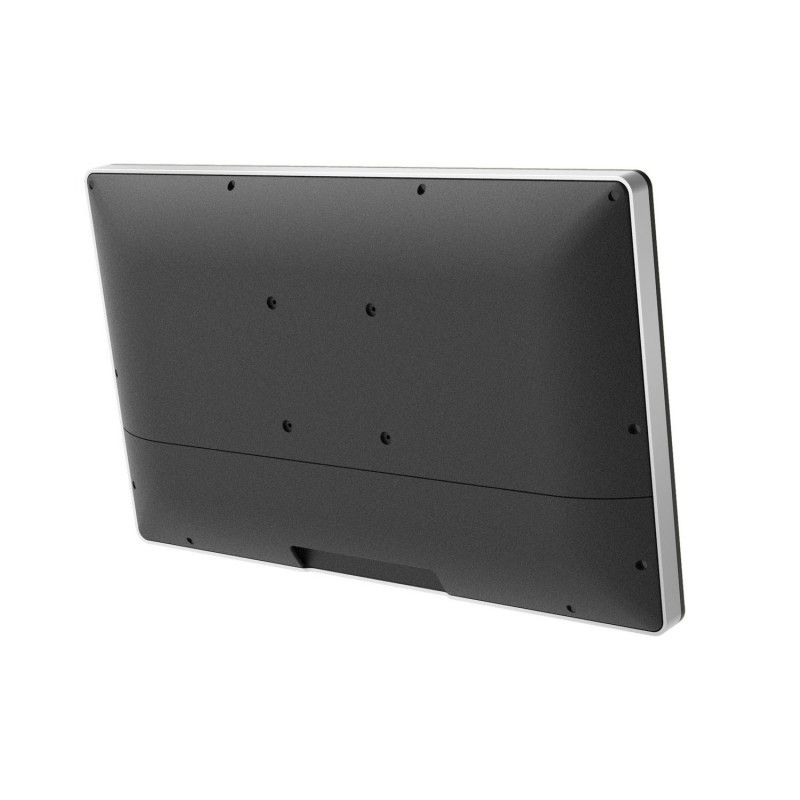

VESA Mount 100 x 100
Magnetic I/O Port Cover
Aluminum Die Casting Housing
Windows 10, Windows 11, Linux

IPP21.5-GEN8-I5
Call +45 56 66 20 20 for price
Quantity
On the way in

  • Download PDF
  • file_download Downloads
  • live_help Ask a question

High quality PanelPC with cover for I/O ports. I/O covers gives port extra protection. This PanelPC is sutible for Amusement and Entertainment Device, KIOSK, Self-service Terminal, Interactive Digital Signage, Gambling Machine, E-desk, etc.

CPU
i5-8365UE vPro
Andet
1x DB9 (RS232), 2 xDB9 (RS232/422/485)-(RS232 support 5V/12V)
Certifications
FCC Class A, CE Mark, CB, cTUVus, EU RF
Dimensioner
543 x 334 x 49.9 mm
Driftstemperatur
0°C ~ 40°C
IP-Tæthed
IP65(front panel)
Kamera
2M WebCam (HD webcam, USB interface)
Køling
Fanless
LAN
2x RJ-45
Luftfugtighed
20% - 80% RH, non-condensing
Lysstyrke
350 nits
Materiale
Aluminum Die Casting Housing
OS SUPPORT
Windows 10, Windows 11, Linux
Skærm
21.5", 1920 x 1080 pixel, 16:9
Touch
PCAP
USB
4x USB3.0
Video
1x HDMI, 1x DVI-D
speaker
2x 2W
