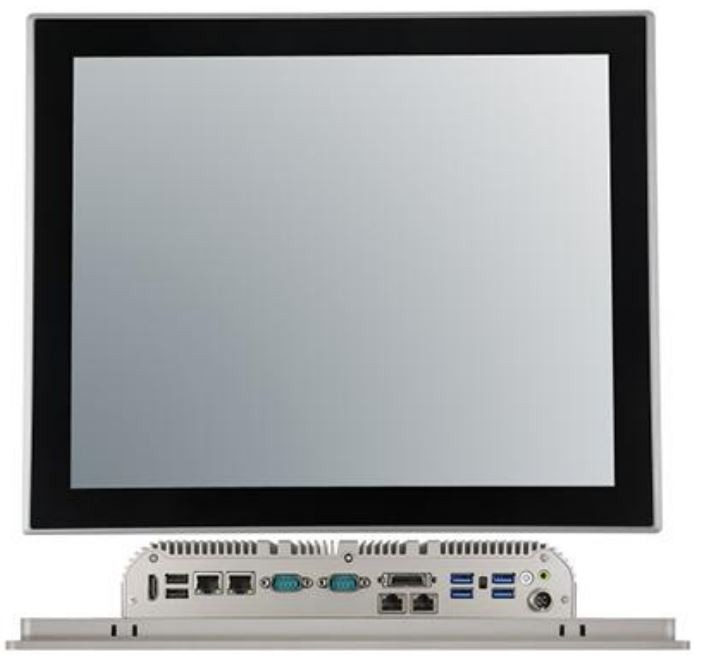

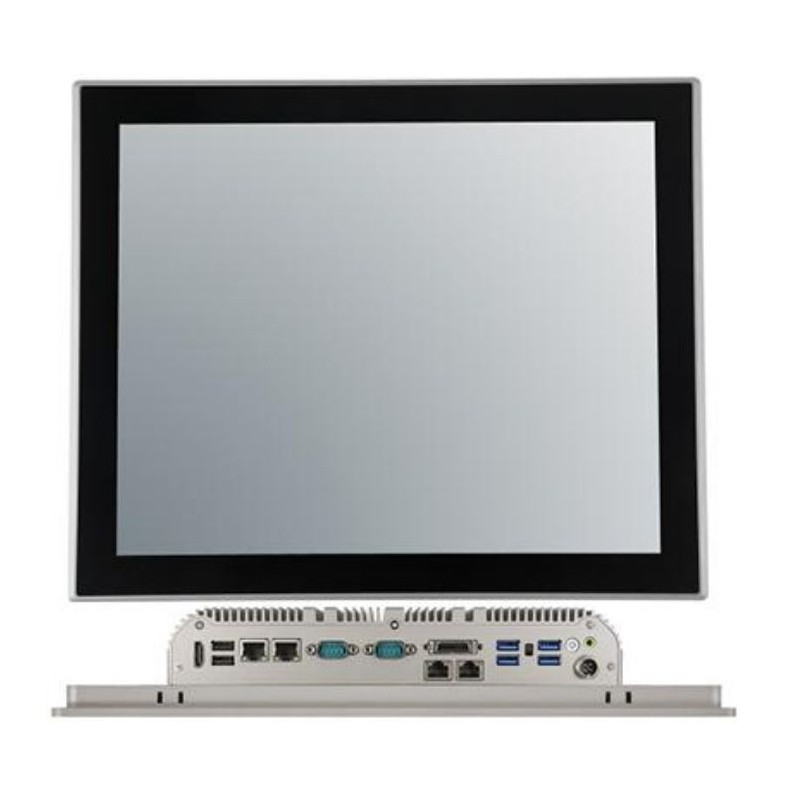

19" Panel PC IP65 front, Celeron, I5 or I7, 2xCOM, 2xRJ45, 9~36Vdc, 10Bit GPIO,

19" TFT-LCD Panel PC

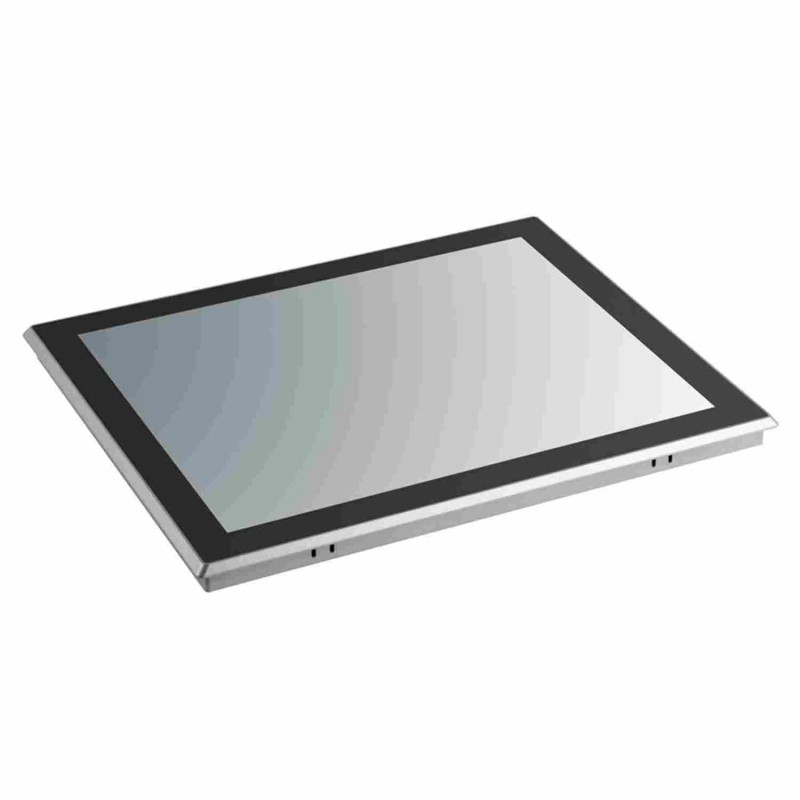

IP65 front
Resolution: 1280*1024
250 nits
5-wire resistive touch screen (capacitive touch on request)
Intel Celeron J4125/J6412 CPU / Core i5 /i7
RAM: 1x SO-DIMM DDR4 (celeron) max 16 GB, i5/i7 2x SO-DIMM DDR4 max 32 GB
1 x M.2 2242/2260/2280 SATA
1 x SATA (2.5'' SATA)
1 x M.2 2280 NVME
MPCIe: M.2 3042/3052 for 3G/4G/5G with built-in SIM slot, M.2 2230 WiFi & BT

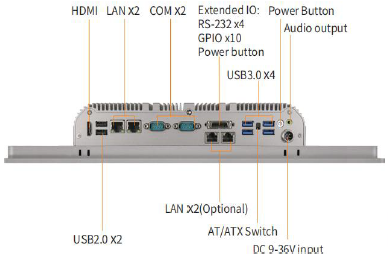

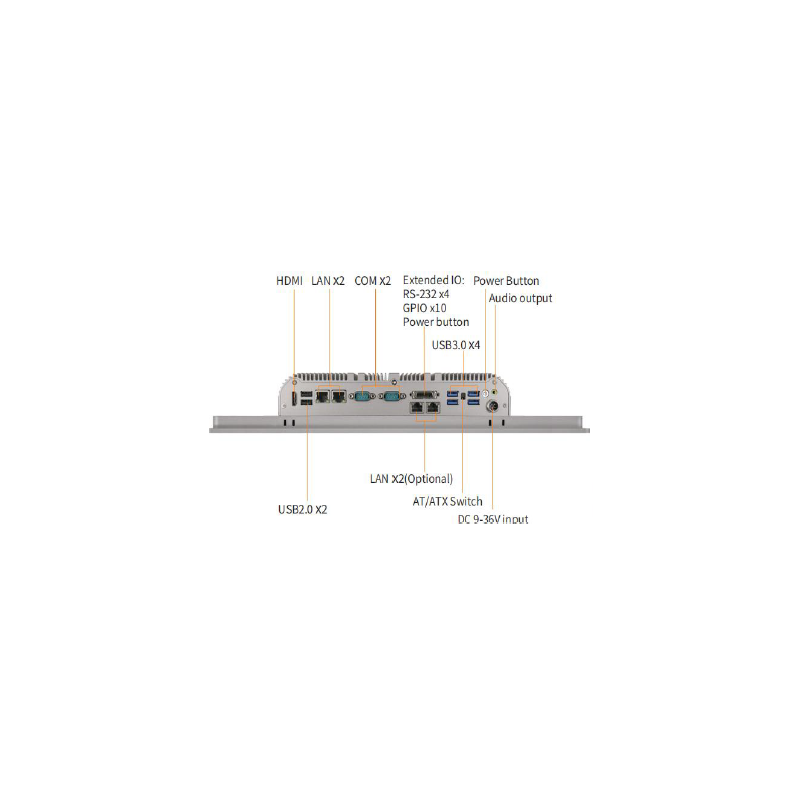

2x RJ45 Intel i225V (on special request 2 more can be added)
USB: Celeron version: 4*USB2.0+2*USB3.0 (J4125/J6412), i5/i7 version 4*USB3.0+2*USB2.0
COM: 2x DB RS-232/422/485 port, 4*RS232 in expansion port
GPIO: 1* 10 bit GPIO Inside the expansion port
Power supply: 9-36V DC plug
Working temperature: With air flow -10 ~ 60° C
Anti-vibration with SSD: 3 Grms, IEC 60068-2-64, random, 5 ~ 500 Hz, 1 hour/axis
Anti-shock with SSD: 30 G, IEC 60068-2-27, half sine, 11 ms duration

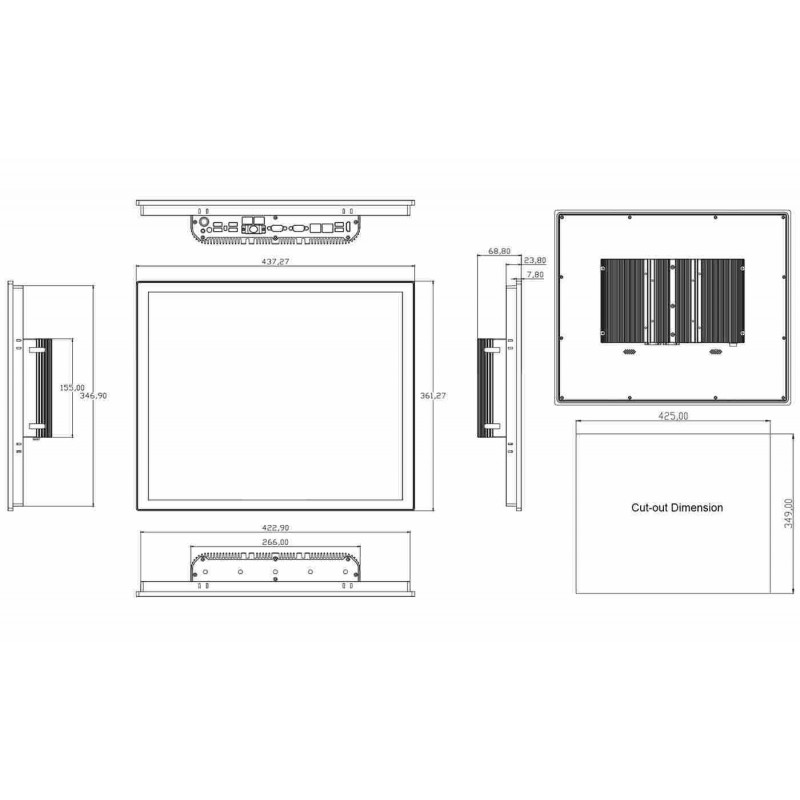

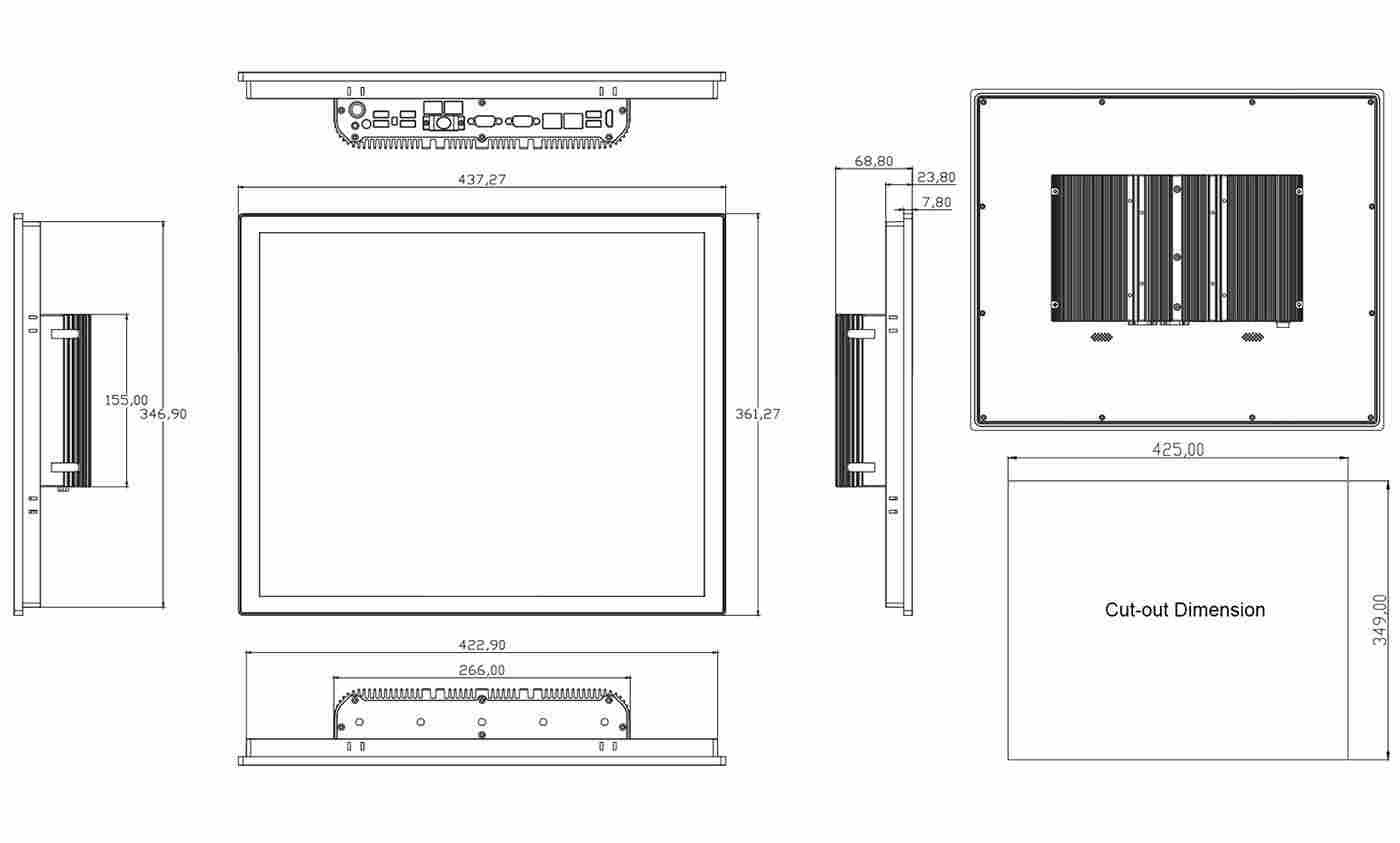

437.27x361.27x68.8mm
OS Support: Windows 10 / Ubuntu, CentOS

Call +45 56 66 20 20 for price
Quantity
On the way in
ADD TO CART
Product number IPP19-GEN11
Get Volume Offer
close

Get Volume Offer


file_download DOWNLOADS
Ask a question
close

Stil et spørgsmål





Download PDF

Specifications

Memory Type DDR4
Max. Memory Capacity 16
Power Input DC 9~36V
Antal Video Udgange 1
Antal LAN Porte 2
Antal USB 6
Antal Serial 2

19" Panel PC that can be delivere with Celeron, i5 or i7 CPU.
Special request are most welcome
