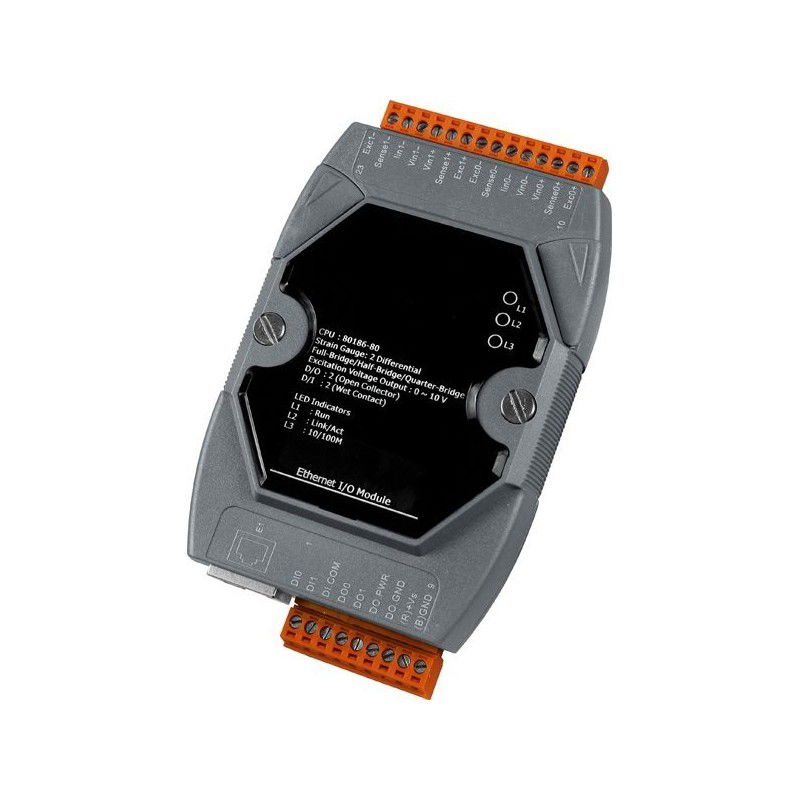

2 x Analog to Load Cell, +/- 2.5V, 0-20mA, 1 x Excitation like cell, 2x digital zoom, 2 x Digital Output (OC). LAN

2 stk. analog indgange samt 1 analog og 2 digital indgange

ETHIO3I4O-I
3,600.00 DKK
Tax excluded
Quantity
On the way in

  • Download PDF
  • file_download Downloads
  • live_help Ask a question

Digitale indgange kan anvendes som tæller

Forsyning
10 - 30 VDC, 5,3 W via klemrække
Indgang
2 stk. analoge differentialindgange: ±15 mV, ±50 mV, ±100 mV, ±500 mV, ±1 V, ±2,5 mV, 0 - 20mA, 4 – 20mA og ±20 mA
Indgang
2 stk. digitale: Logisk 0: 0-1 VDC og Logisk 1: 3,5-50 VDC
Netværk
10/100 Mbit m/RJ45-stik
Protokol
Modbus/TCP, TCP/IP og UDP
Software
Leveres med konfigureringssoftware til Windows 2000, XP, Vista, WIN7/8/10
Tæller
Digitale Indgange kan virke som 32 bit tæller, maks. frekvens 100 Hz
Udgange
2 x Isolated Open Collector, 700 mA/Channel, +5 VDC ~ +50 VDC
