7 pcs. differentialindgange for temperature sensor
Pt-100, Pt-1000, Ni120, Cu100/1000
With built-in 2 port ethernet switch
LAN Daisy Chain to the next module
Built-in Web server
Web HMI
Modbus TCP and Modbus UDP protocols
16 bit resolution - 12 samples / second
Good communication security
Dual Watchdog
Operating temperature: -25 to + 75 ° C
I / O Pair compound. Mirroring input to output
Supply voltage: 10 - 30VDC / 3watt

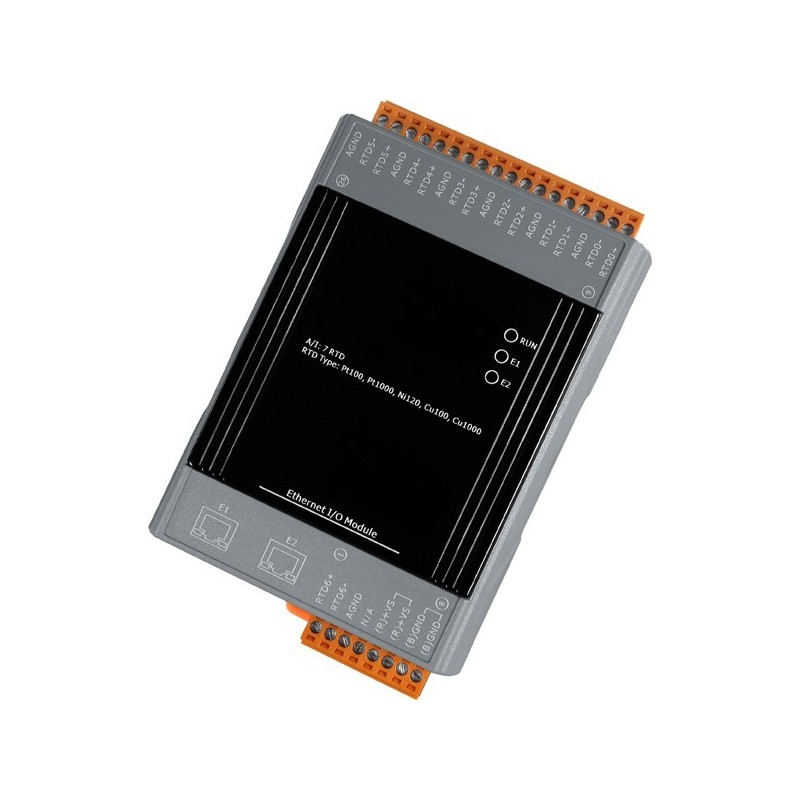

ETHIO7RTD-2I is especially designed for long distance RTD measurement. It has automatic compensation for three-wire RTD regardless of the length of the wires and provides for open ledningsdetektion to the RTD measurement. ETHIO7RTD-2I is by 7 channels, each of which can be connected to different kinds of RTD (Pt100, Pt1000, Ni120, CU100, Cu1000). ETHIO7RTD-2I are also fully RoHS compliant and has 4 kV ESD protection and 2500 VDC intra-module isolation.
3 thread PT 100 sensor
metal house 4 x 80mm
2 meter cable
accuracy: +/- 1 ° C
Temperature range: - 20 - +130°C
MODBUS TCP/IP module with analogue in- and output
User-definable Modbus TCP Slave addressing
Max. 10 clients connected
Supports RESTful API for IIoT applications
Supports peer-to-peer communications
Saves time and wiring costs with daisy-chain topologies
Active communication with WIN-OPC UA Server
Supports SNMP v1
Easy mass deployment and configuration with Device Search utility
Friendly configuration via Web browser
Temperature range -20 to +70°C
DIN Mount
Phoenix contacts
Supply 12 - 36VDC/ 3 Watt
Size: 124 x 84 x 28 mm
Built-in Web server
Web HMI
Modbus / TCP and Modbus / UDP protocols
Good communication security
Dual Watchdog
Operating temperature range: -25 ~ + 75 ° C
I/O Pair-link - the input is mirrored in the other's output
6 x Analog inputs: 500mV +/- - +/- 10 V, 0 - 20mA (16bit)
2 x Analog outputs: 0 - +/- 10VDC, 0 - 20mA (12bit)
10 samples per second
2 x Digital input (count): Wet / Dry, max. + 30VDC (100Hz)
2 x Digital outputs: Open Collector, max. 50VDC / 700mA
2 x RJ45 Ethernet Daisy chain
Supply voltage: PoE or 10 - 30VDC / 4Watt
Open board til smart temperatur- eller fugt måling and styring
Password beskyttet Web baseret konfiguration og kontrol
1 x digital input med “dry contact” og “logic level” mode
1 x analog input fra 0 til 60VDC
1 relæ output med NO/NC kontakter
1-Wire input til 1 temperature eller fugtmåler
SNMP v.1 support
SNMP traps ved alarm
E-mail udsendelse ved alarm
SMTP med godkendelse (SSL/TLS er ikke supporteret)
HTTP og XML API kommandoer
Remote FTP firmware update.
Built-in Web server
Web HMI
Modbus / TCP and Modbus / UDP protocols
Good communication security
Dual Watchdog
Operating temperature range: -25 ~ + 75 ° C
I/O Pair-link - the input is mirrored in the other's output
6 x Analog inputs: 500mV +/- - +/- 10 V, 0 - 20mA (16bit)
2 x Analog outputs: 0 - +/- 10VDC, 0 - 20mA (12bit)
10 samples per second
2 x Digital input (count): Wet / Dry, max. + 30VDC (100Hz)
2 x Digital outputs: Open Collector, max. 50VDC / 700mA
2 x RJ45 Ethernet
Supply voltage: 10 - 30VDC / 4Watt
