15" IP65 Panel Screen - TFT with LED Back Light, Resitive Touch USB, VGA, DisplayPort, HDMI 4:3 Format

15" LCD Monitor
Resolution: 1024 x 768
4:3 Format
IP65-Front
420 Nits
USB RESISTIVE TOUCH

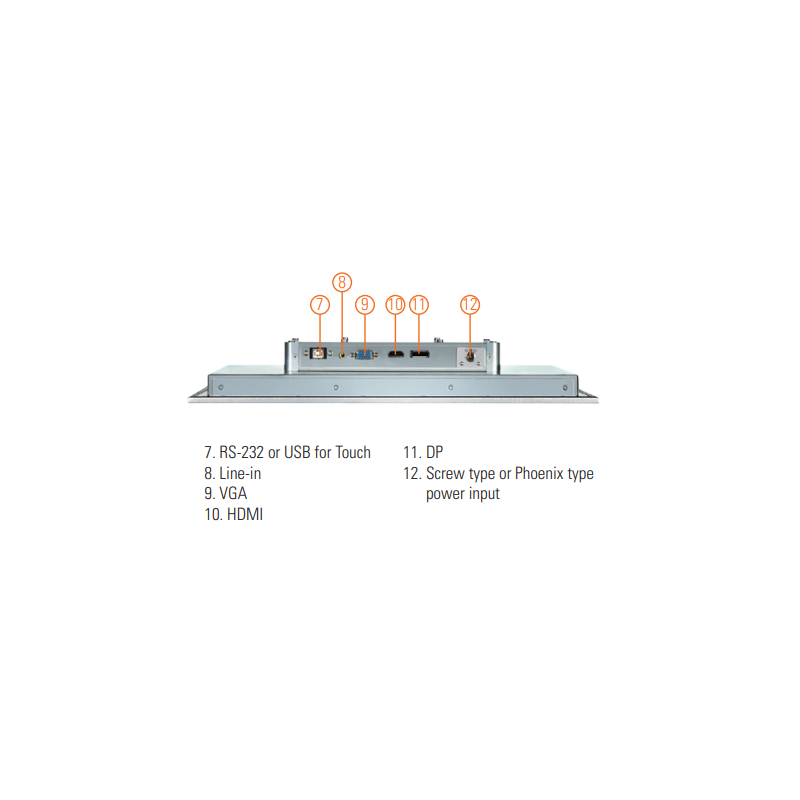

1 x DP
1 x VGA
1 x HDMI
1 x USB to Touch
Panel / Wall / Rack / Desktop Mounting (Accessories)

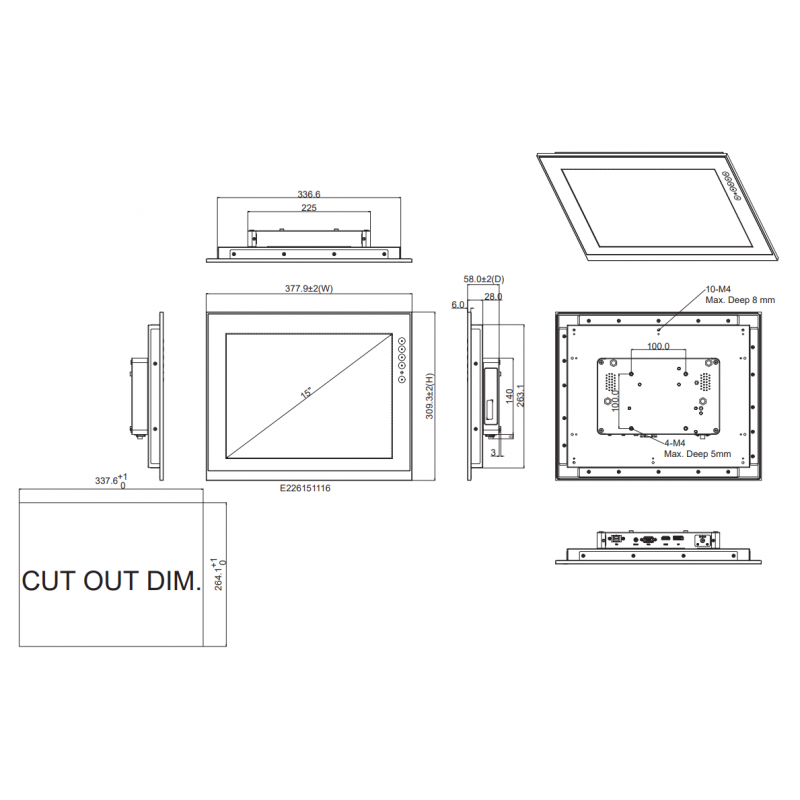

Dimensions: 377.9 x 309.3 x 58mm
Supply voltage: 24VDC or 230VAC (option)
Weight: 3.7kg
Operating temperature: 0 ~ + 50 ° C

Alternative:
MON15-P-TU
Call +45 56 66 20 20 for price
Quantity
On the way in

  • Download PDF
  • file_download Downloads
  • live_help Ask a question

MON15 "P-TU is in the metal housing and are intended for industrial applications and for installation in the panel. The buttons for adjusting the screen sits on the front. MON15P-TU with a touch screen with USB connection. Other models and sizes available.

Approval
CE
Dimensioner
377,9 x 309,3 x 58mm (W x H x D)
Driftstemperatur
0°C ~ +50°C (+32°F ~ +122°F)
Forsyning
24VDC or 230VAC (option, external)
IP-Tæthed
NEMA 4/12 (IP65)-compliant, metal front bezel
Montering
Panel/ væg/ rack/ desktop montering (tilbehør)
Strømforbrug
14W
Weight
3.7 kg (8.15 lb)/5.9 kg (13 lb)
