Thermocouple module with RTU interface (RS485)

For the following sensors: J, K, T, N, E, B, R and S

24-bit resolution

+/-0.19% CJC accuracy

Supply voltage: 5 - 30VDC

Dimensions: 35 x 86 x 59 mm

Weight: 75g

DIN bracket

0.1A - 10A - DC

0.1A - 10A - AC (48-65Hz)

16-bit ADC

Resolution: 0.01 A

Accuracy: +/- 1%

AC/DC mode selector

1-wire interface (max. 30 m)

Operating temperature: -2+ to +60°C

Supply voltage: 4 - 5.5VDC/ 30mA

Dimensions: 36 x 107 x 59 mm

DIN bracket

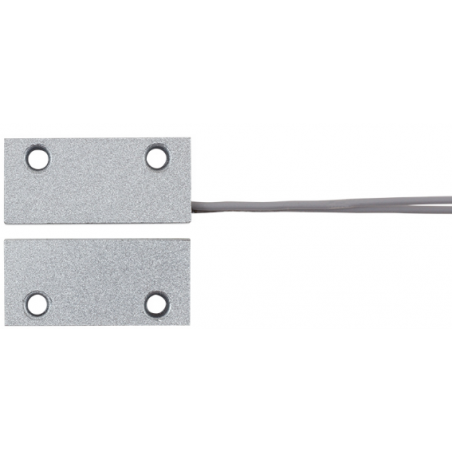

Magnetic contact with "dry contact" output

Contact: Max. 30V/0.2Amp

Closed contact when close together.

Dimensions: 32 x 15 x 9 mm, each unit.

Holes: 3.5 mm distance: 20 mm

Supply: 200 mm

Zinc Alloy

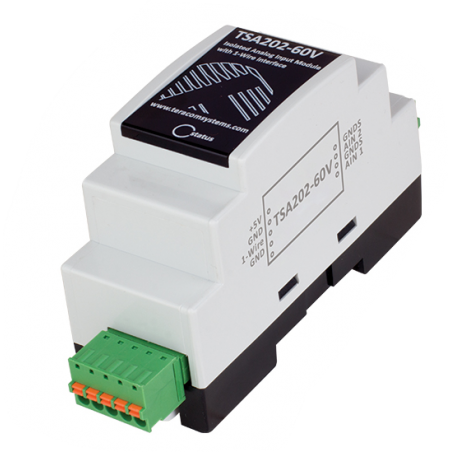

2 channel analog input module with 1-wire interface

Voltage measurement: 0-60V

Resolution: 16bit

Accuracy: +/-1%

Input is galvanically isolated

Supply voltage: 5VDC 25mA

Temperature range: -20 - +60°C

IP20

Dimensions: 120 x 36 x 60 mm

DIN mounting

2 channel current transmitter with 1-wire interface

current measurement: 0-20mA (4-20mA) current loop

Select voltage measurement: 0-10V with Mode to GND

Resolution: 16bit

Accuracy: +/-1%

Input is galvanically isolated

Supply voltage: 5VDC 25mA

Temperature range: -20 - +60°C

IP20

Dimensions: 120 x 36 x 60 mm

DIN mounting

Modbus RTU (RS485) relay module with 4 outputs
RS-485 interface supporting up to 63 nodes
Non-volatile memory that retains relay status
LED indicator for communication status
Voltage supply: 5 - 28VDC
Watchdog functionality for communication loss
Isolated relay contacts
Shrimp switch: 250VAC / 30VDC 3Amp
No inductive load on relay contact
Memory for saving settings
Built-in 120 ohm termination resistor
DIN rail mounting
Firmware update via the interface
Dimensions: 52 x 91 x 59 mm
Operating temperature: -20 - +60°C

AC and DC voltage meter with true RMS
Resolution: 24 bits
0-264VAC 0-60Hz (3 phases)
L1, L2, L3, N
0-+/-370VDC
Input impedance greater than 2.4Mohm
Modbus RTU (2-wire RS485)
Built-in RS485 termination (120 ohms)
Up to 63 units per RS485 Bus
LED for communication status
Response time: less than 50mS
Temperature: -20 - +60°C
Supply voltage: 5 - 28VDC
Dimensions: 86 x 59 x 35 mm

DIN kit for Teracom devices
2 x Bracket + 4 screws

Global 4G LTE Controller, logger and alarm
Supports all LTE frequencies
Setup via USB, SMS and HTTP API
USB setup - use USB cable with Mini B male
2 digital "dry contacts". High on contact
2 analog inputs, 0 - 10VDC or 4-20mA input (10bit)
4 relay outputs, COM, NO and NC
1-Wire input for up to 8 Teracom sensors
1 x RS485 for max. 8 MODBUS RTU sensors
Data logger with 70,000 logs
Upload data to HTTP/HTTPS Post in XML/JSON
SMS alarm and Email alarm to 5 recipients
Push mode – XML data is sent via HTTP Post to a remote server. Responses from server may contain relay setup.
10 to 28VDC, 370mA @ 12VDC - additional PSU
Dimensions: 158 x 119 x 34 mm
Weight: 470g
Temperature: -20 - +55°C

GSM/LTE alarm - 4G - Global version

Supports all LTE frequencies

Configuration via USB (Windows program) or SMS

2 x digital inputs with "dry contact" or "logic level" mode

2 x analog inputs from 0 to 60VDC, 10 bits

2 x relay outputs with NO/NC contacts

1-Wire interface for 4 Teracom temperature and humidity sensors

Input can be navigated with alarm text etc.

SMS alarm - up to 5 numbers

Email alert - up to 5 email recipients, SMTP with TLS support

1 relay can be activated with calls from up to 100 phone numbers

Push mode – XML data is sent via HTTP Post to a remote server. Response from server may contain relay setup.

MQTT 3.1.1 support

Firmware update "over the air"

Supply voltage: 10 - 28VDC, 2Watt - optional PSU

Dimensions: 109 x 65 x 32 mm

Weight: 152g

Web based Data Collector module with built-in WebServer

Supports MQTT 3.1.1 protocol

4 x digital input Dry - external contact without voltage

4 x analogue inputs with 0 to 10VDC, 0-20mA

4 x powerful relay outputs with NO/NC contacts

RS485 port

MODBUS RTU up to 24 registers (sensors)

Modbus TCP/IP support

Data logger with memory for 70,000 loggings

SNMP v3 support with trap alarm

4 schemes for real-time control of relays

Up to 24 independent alarms

Secure email

XML/JSON and HTTP API commands for client-server

Dynamic DNS support for DynDNS, No-IP and DNS-O-Matic

NTP time sync

Supply voltage: 10 - 28VDC - purchase PSU

Dimensions: 145 x 90 x 40 mm

1-wire communications - several sensors can be connected to the same unit
± 3.0% relative humidity accuracy
± 0.4% relative temperature accuracy
12 bit resolution for humidity measurement
14 bit resolution for temperature measurement
Calibrated digital output
Eksellent long-term stability
Each sensor has its own unique 64-bit serial number

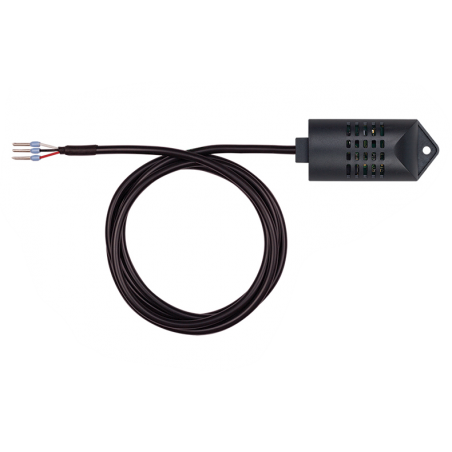

1-wire Temperature / Humidity sensor
Temperature -20 - +60°C
Humidity 10 - 90% RH
Temp tolerance +/-0.4°C at -10 - +60°C
Moisture tolerance ±3.0%rH at 20 - 80%rH
Long term operation ±0.25%/year at 20 to 80%rH
Long-term operation ±0.05°C/year at -10 to +60°C
Solution 0.1 %rH 0.1 °C
Power supply/consumption 4.0 to 5.5 VDC 5 mA
Dimensions 62 x 28 x 16 mm
Cable length 1 m

Temperature and humidity sensor
1-wire interface for Teracom controller
Temperature: +/-0.4 °C (-10 to +60 °C), max. +/-0.6°C
Resolution: 0.1°C
Humidity: +/-3.0% RH (20 - 80% RH), max. +/-5% relative humidity
Solution: 0.1% RH
Supply voltage: 4.5 - 26VDC
LED indicator for communication status
Long-term stability based on digital signal processing
Changeable bit rate and other communication parameters
Firmware update via the interface
Size: 81 x 81 x 30 mm
Weight: 66g

Multi sensor for CO2, Temperature and Humidity
Interface: RS485 - MODBUS RTU
LED indicator for status of communication
Long-term stability based on digital signal processing
Self-calibration on fresh air for CO2 measurements
Changeable communication parameters
Non-volatile memory for all settings
Firmware update via the interface
Size: 81 x 81 x 30 mm
Weight: 66g
Supply voltage: 4,5 - 26VDC / Max. 150mA

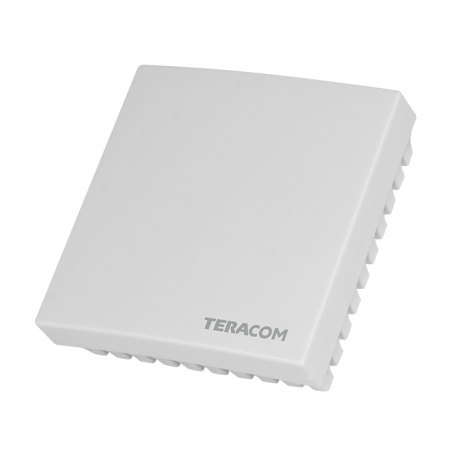

Temperature and Humidity sensor
RS485 MODBUS RTU
Temperature: +/-0,4 °C (-10 to +60°C), max. +/-0,6°C
Resolution: 0,1°C
Humidity: +/-3,0% RH (20 - 80% RH), max. +/-5% RH
Resolution: 0,1% RH
Supply voltage: 4,5 - 26VDC
LED indicator for status of communication
Long-term stability based on digital signal processing
RS-485 interface (2-wire) carrying up to 32 nodes
Changeable bitrate and other communication parameters
Firmware update via the interface
Size: 81 x 81 x 30 mm
Weight: 66g

Multi sensor for CO2 and Barometric pressure
Interface: RS485 - MODBUS RTU
LED indicator for status of communication
Long-term stability based on digital signal processing
Self-calibration on fresh air for CO2 measurements
Changeable communication parameters
Non-volatile memory for all settings
Firmware update via the interface
Size: 81 x 81 x 30 mm
Weight: 66g
Supply voltage: 4,5 - 26VDC / Max. 150mA

Multisensor for CO2 and barometric pressure
Interface: 1-wire (+/- and data)
LED indicator for communication status
Long-term stability based on digital signal processing
Self-calibration on fresh air for CO2 measurements
Interchangeable communication parameters
Non-volatile memory for all settings
Firmware update via the interface
Size: 81 x 81 x 30 mm
Weight: 66g
Supply voltage: 4.5 - 26VDC / Max. 150mA

1-wire Combi Sensor
Temperature: -20 - +60 ° C +/- 0.6 ° C
Resolution: 0.1 ° C
Humidity (Moisture): 5 -95% Rh +/- 5%
Resolution 0.1%Rh
IP54 Plastic housing, very sturdy
Up to 8 sensors on the same 1-wire
16 bits at temperature
12 bits at moisture
Supply Voltage: 4.5 / 25mW
Dimensions: 74 x 66 x 36 mm

Data logger for external temperature and humidity sensors
Sensors are not included - must be purchased separately, see selection
Memory for 70,000 measurements
Temperature, humidity and dew point can be displayed graphically
1-Wire and RS485 sensor interface
Up to 8 Teracom sensors can be connected
MODBUS TCP/IP support
SNMP v2 with trap alarm for 5 email recipients
Secure email
XML/JSON and HTTP API commands for client-server
Dynamic DNS, DynDNS, No-IP and DNS-O-Matic
NTP support for time synchronization
Remote firmware update
Supply voltage: 10 - 32VDC - purchase PSU
