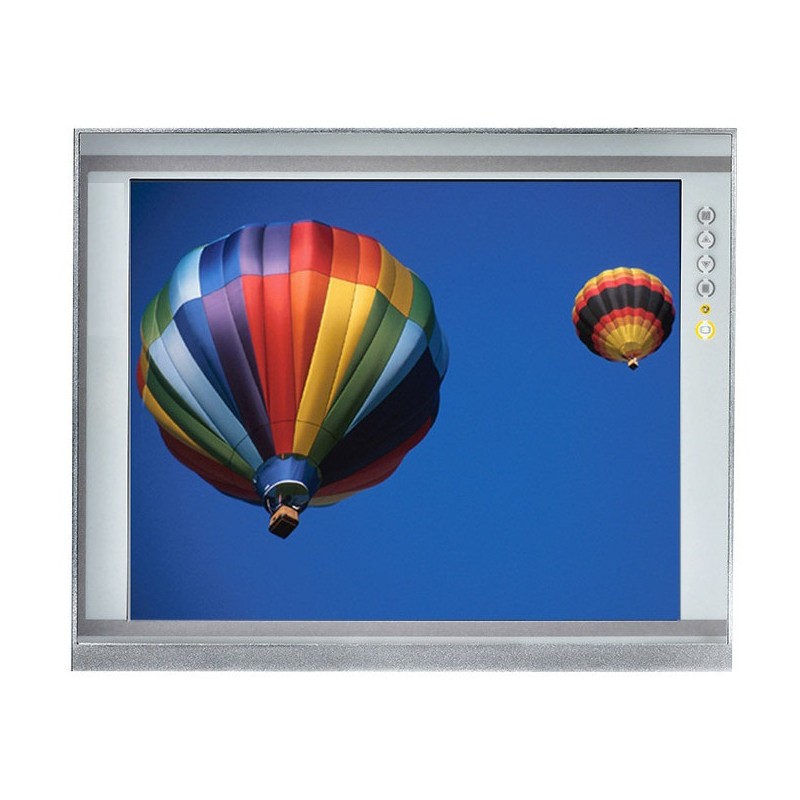

17 "Panel LCD Monitor, IP65 front, resistive touch (USB or RS232), 1280x1024, VGA, DVI-D, HDMI, AC 230V, 250 nits, 4: 3

17 "LCD monitor
Resolution: 1280 x 1024 to 4: 3 format
IP65 front
250 nits
USB / RS232 resistive Touch
1 x DVI-D, 1 x VGA, 1 x HDMI
1 x USB to the touch
Panel/wall/rack mounting or desktop
Dimensions: 58 x 410.31 x 338.31 mm
AC 230V
Weight: 3.8 kg without packing / 6,56kg packed

MON17-P-TU230V
13,068.00 DKK
Tax excluded
Quantity
On the way in

  • Download PDF
  • file_download Downloads
  • live_help Ask a question

MON17 "P-TU is in the metal housing and is intended for industrial use and for mounting in panel / VESA / rack or desk mounting. All I / O function with multi-signal inputs.
Box:
1 x Monitor
1 x VGA cable
1 x USB cable
Or
RS- 232 cable (for resistive touch version only)
1 x Adapter (for AC version only)
1 x Audio cable 1 x Driver CD
order. Choose from: hotel - USB touch or RS232 touch interface.

< / p>

Certifications
CE
Dimensioner
410.31 mm (16.15") (L) x 58 mm (2.28") (H) x 338.31 mm (13.32") (W)
Driftstemperatur
0°C to +45°C
Forsyning
AC 230V
Kontrast
1000:1, 250 nits
Læser
Vinkel 170°/160°
Mål og vægt
Pakke dimensioner: 510 mm (20.08") (L) x 532 mm (20.94") (H) x 186 mm (7.32") (W)
Opløsning
Maks. 1280 x 1024
Skærm
17" SXGA TFT LCD monitor
Strømforbrug
24 Watt
Weight
3.8 kg (8.38 lb)/6.56 kg (14.46 lb)
