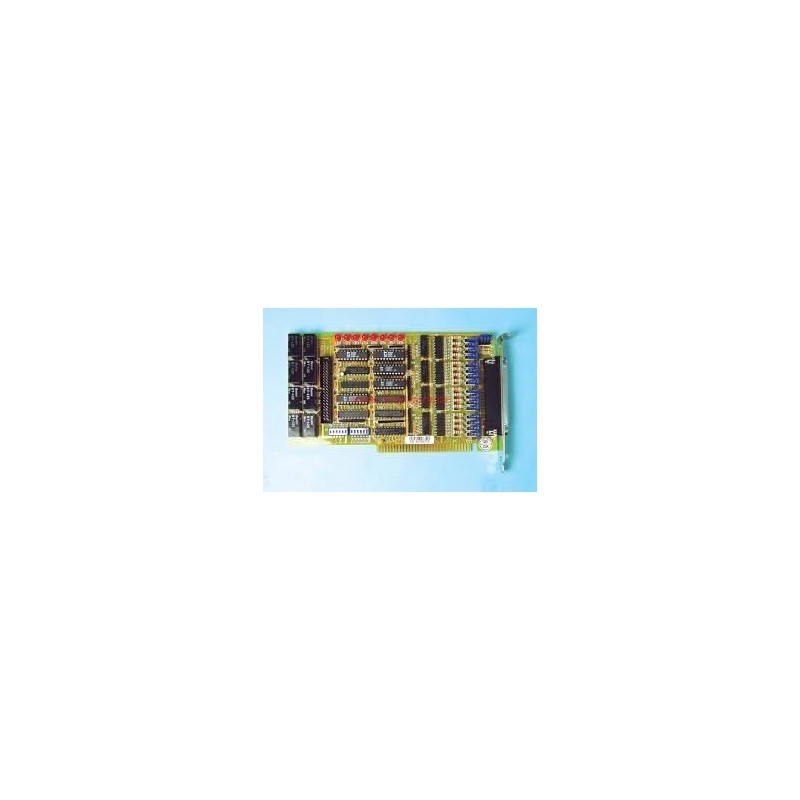

8 Relay outputs + 16 optoisolated digital inputs

Spare part

Each Channels Can be software programmed to be input or output
Software routines provided Easily Link to High Level Programs
Switch Selectable Interrupt Level (IRQ2 ... IRQ7)
Presentable de-bounce time in interrupt fashion
10k pull-up resistor for each channel

inlog pi-426

REL8OPT16
1,906.00 DKK
Tax excluded
Quantity
Physically in stock

  • Download PDF
  • file_download Downloads
  • live_help Ask a question

16 Optically Isolated Digital Inputs
And 8 Relay Outputs

Digital Input:
Input Channel 16 Optically isolated channels (2 ports)
Input Mode: Voltage or dry contact input
Voltage Input:+1.5VDC(low) /+3VDC to 24VDC(high)
Dry Contact Input: External or internal +12VDC

Relay Output:
Output Channe: 8 Channels
Relay Type: DPDT electro-mechanical DIP relay
Terminal Form: Normal-Open, Normal-Closed, Common
Max. Contact Rating: 220V Voltage:
DC/AC Current:  1A DC / 0.5A AC

Mechanical:
Dimensions: 1180.0 mm X 107.2 mm
Net Weight: 140 g
Board Type: 2 layer P.C.B
Power Supply: +5V, +12V
Consumption: +5V@200 mA max, +12V@ 400 mA max

Environmental:
Operating Temp.:32 to 140F(0 to 60° C)
Storage Temp.:4 to 248F(-20 to 120° C)
Humidity: 10%~90%

Software:
Furnished utilities diskette contains routines,
examples and calibration programs.
Allows foreground or background operation.
Provides comprehensive C, Basic, Assembly libraries
