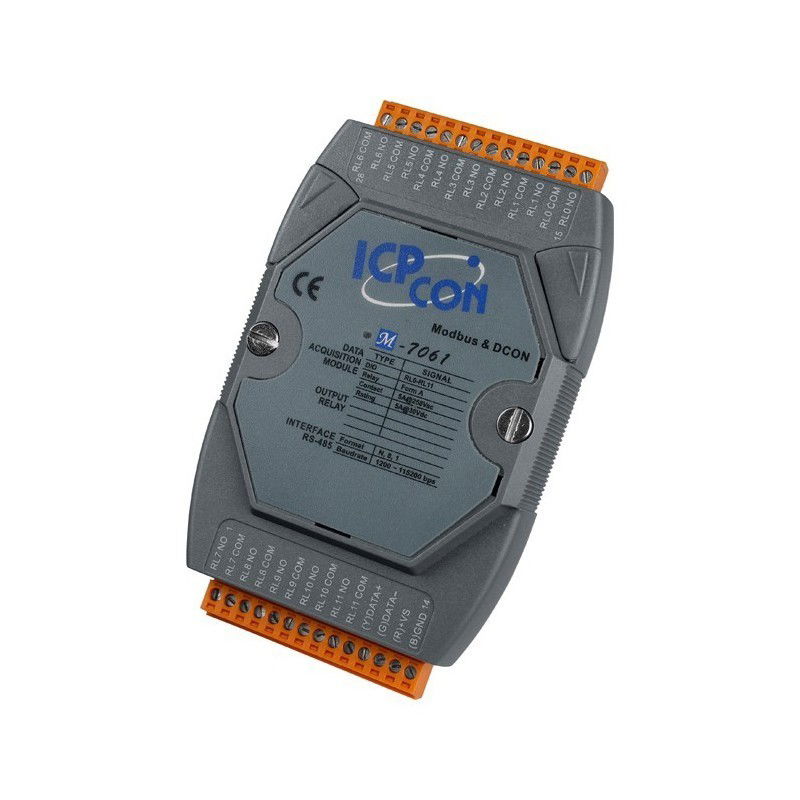

12 x Power Relay Module to 30VDC 5A 250VAC 5A, RS485 bus, MODBUS / RTU / DCON, 10 - 30VDC 2.5watt
12 channel power relay output module
RS485 to MODBUS
Communicates via MODBUS RTU
Operating temperature -25 ° -75 ° C
4 kV EFT protection
3 kV Surge Protection
for wall or DIN rail mounting
With 12 power relay output channels. There are options to configure boot and secure values. 4kV ESD protection and 3750 VDC isolation within the module comes also to improve noise protection functions in the industrial environment. "D" -versionerne has 12 LED indicators. "M" -versionerne of each series supports both Modbus RTU and DCON protocols that can be configured via software. Is the ideal solution for applications with high power
- Baudrate
- 1200 ~ 115200 bps
- Beskyttelse
- EFT: ±4 kV for Power Line, Surge: ±3 kV for Power Line
- Dimensioner
- 72 mm x 123 mm x 35 mm
- Driftstemperatur
- -25 ~ +75°C
- Forsyning
- Input Range 10 ~ 30 VDC, Consumption: 1.7 W- 2.3 W
- Interface
- RS-485
- Isolation
- 3750 VDC
- LED
- Yes, 12 LEDs as Digital Input/ Relay Output Indicators
- Montering
- DIN-Rail or Wall Mounting
- Protokol
- Modbus RTU, DCON
- Relæ
- 12 (Form A) power relay, Rating: 5 A @ 250 VAC 5 A @ 30 VDC, Load 10 mA @ 5 V
- Watchdog
- Yes, Module (1.6 Seconds), Communication (Programmable)
