Long Range Wireless RS232/RS485 transceiver up to 20km

Freqency 433MHz
Transmitting power 37dBm
Receiving sensitivity -130 dBm
Distance up to 20km
Interface RS232/RS485
2 devices needed for single transparent transmission
Baud rate: 1200~115200, default: 9600
Power input: 8-24VDC
Operating temperature: -40  to 85℃

1,850.00 kr
Excl. VAT
Quantity
On the way in
LÆG I KURV
Product number BOOST-SER-LORA
Get Volume Offer
close

Get Volume Offer


file_download DOWNLOADS
Ask a question
close

Stil et spørgsmål





Download PDF

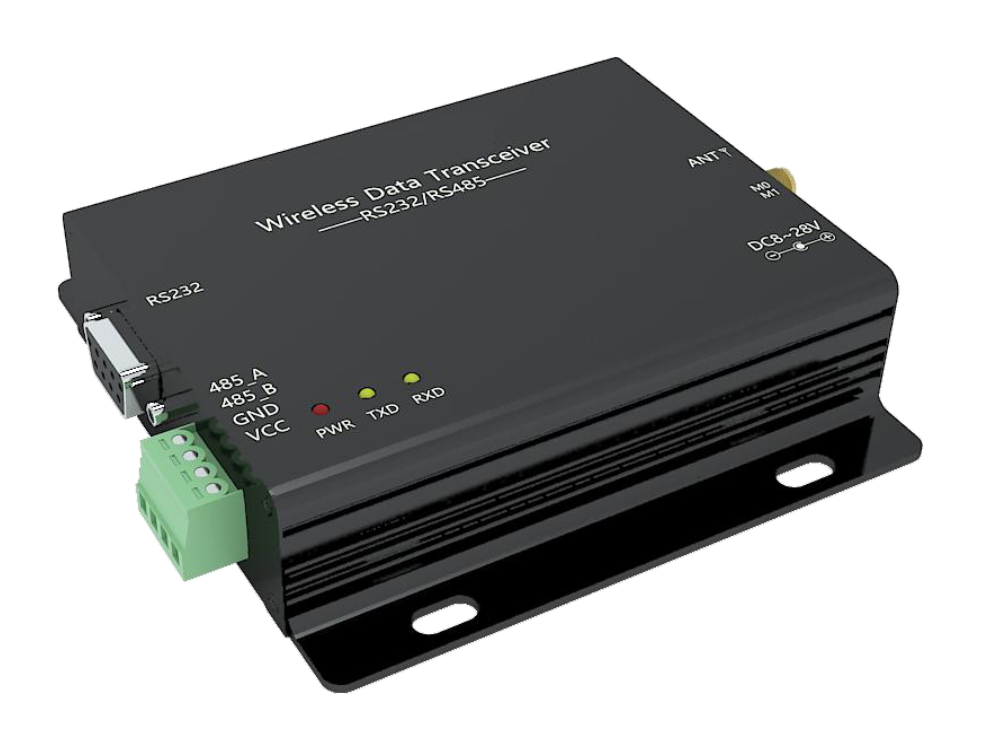

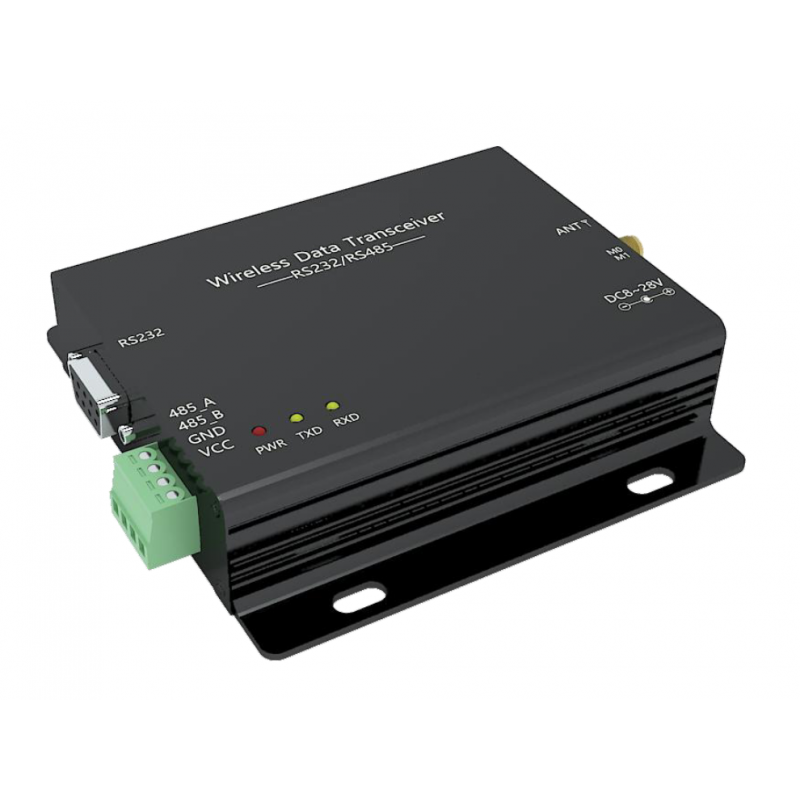

BOOST-SER-LORA is a high-speed 433M wireless data transmission station (with RS232/RS485 interface), LoRa spread
spectrum technology, transparent transmission mode, operating in  433MHz, operating voltage range of
8V~28V.
LoRa direct sequence spread spectrum technology will bring longer communication distance, and has the advantages of
concentrated power density, strong anti-interference ability. The module has software FEC forward error correction algorithm, which
has high coding efficiency and strong error correction ability. In the case of burst interference, it can actively correct the interfered data
packets, greatly improving the reliability and transmission distance. In the absence of FECs, such packets can only be discarded.
The module has the function of data encryption and compression. The data transmitted by the module in the air has randomness, which
makes the data interception meaningless through strict encryption and decryption algorithm. The data compression function has the
probability to reduce the transmission time, reduce the probability of interference, improve the reliability and transmission efficiency.
