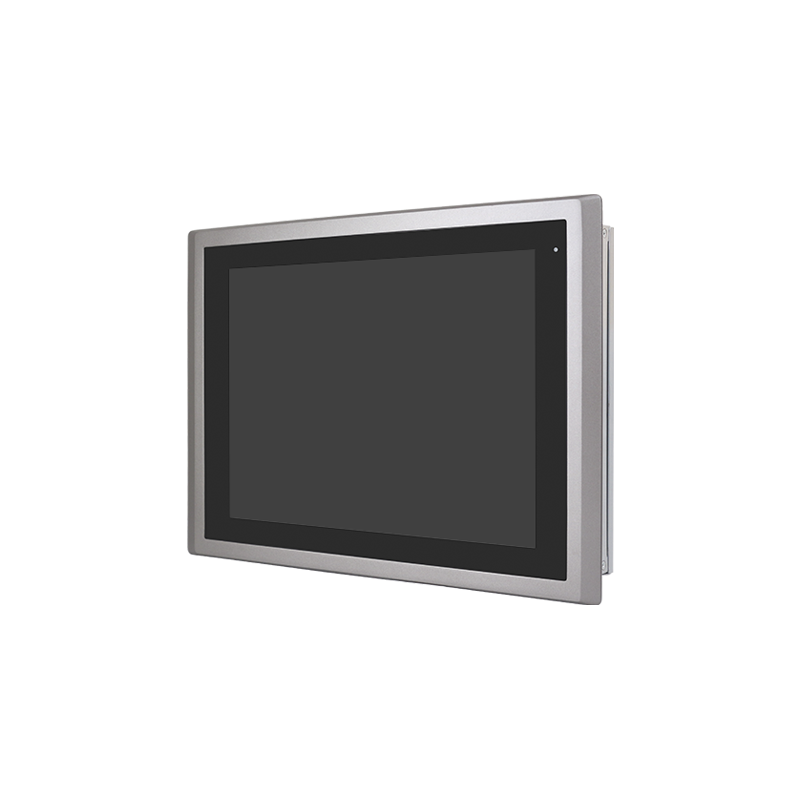

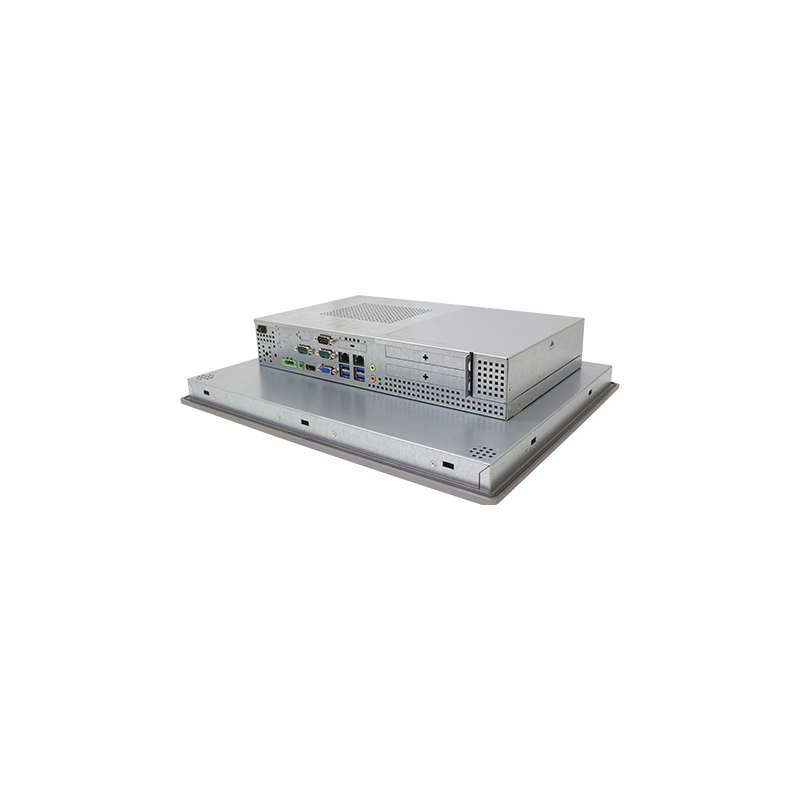

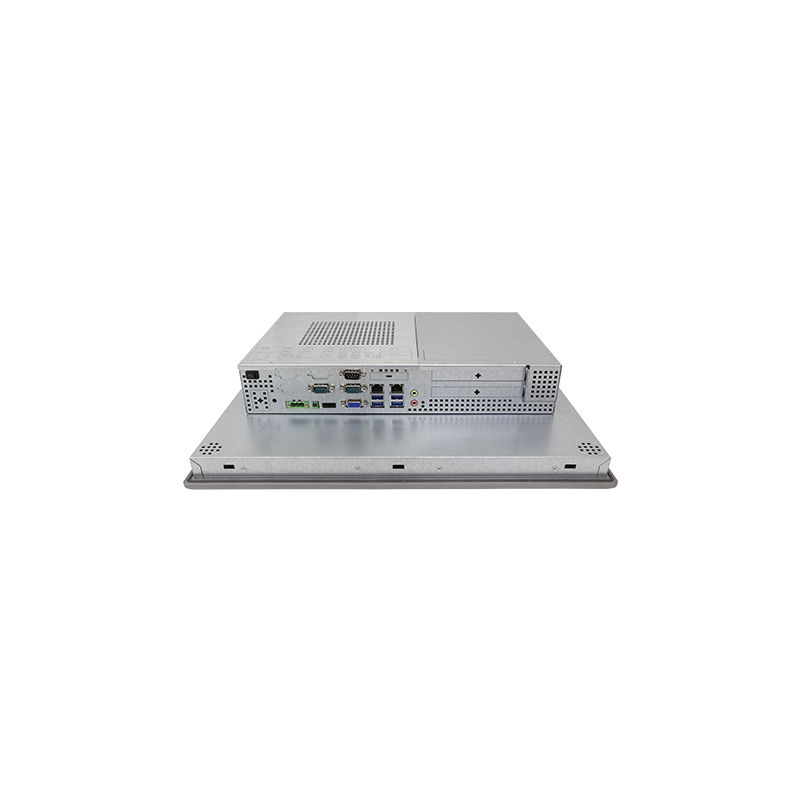

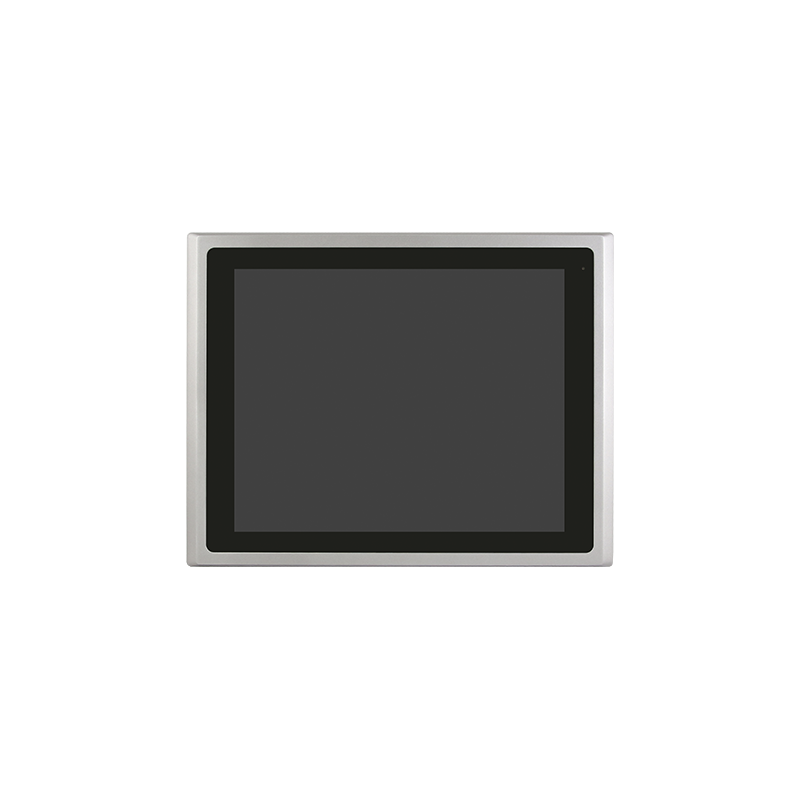

17 "Panel PC with steel front, Intel Core i3 / i5 / i7 with 2x PCIe expansion (can be dlivered with 1000nits)
17" TFT-LCD 1280x1024
Panel mounting
Touch: Standard projected capacitive, on order: Resistive or glass
Contrast 800:1 standard (on order: 1000:1 nits)
8th generation Intel Core Celeron, I3, I5, I7 support
1 x 260-pin DDR4 SO-DIMM socket up to 32gB 2400MHz
4x USB 3.0 type A
2x GbE LAN
Sound in/out
IP66 front
1 x HDMI
1 x VGA
2x 2.5" SATA RAID 0,1,5 support
3x COM (1xDB9 RS-232/422/485, 1x DB9 RS232, 1x DB9 RS-422/485)
1 x Mini PCIe full size (PCIe/USB/SATA)
1 x Mini PCIe half size (PCIe/USB)
1x SIM slot for (wifi/BT/4G)
1x PCIe1 and 1x PCIe x16 slot.

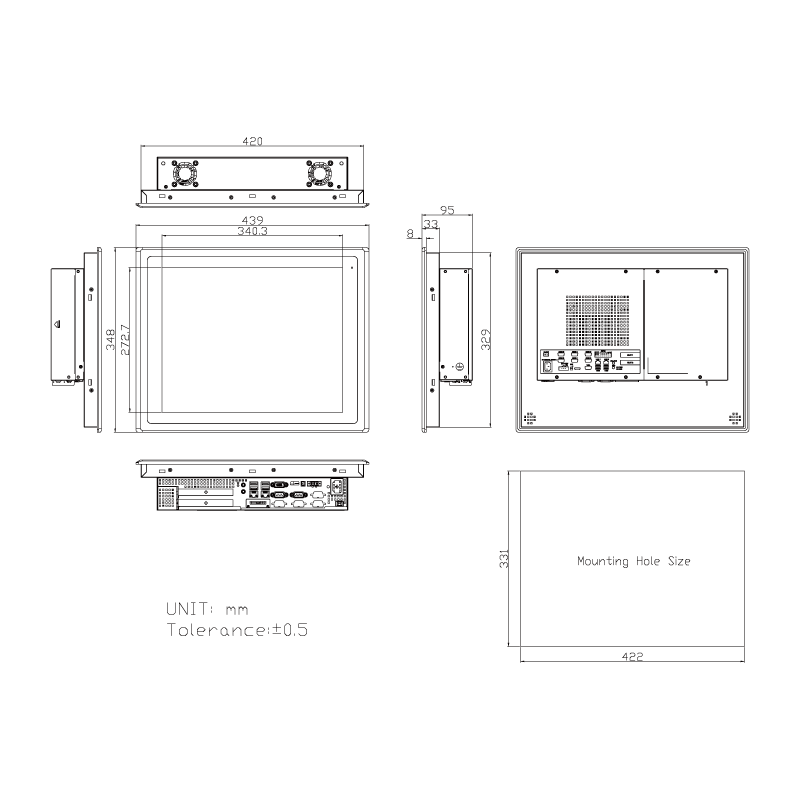

439x348x64.8mm
CE/FCC Class A
Working temperature 0~50 degrees
Possibility of external ON/OFF via. 2-pole plug
Wide range DC 9 ~ 36V power input
Supports Windows 10 IoT, Windows 11
Call +45 56 66 20 20 for price
Quantity
On the way in
Product number IPP17-I8+PCIEX
Specifications
Approval | CE / FCC Class A |
---|---|
Dimensioner | 439x348x95mm |
Ethernet | 2 x GbE LAN RJ-45 |
Forsyning | DC 9~36Vdc |
IP-Tæthed | Front IP 66 |
Luftfugtighed | 10 to 90% @ 40°C, non- condensing |
Lyd | 1 x Mic-in, Line-out |
OS SUPPORT | WIN 7, Windows 8.1, Windows 10 IOT Enterprise |
Porte | 1xDB9 RS232, 1xDB9RS232/422/485, 1x RS422/485 |
Skærm | LCD Size 17" TFT-LCD Max. resolution 1280 x 1024 Max. color 16.7M Luminance(cd/m²) 350 Viewangle(H°/V°) 170 (H) / 160 (V) Contrast 1000: 1 Backlight lifetime(hrs) 30,000 hrs |
SSD | 2x2.5" HDD/SSD |
Temperatur | Operating temperature(°C) 0~50°C Storage temperature(°C) |
Touch | Touch Type Resistive Touch Screen/Projected Capacitive Touch Screen Interface USB Light transmission(%) Over 80%(Resistive) / Over 90%(Projected Capacitive) |
USB | 4 x USB 3.0 Type A, 2 x USB 2.0 Type A by cable (option) |
Weight | 7.6Kg |
Can be delivered complete with CPU, SSD, RAM and OS. contact our sales department regarding solutions.
