Danbit have a large selection of screens and distributor anywhere from 6 "to large displays for offices, medical, industrial use mm.
General on 4: 3 or 5:4 aspect ratio:
Often you want a 4: 3 TFT led screen to older solutions where the graphics are not to widescreen. But if you eg. want a resolution is 1280 x 1024 then it a 5: 4 format screen you need. Most people believe erroneously that it should be a 4: 3 but it is 1280x960.
Ex. A screen with 4: 3 format.
Resolution 1280/4 = 320, 320x3 = 960 hence resolution of 1280x960
A screen with 5:4
Resolution 1280/5 = 256, 256x4 = 1024 thus resolution of 1280x1024
But note a screen with 5: 4 can be used to 1280x960, but there comes a slightly wider black stripe on the side of the screen.
19 "TFT Screen
Touch
Vulnerable
IP65 Closed
Stainless Steel Cabinet
VESA Mount
Waterproof Cables
Waterproof Plug Connector at the Base of the Cabinet.
12VDC, AC Adapter
24 "LCD / TFT Display
1920 x 1080P Full HD - 16: 9 Format
Widescreen
HDMI, DVI-D and VGA Input
With VESA100 Mounting Holes
19" TFT touch screen
With foot and VESA mount
VGA, HDMI, BNC
1280 x 1024 - 5:4 format
Resistive Touch resistive (USB)
Power supply: 12VDC (supplied)
OS SUPPORT: DOS / Win 9X (95, 98) / ME / CE / NT / XP / 7 / 8 / 10
Please note that the data may change continuously due to the rare model. Contact sales for special requirements.
19" TFT LCD screen diagonal 48.3 cm
Format 5:4
VGA, DVI-D
1280 x 1024 resolution
411 x 209.5 x 547mm (WxDxH) with foot
Black
Note version may vary. CONTACT sales for specific requirements
19 "TFT monitor, chemical resistant steel cabinet
Touch display (RS232)
1280 x 1024 - 5: 4 format
Brightness 400 cd / m²
VGA (DB15HD connector)
480x400x61 mm (HXWXD)
230V AC / 12V DC / 4.16A PSU included
VGA and DB9 cable included

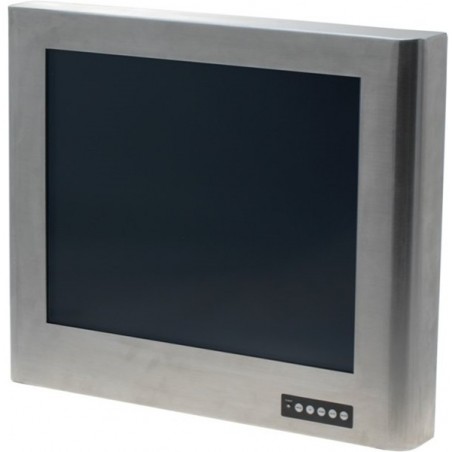

17 "TFT monitor - stainless steel cabinet
full IP67
Touch
1280 x 1024 - 5:4 format
Brightness 300 cd/m²
VGA, DB15HD
VESA75
450 x 378 x 62 mm (H x W x D)
Weight: 7.5 kg
Supply voltage: 12VDC
230V AC / 12V DC / 1.5A PSU incl.
Special cables with IP67 sealed connectors are included.
17 "LCD flat screen, seen in heavy sunlight
1000 CD / m2
high brightness
1280 x 1024 (4:3)
LED Backlight
Response time: 5ms
VGA + DVI input
VESA 75
3.5mm audio input
2 x 2W Speakers
Power supply: 110-240 VAC
Dimensions: 380.2 x 318.3 x 59.8 MM
Option: Touch. Contact Our sales department for price
can be supplied with other video inputs.
17 "LCD Screen 5: 4 Format
Foot and VESA mount
VGA, DVI-D
1280 x 1024
Audio Speaker Built-in
230VAC / 12VDC / 1.2A PSU included.
Note model may vary
17 "LCD monitor
Resolution: 1280 x 1024 to 4: 3 format
IP65 front
250 nits
USB / RS232 resistive Touch
1 x DVI-D, 1 x VGA, 1 x HDMI
1 x USB to the touch
Panel/wall/rack mounting or desktop
Dimensions: 58 x 410.31 x 338.31 mm
AC 230V
Weight: 3.8 kg without packing / 6,56kg packed
17" LCD Monitor
Resolution: 1280 x 1024
4:3 Format
IP65-Front
250 Nits
USB Resistive Touch
1 x DP
1 X VGA
1 x HDMI
1 x USB to Touch
Panel / Wall / Rack / Desktop Mounting (Accessories)
Dimensions: 410 x 58 x 338.3 mm
Supply voltage: 24VDC or 230VAC (option)
Weight: 4.45kg without packaging, 6.71kg packed
15" LCD Monitor
Resolution: 1024 x 768
4:3 Format
IP65-Front
420 Nits
USB RESISTIVE TOUCH
1 x DP
1 x VGA
1 x HDMI
1 x USB to Touch
Panel / Wall / Rack / Desktop Mounting (Accessories)
Dimensions: 377.9 x 309.3 x 58mm
Supply voltage: 24VDC or 230VAC (option)
Weight: 3.7kg
Operating temperature: 0 ~ + 50 ° C
12” LCD screen - transflective, readable in sunlight
IP65 sealed front
VGA
Panel mounting and VESA75/100
XGA: 1024 x 768 - 4:3
touch resistive (RS232)
110-230VAC/12VDC 2A PSU included.
Dimensions: 274 x 324 x 45mm
10.1" TFT 1280x800 (16:10)
Front panel IP66 Standard / IP69K Option
Aluminum cabinet
VGA, DVI, HDMI and DP Input
Supply voltage: DC 9 ~ 36V
Contrast : 800:1
Brightness: 350 Nits Standard / 1000 Nits Option
Touch Via USB: Projected Capacitive Standard / Resistive Option / No Touch Option
Touch Via RS232: Option
VESA 100 and Panel Mount
Dimensions: 285 x 189 x 48.9mm
Weight: 1.9 kg
Operating temperature: 0 ~ +50°C Standard / -20 ~ +60°C Option
IP65 tæt fleksibelt LED display Kan bøjes i S-formet format
Udendørs LED display Opbygget af flere skærmmoduler uden kanter. Perfekt til stadions og reklameskilte
