Panel screens / Panel monitors are TFT / LCD monitors in a very robust package, where the cabinet is often made of steel. Panel screens are designed to fit into an industrial enclosure so that only the front and front bezels are visible. Almost all panel displays have an IP65 close to the front and with the right rubber gasket between the front frame and box, the result can be an industrial monitor for food-producing companies. The front glass is preferably tempered glass that can withstand the demanding environment.

Some panel displays have touch screens. Here it is the most common type of resistive touch, as it can only be affected by weak pressure. There are several touch principles, ranging from IR raster to projected touch (eg touch through a shop window).

Panel
There are 51 products.

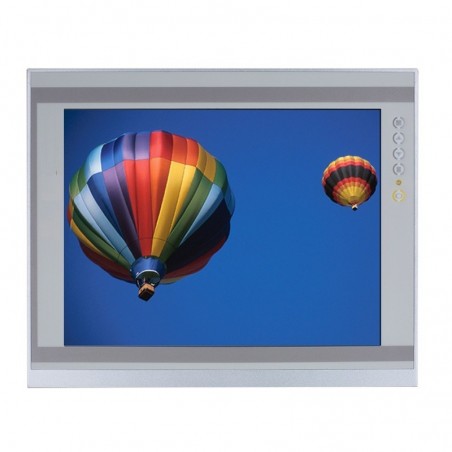

15 "Waterproof screen for panel mounting

15" LCD Monitor
Resolution: 1024 x 768
4:3 Format
IP65-Front
420 Nits
USB RESISTIVE TOUCH
1 x DP
1 x VGA
1 x HDMI
1 x USB to Touch
Panel / Wall / Rack / Desktop Mounting (Accessories)
Dimensions: 377.9 x 309.3 x 58mm
Supply voltage: 24VDC or 230VAC (option)
Weight: 3.7kg
Operating temperature: 0 ~ + 50 ° C

Call +45 56 66 20 20 for price
Item number MON15-P-TU
On the way in
21.5" Panel monitor 1000nits is powerful brightness, PCAP. Comes with VESA or panel mounting HDMI, VGA, AV

21.5" TFT 16:9
Metal chassis
Control panel is behind the front
IP65 only on the front
Resolution: 1920x1080
10-point PCAP Touch
Nits 1000cd/m² high brightness
Supports multiple video input interfaces: HDMI 1.4b, VGA, AV
2 speakers
Supports HDMI 4K30p, 2160p 24/25/30, 1080p 24/25/30/50/60 Hz
Supports Windows XP/7/8/8.1/10, Android, Linux and MAC OS (touch driver)
Front frame dimensions: 556 x 344.5 mm
Depth: 48.2 mm
Cutout dimensions: 540 x 330 mm
Mounting clip included
12-24VDC (≤37W (15V)) - PSU included
CANNOT STAND DIRECT SUNSHINE! (requires optical bonding)

5,156.00 kr
Item number MON21.5"TFT-1000NITS
Physically in stock
15.6" TFT 1000nits monitor, high brightness with VESA mount or panel mount 12Vdc - 24Vdc

15.6" TFT LCD
16:9 format, 160° / 160° (H/V)
10 Point Capacitive Touch, (can be delivered without touch)
1000 Nits brightness suitable in strong light
4k30p, 1920x1080 resolution
1 x HDMI 1.4b (2150p, 24/25/30, 1080p 24/25/30/50/60
1 x VGA input
1 x AV input
Sound 3.5mm jack plug - 2ch 48KHz 24-bit
2 x Built-in speaker
IP 65 front panel
408x259x36.5mm
Vesa mount 75mm/100mm or panel mounting
2.9 Kg
Working temperature -20°C~60°C
Supply voltage DC 12-24V (≤24.5W (15V))

4,494.00 kr
Item number MON15-T-HB
On the way in
10" Industrial Touch Monitor to Panel and VESA Mount

10.1" TFT 1280x800 (16:10)
Front panel IP66 Standard / IP69K Option
Aluminum cabinet
VGA, DVI, HDMI and DP Input
Supply voltage: DC 9 ~ 36V
Contrast : 800:1
Brightness: 350 Nits Standard / 1000 Nits Option
Touch Via USB: Projected Capacitive Standard / Resistive Option / No Touch Option
Touch Via RS232: Option
VESA 100 and Panel Mount
Dimensions: 285 x 189 x 48.9mm
Weight: 1.9 kg
Operating temperature: 0 ~ +50°C Standard / -20 ~ +60°C Option

Call +45 56 66 20 20 for price
Item number MON10.1-TFT-T
On the way in
Showing 41-51 of 51 item(s)
