Panel PC

24" TFT Full HD 16:9 LCD with Projected Capacitive Touch
Max. Resolution1920x1080
​Designed with Aluminum Die-Cast Front Frame
IP65 Compliant Front Panel
1x USB, 1x COM, 1x VGA, 1x DVI-D, 1x DisplayPort, 1x Audio
Built-in Two 5W Internal Speakers
Convertible Display System (CDS) Supported
Supports Panel / VESA / Rack Mounting
OPTION! (Resistive 5-wire Touch / Glass)
9~48VDC via 3-pin Terminal Block

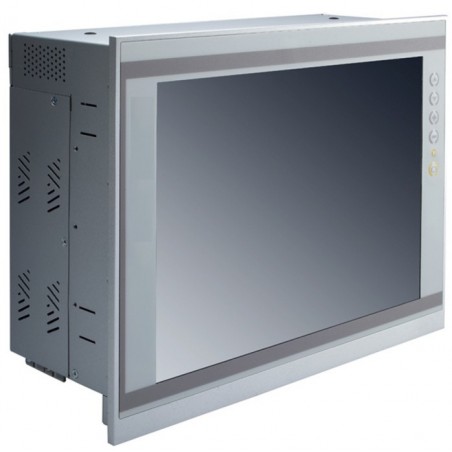

12.1 "Industrial Panel PC
Intel Celeron N2930 (1.83GHz), 4core, 4 Threds, CPU built
Onboard 4GB DDR3L 1333MHz max. 8GB (optional)
Flat front panel
P-CAP Touch
Fanless Design
DC 9 ~ 36V wide-ranging Power Input
IP66 front
3x USB
1x DB9 (RS232 / 422/485), 1 x DB9 RS232.
Option: high brightness 1000 nits
Option: 4G LTE / Wi-Fi / BT expansion
Option: UPS built-
Option: Isolated RS232 / 485.

17" 1280 x 1024 (SXGA) TFT-LCD
True Flat IP65 Compliant Front Panel Protection
Resistive Touch
Intel® Core ™ I3-8145ue Dual Core Processor (4M Cache, op til 3,90 GHz) (Standard)
Intel® Core ™ I5-8365 quad Core Processor (6M cache, op til 4,10 GHz) (option)
2x DDR4 SO-DIMM Socket, Supports Up to 2400MHz, 64GB
Integrated USB 3.2 Gen 2 supports up to 10Gbps
M.2 E Key Socket for Wireless Module or Intel CRF Module
Supports Ignition Sensing Function (IGN) (optional)
Supports 2x PoE+ Function (optional)
Designed with Rugged Aluminum Die-casting Front Bezel
Supports Panel/VESA/Rack Mounting
9~48VDC via 3-pin Terminal Block

17" TFT SXGA 5:4 LCD capacitive touch
Pentium N4200
1x DDR3L SO-DIMM MAX. 8GB RAM (supplied without, get price with ram)
Resolution Up to 1280 x 1024 (SXGA)
350 nits Brightness
Designed with Aluminum
IP65 Compatible front panel
1xVGA, 1xDP (triple display)
1x 2.5" SATA Drive (supplied without, get price with SSD installed)
1x MSATA
2x LAN RJ45 Intel I210 (POE OPTION ADD ON)
4x USB 3.0
4x RS232/422/485
8x Isolated DIO
2x Mini-PCI
SIM Socket
SUPPORT OS: WINDOWS 10/11
9~48VDC via 3-pin Terminal Block

32" LCD
J1900 CPU
64GB SSD
4GB RAM
resolution 1920x1080
High nits: 1500
Light sensor
IP65
WiFi
Ethernet
Wall mount
Kg 55
-20 ^o -45 ^o C
110/240vac
865x610x300 mm (wxhxd)
Windows 10 support
Without touch!

21.5" PC in stainless steel
1920x1080 250nits, (Special request 1000Nits for sunlight use)
I3 or I5 CPU
RAM max. 64GB
M.2 1 x 2280 (sata default, PCI-e selection in BIOS) for SSD
USB 1x M12 waterproof
COM 1x M12 RS232/422/483 (default RS232) waterproof
Lan 1x M12 waterproof
1x Full size mSATA/mPCI
1x NANO SIM
1x m.2 E-Key 2230 (PCIe+USB) for WIFI/BT module
easy-to-clean front design
Grade 304 stainless steel cabinet
(option 316 Stainless steel cabinet can be ordered on request)
IP66 / IP69K IP
M12 connector
Can be ordered with Resistive Touch, Projected Capacitive Touch and Glass (specified when ordering)
Press the on/off button on the side edge for hygienic reasons
100x100 Vesa mounting
Yoke Mount (is without stand, must be ordered separately)
571 x 362 x 55 mm
0~50°C
DC 9~36V
CE/FCC Class A
OS Support: Windows 10 IoT ENT LTSB, Windows 11

23.9"  Stainless Steel Panel PC
8th Gen Core i5-8365UE 1.6GHz,  or Core i3-8145UE  2.2 Ghz
1 x 260 SO-DIMM DDR4 2400MHz max. 32GB RAM
TPM 2.0
1 x M12 Ethernet
1 x M12 RS232/422/485 default 232
1 x M12 USB 2.0
1 x 2½" SATA3 SSD  (opt)
1 x M.2 ;M-key (PCIe x4/SATA3 Auto detect), Support 2242 default
RFID mpdul design for fron as OPT. (need to be ordered)
1 x Mini PCIe for 4G/5G. Wifi/BT
1 x Nano sim socket
easy to clean Design
Grade 304 Stainless Steel Enclosure
(Option 316 can be ordered special)
IP66/IP69K IP
M12 Connectors
Standard 250 nits, (High Brightness on request 1000 nits)
Resolution 1920 x 1080
Can be ordered with Resistive Touch, Projected Capacitive Touch, and Glass (Specified when ordered)
Touch on/off Button on the Side Edge for Hygienic Cleaning
Special order can be with 2 x M12 spare for (2x USB2.0 or 1 x USB 3.0 or 1 x LAN or 1 x COM)
Vesamount
YOKE-Mount as opt.
DC 9~36Vdc
OS support: WIN 10 / WIN 11

Fanless and rugged design
7th Gen Intel® Core™ i3 7100U / i5 7300U / i7 7600U CPU
Resolution 1280 x 1024 dpi
5 Wires Resistive touch solution
Full 304 IP65 6 sides stainless enclosure
All IP65 M12 waterproof connectors
1 x USB, 2 x RS232, 1 x GLAN
VESA mount Yoke mount
Full 316 IP65 6 sides stainless enclosure optional
Optical bonding, high brightness sunlight readable solution
OS SUPPORT:WIN10 pro/ embedded/ IOT/ Linux Fedora 25, Ubuntu 16.04

Processor Intel® Celeron® Processor N3350
Intel® Apollo Lake SoC with integrated chipset
Projective capacitive touch screen
Full Flat Design
Waterproof ON/OFF Button
2 x USB
1 x COM (DB9)
1 x LAN Metallurgy Waterproof Connector
Full System IP65, IPX9K
Addons must be ordered separately: NFC / WiFi / auto dimming / high brightness Solution​

21.5" Industrial Compact Size Panel PC
Flat Front Panel Touch Screen
Fanless Design
Intel 6th Gen. Core i3 (Standard) / I5 (option) CPU Built-in
1 x 260pin SO-DIMM DDR4 up to 16GB 2133MHz
DC 9 ~ 36V Wide-Ranging Power Input
Optional Projected Capacitive Touch Screen Support 7H Anti-Scratch Surface
High brightness 1,000 nits for option

Remote RAID Controller U2W Channels

21.5" Stainless steel Panel PC
TFT 1920x1080
6th Gen. CPU i3/i5 CPU support
Max 16GB RAM
M12 8 pin connectors
2x USB 2.0, 1 x USB 3.0
1 x COM
1 x CAN
1x LAN (POE IS OPTION)
Flat Front design
Stainless steel grade 304. (option 316)
Touch option Resistive, Projected Capacitive, Glass
ON/OFF on side
Vesa mount 100x100, Option Yoke Mount
571x362x55 mm
​10KG

Komplet bestykket panel PC
21.5" LED TFT
Uden OS
OS support WIN7, WIN 10 iot 64Bit
2.4GHz Core i5 CPU.
120GB SSD

17" TFT-LCD 1280x1024
Panel mounting
Touch: Standard projected capacitive, on order: Resistive or glass
Contrast 800:1 standard (on order: 1000:1 nits)
8th generation Intel Core Celeron, I3, I5, I7 support
1 x 260-pin DDR4 SO-DIMM socket up to 32gB 2400MHz
4x USB 3.0 type A
2x GbE LAN
Sound in/out
IP66 front
1 x HDMI
1 x VGA
2x 2.5" SATA RAID 0,1,5 support
3x COM (1xDB9 RS-232/422/485, 1x DB9 RS232, 1x DB9 RS-422/485)
1 x Mini PCIe full size (PCIe/USB/SATA)
1 x Mini PCIe half size (PCIe/USB)
1x SIM slot for (wifi/BT/4G)
1x PCIe1 and 1x PCIe x16 slot.
439x348x64.8mm
CE/FCC Class A
Working temperature 0~50 degrees
Possibility of external ON/OFF via. 2-pole plug
Wide range DC 9 ~ 36V power input
Supports Windows 10 IoT, Windows 11

EN50155 certification
Optical bonding
Front bezel IP65 and full IP54 protection
Movable and programmable membrane keypad
24V DC power input with M12 connector, 48V DC, 72V DC or 110V DC as options
​Two M12 LAN ports and one M12 USB port
Additional rack mount kit

21.5 TFT LCD 1000 nits. (Available with Alm 250 CD / M2)
Intel 6/7 Gen CPU I3 / I5 / I7. Active cooling
H170 chipset
max. 32GB RAM, 2x260 Pin So-Dimm DDR4 2133 MHz SDRAM
4 x USB-A 3.0
2 x RJ45 Gbit Ethernet
2 x RS232 / 422/485, 1 x RS232 DB9
MPC extension
2x Pcie X1 / X16
RAID Support
IP66-rated Front
OS Support: Win Embedded 7, 8.1 Windows 10 IoT

15" til 21.5"
CPU N2930, i3/i5 Gen.6
1 x Mini PCIe (udvidelse)
M12 Interfave til VGA, USB, RS232/422/485 (vantætte stik)
450 til 1000 cd/m2 lysstyrke
Max opløsning fra 1024x768  til 1920x1080 afhængig af skræemstørrelse
Projected Capacitiv Touch
Forsyningsspænding DC 9~36V
316 Stainless Steel
Vesa mount eller Panel Mount
GODKENDELSER:
CSA C22.2 No.61010
CE / FCC Class A, ATEX Zone2 Ex nA ic IIC T4 GcClass I, Division2, Group ABCD T4ANSI/ISA 12.12.01-2013CSA Std. C22.2 No213-1987

10.1” Stainless Steel Panel PC
350 cd/m2
Intel Celeron N2930 1.83 GHz Onboard Processor
8GB Onboard DDR3L SDRAM max. 8GB total
Flat front frame Design
grade 304 stainless steel housing (Grade 316 is Option)
IP66 / IP69K Rated with M12 connector
Support resistive touch, expected capacitive touch, and Glass Touch
on / off button on the side Edge for hygienic cleaning
Support Ergonomic Versatile Mounting: Yoke Mounting / Space-saving VESA 75 x 75 mm Mounting
OPTION HIGH BRIGHTNESS 1000cd/m2

21.5 "Industrial Panel PC
Projected Touch
Intel Celeron N2930 1.83 GHz
Mounted with 4GB RAM DDR3L (Option 8GB)
2xusb 3.0
2x RS232 (1 Support RS232,422,485)
IP66 Front
DC 9 ~ 36V Supply
Measure 557.3x362.3x64.8mm

Built To Order
17 "Panel PC (optional: 15" / 19 "contact us)
Option: CPU Intel 6th gen. Core i3-6100 or I5
4GB 1 x SO DIMM DDR 3L (option 8GB)
Projective Capacitive Touch (pcap)
1x USB2.0 M12 8 pin
1x RS232 / 422/485 COM1 M12
1x Ethernet M12
1 x POWERM13 3 PIN 9 ~ 36V DC
1 x 2.5 "SATA SSD
1 x mPCIe slot for Option: Wifi / BT
Available with OS, RAM, CPU, SSD installed
Option: RFID on the < br> Option: 1000nits
Option: 2 x M12 can be used to ONE of the following extensions:
2x USB2.0
1x USB 3.0
1x LAN
1x COM
1x CAN
