PoE - Power over Ethernet
PoE supply voltage for clients via network cables as separate power supplies for example. surveillance cameras and serielportservere is unnecessary. PoE equipment is designed to receive the supply voltage via network cables. Often PoE also be supplied from an independent power supply. Cable lengths can restrict the use of PoE. A new standard called PoE Plus (IEEE 802.3at) can deliver more power than the current PoE standard (IEEE 802.3af). Further information about PoE is available at https://www.danbit.dk/da/content/41-hvad-er-poe-
General info about midspan and endspan
PoE standard IEEE 802.3af allows the use of two types of power supply units: endspan and midspan. < p> A endspan unit (PoE switch) typically supplies power via the data leading wires of the network cables (pins 3 and 6, 1 and 2) and is available for 10 / 100Mbit and 10/100 / Ethernet 1000Mbit sources. A endspan unit is a combined midspan injector and switch. It is installed in place of an ordinary switch, if the connected network devices to be powered over the network
A midspan injector (hub) installed between a non PoE switch and the power consuming device. It is restricted to supply power through the unused pin pair (4, 5, 7 and 8) in a 10 / 100Mbit network.
Ethernet med PoE over RG59 Coax-kabel - VDSL princip.
Forlæng PoE-forbindelsen op til 500 m via Coax kabel
Egnet til IP kamera m/Poe over eksisterende Coax-kabler.
10/100 / 1000Mbit PoE Network Extender
Extend the network cable with PoE over the magic 100 meters
Extenders are powered from PoE and pass PoE on to the next Extender
Dimensions: 94 x 70 x 26 mm
PoE In: Max 95 Watts
PoE Out: Max 65 Watts
Weight: 189g
PoE Extender up to 500 meters
Max speed 100Mbps
Automatic speed control
Consists of Local and Remote Module
The connection is Coax cable
Local module powered from PoE source or DC input
DC input: 48-56VDC
PoE power: 30 Watts
Dimensions: See drawings
Temperature: -20 - +60°C
Stock clearance Sale

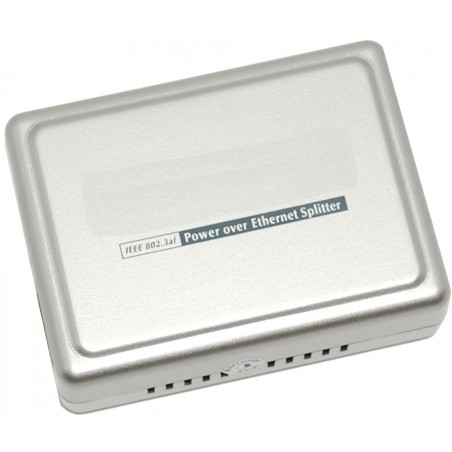

poe data and voltage splitter.
PoE in
switch to 5VDC or 12VDC
Max. Effect 15Watt
Speed: 10 / 100mbit RJ45
Compact design
Output 54VDC vlotage for PoE device use
Space for PoE switch / PoE Surge protector installation
IP66 rated
Include Thermal Switch control heater and blower
Include fiber panel for fiber cable connection
Battery protection for deep discharge and short circuit
Space for 12V/7Ah Battery x 4PCS
Strømforsyning af Access Point eller webkamera via Ethernetkablet.
PoE++ power supply via Ethernet cable, up to 95 Watt
LAN without PoE in, gives LAN with PoE out
PoE++ 54VDC/95W
Mid-span and End-span give 95 Watts
For 100/1000/2500/5000Mbit networks.
PoE power output DC 24V~54V input: Max. 89.5W@1m cable, Max. 75W@100m cable
PoE power output DC 12V input: Max. 60W@1m cable, Max. 52W@100m cable
Temperature range: -40 - +75°C
Dimensions: 135 x 88 x 32 mm
DIN installation
Powersupply input from 12 - 54VDC
PoE++ power supply via Ethernet cable, up to 60 Watt
LAN without PoE in, gives LAN with PoE out
PoE++ 48-53VDC/60W
Mid-span and End-span give 60Watt
For 100/1000/2500/5000Mbit networks.
Power is supplied from 48 - 54VDC
Temperature range: -40 - +75°C
Dimensions: 135 x 88 x 32 mm
DIN mount

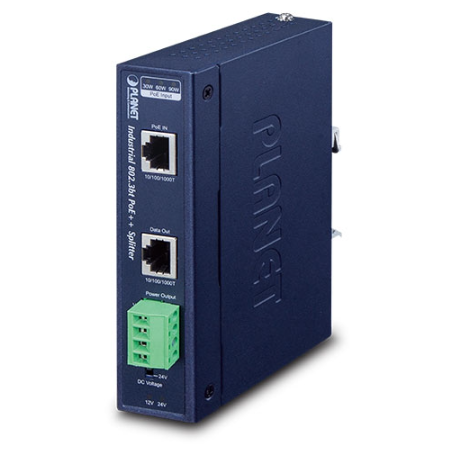

PoE++ splitter - separate DC and Data
Data without PoE to equipment
DC voltage output to non-PoE device
Max. 70 Watt
Data is 10/100/1000Mbit/s
PoE 802.3at/bt
End-span + Mid-span
End-span or Mid-span
2 x RJ45 interfaces
1 x RJ45 port Data + Power input
1 x RJ45 port Data output
2 x DC output (4-pin terminal block)
DC output 12VDC or 24VDC w/DIP switch
Size: 135 x 88 x 32 mm
DIN-mount
Weight: 445g
4 x 10/100/1G/2.5G/5GBASE-T Gbit RJ45 data input
4 x 10/100/1G/2.5G/5GBASE-T Gbit RJ45 data + PoE output
100~240VAC, 3.33Amp PSU with DC 52V~54V power output
Complies with 802.3bt PoE Plus Plus end-span and mid-span PSE
Backward compatible with IEEE 802.3at PoE Plus end-span/mid-span PSE
Up to 4 IEEE 802.3at/IEEE 802.3bt PoE devices powered
4 x PoE ports with 90-watt 802.3bt PoE++ type 4 PSE or 95-watt PoH PoE injector function
4 x PoE ports support 802.3at end-span/mid-span PoE+ 36-watt injector function
DIP switch for 802.3bt, PoH and Force mode selection
Auto detects if devices can be PoE powered (PD)
Circuit protection prevents power interference between ports
Forwards both Ethernet data and PoE power to remote device over a 100-meter distance
EEE 802.3 Ethernet, IEEE 802.3u Fast Ethernet., IEEE 802.3ab Gigabit Ethernet
IEEE 802.3bz 2.5G/5GBASE-T, IEEE 802.3af Power over Ethernet, IEEE 802.3at Power over Ethernet Plus
IEEE 802.3bt Power over Ethernet Plus Plus
Dimensions: 94 x 70.3 x 39.2 mm
Weight: 275g
Enclosure: Metal case

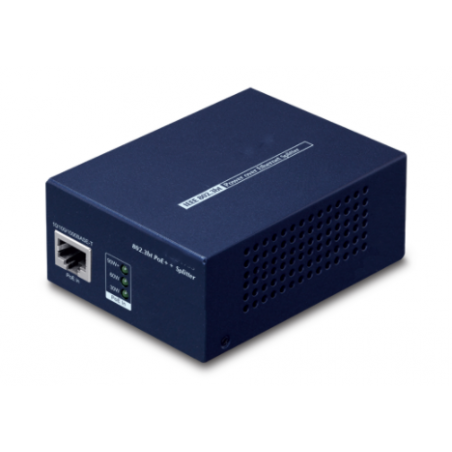

Gigabit PoE splitter for indoor installation
PoE++ (60W) splitter with optional DC output for non-PoE equipment
DC output: 12VDC/5A or 19VDC/3.2A or 24VDC/2.5A
1 x RJ45 port for PoE++ in from switch or PoE Injector
1 x RJ45 port (data) for non-PoE equipment
1 x DC Jack connector (5.5/2.5mm) for equipment
PoE standard: IEEE 802.3at/bt (PoE++)
IEEE 802.3at (PoE+ Mid-span)
IEEE 802-3bt (PoE++ PoH HDBaseT) - type 4
Operating temperature: 0 - +50°C
Wall bracket
Additional DIN brackets
Dimensions: 94 x 70 x 39 mm
Weight: 265g

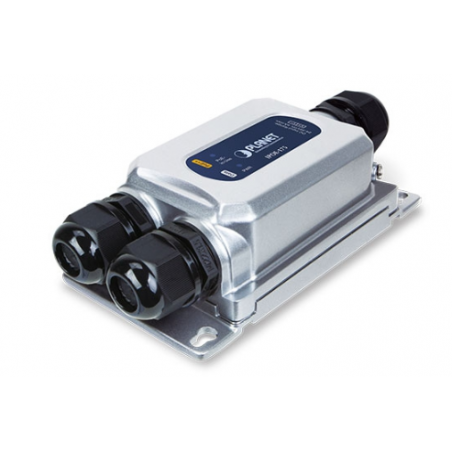

IP67 and IK10 Gbit PoE injector for outdoor mounting
PoE++ (60W) injector for PoE equipment
1 x RJ45 port for PoE++ out Data+PoE
1 x RJ45 port Data in
1 x Phoenix connector for the input voltage
DC24V 72W input
DC36V 71W input
DC54V 66W input
PoE standard: IEEE 802.3at/bt (PoE++)
PoE out Mid-span / End-span
Operating temperature: -40 - +75°C
Wall bracket
Dimensions: 170 x 73 x 44 mm
Weight: 425
2 Ports Poe Injector provides 2 x 36Watt for PD equipment
10/100/1000 Mbit
pin 4/5 (+), pin 7/8 (-)
4 x RJ45 (2 with data and 2 with data + PoE for equipment)
supply voltage: 12 - 56VDC
Power Budget is 60 - 72 Watt
Dim: 105 x 70 x 30 watts
Weight: 280g
Operating temperature: -40 - + 75 ° C
DIN mounting
POE power supply via Ethernet cable, up to 30 watt
LAN without PoE in, gives LAN with PoE out
Poe +, 56VDC / 30W
10/100/1000Mbit network.
Power supplies from 12 -48VDC / 32W Max
Redundant Power Input via Terminal Block
Power supply not included
Dim: 135 x 87 x 32 mm
Operating temperature: -40 ~ +75°C

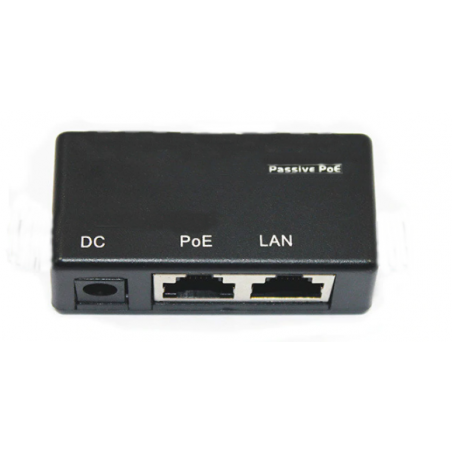

Passive PoE / POC injector for all voltages
Max. Power is 1amp
Voltage up to 48VDC
for UTP and STP Patch Cables
PoE Out: + on Pin 4, 5. - On Pin 7, 8
100Mbit Pin 1, 2, 3, 6
Plastic cabinet
Dim: 75 x 28 x 22 mm
Waterproof Outdoor PoE+ Injector 30Watt
1 x RJ45 Data
1 x RJ45 Data and PoE+
1 x 2-pin DC Phoenix connectors
IK10 Vandal safe
Supply voltage: 24 - 56VDC
POE Standard: IEEE 802.3 at / af
End-Span
Pin: (+ 1.2) (- 3.6)
Operating temperature: -40 - +75°C
wall mounting
Size: 170 x 73 x 44 mm
Weight: 340g
PoE+ Injector via Ethernet cable, 30Watt
Anit interference protected
OVERLOAD and monitor protected
Network: 10/100 / 1000Mbps
RJ45 Pin Assignment: 1/2 (-), 3/6 (+)
Power Supply: 100 - 240Vac
For harsh industrial and outdoor environments.
Voltage over Ethernet - PoE - no external voltage source
Extend a PoE voltage and data signal up to 100m
PoE output power: up to 22Watt
Over a single CAT 6 cable (STP cables are recommended).
Cascade: Maximum 4 ETH-BOOST-POE-1G-U units in extension
Extends the distance up to 500m
IP66
TILBEHØR: KØLER/ FAN TIL ETH-POE24x POE INJECTOR
4 port PoE pass through - 10/100/1000Mbit
1 x RJ45 PoE in (data + PoE++) - 95 Watt
Mid-span and End-span
4 x RJ45 PoE out (data + PoE+) - 30 Watt
PoE out pin: +1/2, -3/6
PoE output power, total is max. 75 Watt
PoE input voltage 50 - 57VDC
Temperature: -40 - +75°C
Dimensions: 135 x 88 x 32 mm
