Huge selection of waterproof screens. DANBIT offers a large and deep range of waterproof screens, down to the size of 8 ".
Among other things, DANBIT also offers screens approved for maritime use. The screens vary from resistive RS232 to USB touch, as well as different formats. See the various options below.
10.4 "Marine TFT LCD MONITOR
Full IP67
Resolution 1024 x 768 - 4: 3 Format
1 x VGA
1 x DC Power
1 x S-Video
1 x Composite
1 x J2: Signal Pins (D38999 / 24WD35PN) For military connector
5-wire resistive touch screen
Power input: 12-36V DC Input
For VESA and panel mounting
Industrial grade Display in steel cabinet with IP67 connections

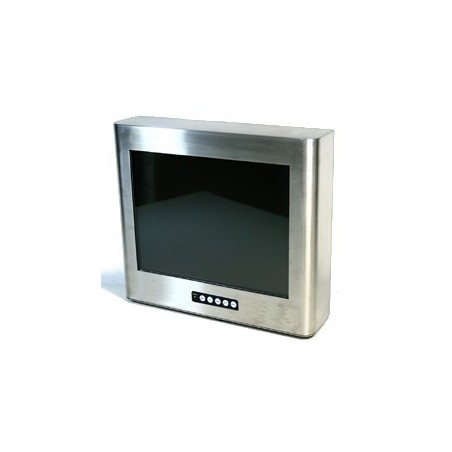

15" TFT LCD screen 1024 X 768 - 4:3 format
300 nits and with vandal-proof glass
Housing: Robust IP65 sealed in stainless steel
For VESA 75 wall mounting
Operating temperature: 0° to 50°
IP65 sealed on all 6 sides.
All I/O ports and connectors (protective caps) are military IP-67 waterproof
USB Resistive Touch
9 - 36VDC supply voltage
Optional extra purchase: 1000nits high bright, -30°C to +65°C, Composite
12.1 "IP65 dense LCD display for panel mounting
800 x 600 - 4: 3
LED back light 1000nits
Transflective LCD display provides high brightness in the sun
VGA + composite (BNC / RCA) video input
12VDC power supply
Dimensions: 380 x 310 x 61mm (cut out: 327 x 263mm)
Weight: 3.5kg
21.5 "Wide LCD Monitor 16: 9
1 x VGA
250 Nits
IP65 Front
1920 x 1080
Dimensions: 534 x 349 x 66 mm
230vac / 12vdc 2a PSU included.
Vesa75 / 100 and Panel Mount
Option: Resistive Touch, SAW Touch
Option: 1 x VGA, 1 x HDMI
8.4" TFT screen in 4:3 format
for industrial purposes - Very robust
mounting in panel, on wall or in rack cabinets
VESA 75 mounting holes
Dim - Outline: 264 x 189 x 56 mm
Dim - Cutout: 220 x 160 mm
Cabinet: Metal
12VDC
Stock sale: 1 pc.
New version - ask for price
8.4" TFT screen with touch
Touch
external dimensions 26.5 x 19 cm
Cutout measures 22.2x16.2
12” LCD screen
IP65 sealed NEMA 4/12 front
DVI, HDMI, VGA
Resolution 1024 x 768 - 4:3
Touchscreen RS232 or USB interface (standard with USB)
Vesa 100 mount, Panel mounting.
OSD
12/24Vdc standard screw terminal
Optional! Rack mounting
Optional! 230 vac
19 "TFT Screen
Touch
Vulnerable
IP65 Closed
Stainless Steel Cabinet
VESA Mount
Waterproof Cables
Waterproof Plug Connector at the Base of the Cabinet.
12VDC, AC Adapter
19 "TFT monitor, chemical resistant steel cabinet
Touch display (RS232)
1280 x 1024 - 5: 4 format
Brightness 400 cd / m²
VGA (DB15HD connector)
480x400x61 mm (HXWXD)
230V AC / 12V DC / 4.16A PSU included
VGA and DB9 cable included
17 "TFT monitor - stainless steel cabinet
full IP67
Touch
1280 x 1024 - 5:4 format
Brightness 300 cd/m²
VGA, DB15HD
VESA75
450 x 378 x 62 mm (H x W x D)
Weight: 7.5 kg
Supply voltage: 12VDC
230V AC / 12V DC / 1.5A PSU incl.
Special cables with IP67 sealed connectors are included.
17 "LCD monitor
Resolution: 1280 x 1024 to 4: 3 format
IP65 front
250 nits
USB / RS232 resistive Touch
1 x DVI-D, 1 x VGA, 1 x HDMI
1 x USB to the touch
Panel/wall/rack mounting or desktop
Dimensions: 58 x 410.31 x 338.31 mm
AC 230V
Weight: 3.8 kg without packing / 6,56kg packed
17" LCD Monitor
Resolution: 1280 x 1024
4:3 Format
IP65-Front
250 Nits
USB Resistive Touch
1 x DP
1 X VGA
1 x HDMI
1 x USB to Touch
Panel / Wall / Rack / Desktop Mounting (Accessories)
Dimensions: 410 x 58 x 338.3 mm
Supply voltage: 24VDC or 230VAC (option)
Weight: 4.45kg without packaging, 6.71kg packed
15" LCD Monitor
Resolution: 1024 x 768
4:3 Format
IP65-Front
420 Nits
USB RESISTIVE TOUCH
1 x DP
1 x VGA
1 x HDMI
1 x USB to Touch
Panel / Wall / Rack / Desktop Mounting (Accessories)
Dimensions: 377.9 x 309.3 x 58mm
Supply voltage: 24VDC or 230VAC (option)
Weight: 3.7kg
Operating temperature: 0 ~ + 50 ° C
12” LCD screen - transflective, readable in sunlight
IP65 sealed front
VGA
Panel mounting and VESA75/100
XGA: 1024 x 768 - 4:3
touch resistive (RS232)
110-230VAC/12VDC 2A PSU included.
Dimensions: 274 x 324 x 45mm
10.1" TFT 1280x800 (16:10)
Front panel IP66 Standard / IP69K Option
Aluminum cabinet
VGA, DVI, HDMI and DP Input
Supply voltage: DC 9 ~ 36V
Contrast : 800:1
Brightness: 350 Nits Standard / 1000 Nits Option
Touch Via USB: Projected Capacitive Standard / Resistive Option / No Touch Option
Touch Via RS232: Option
VESA 100 and Panel Mount
Dimensions: 285 x 189 x 48.9mm
Weight: 1.9 kg
Operating temperature: 0 ~ +50°C Standard / -20 ~ +60°C Option
