DANBIT has a large selection of screens and sells everything from 6 "to large screens for office use, medical, industrial use, etc.
General info about 4: 3 or 5: 4 screen format:
Often you want a 4: 3 TFT led screen for older solutions, where the graphics are not for wide format.
But if you want a resolution that is 1280 x 1024 then it is a 5: 4 format screen you need.
DANBIT has a large selection of screens and sells everything from 6 "to large screens for office use, medical, industrial use, etc.
10.4" LCD display module
Resolution up to 1024 x 768 XGA 4:3
400 nits brightness
Resistive 5-wire touch screen
Flat surface for easy cleaning
IP65 dust/waterproof front
Rugged aluminum die-cast frame
Designed for industrial use
Certified: UL, cUL, CB, IEC, EN 62368-1
Dimensions: 295 x 227.3 x 56.2 mm
Operating Temp: -20°C to 70°C
10.4" TFT-LCD SVGA display
Resolution :1024 x 768, Brightness 470 cd/m²
Intel Alder Lake-N processors I3, Intel® Core™ i3-N305 8 Cores Up to 3.80 GHz, TDP 15W
Resistive 5-wire (on request Capacitive touch)
DDR5 SO-DIMM, max. 16 GB memory
Storage: 1x 2.5", 1x M.2
1x M.2 E for WiFi/Bluetooth
1x M.2 B for 5G/GNSS/SATA
Ethernet: 2x 2.5G
1x USB 2.0
3x USB 3.2
1x DisplayPort, 1x VGA
8xDIO, (4in/4out), 10-Pin Terminal
IP65 front panel for protection
Material aluminum
Dimension: 295 x 227.3 x 56.2 mm
Panel/VESA/Rack mount
Wide voltage 9 to 48VDC, comsuption 4.99W (Typ.), remote power ON/OFF
-20°C to 70°C (requires special components SSD/RAM)
EMC Emission / Immunity Standard for Industrial Environment : EN61000-6-4, EN61000-6-2
Steeel VESA mount
VESA: 75 x 75 mm, 100 x 100 mm (on special orders 200 x 200mm)
Material SUS316 Stainless Steel
Tilt: 15 degrees Up and Down, Left and Right
Weight Capacity 50 Kgs
Suitable for Outdoor Mounting
Product Dimensions 140 (W) x 143.4 (H) x 101.5 (D) mm
Product Weight 1.5 Kgs
27" TFT
1920x1080@60Hz FULL HD
16:9
2500 Nits
Optional PCAP Touch
Optical Bonded - very important feature
No condensation behind the front glass
Improved reliability and performance
6-sided fully IP66 sealed
VGA and HDMI inputs
UV protection
Stainless SS304
VESA Mount 200x200/400x400mm
Input voltage DC: 12V Adapter included
Optional purchase options: DC9-36V / AC110-230V)
CE, ROHS
27" TFT
1920x1080@60Hz FULL HD
16:9
2000 Nits
Optional PCAP Touch
Optical Bonded - very important feature
No condensation behind the front glass
Improved reliability and performance
6-sided fully IP66 sealed
VGA and HDMI inputs
UV protection
Stainless SS304
VESA Mount 200x200/400x400mm
Input voltage DC: 12V Adapter included
Optional: DC9-36V / AC110-230V)
CE, ROHS
27" TFT
1920x1080@60Hz FULL HD
16:9
1500 Nits
Optional PCAP Touch
Optical Bonded - very important feature
No condensation behind the front glass
Improved reliability and performance
6-sided fully IP66 sealed
VGA and HDMI inputs
UV protection
Stainless SS304
VESA Mount 200x200/400x400mm
Input voltage DC: 12V Adapter included
Optional purchase options: DC9-36V / AC110-230V)
CE, ROHS
32" TFT
1920x1080@60Hz FULL HD
16:9
2500 Nits
Optional PCAP Touch
Optical Bonded - very important feature
No condensation behind the front glass
Improved reliability and performance
6-sided fully IP66 sealed
VGA and HDMI inputs
UV protection
Stainless SS304
VESA Mount 200x200/400x400mm
Input voltage DC: 12V Adapter included
Optional purchase options: DC9-36V / AC110-230V)
CE, ROHS
32" TFT
1920x1080@60Hz FULL HD
16:9
2000 Nits
Optional PCAP Touch
Optical Bonded - very important feature
No condensation behind the front glass
Improved reliability and performance
6-sided fully IP66 sealed
VGA and HDMI inputs
UV protection
Stainless SS304
VESA Mount 200x200/400x400mm
Input voltage DC: 12V Adapter included
Optional purchase options: DC9-36V / AC110-230V)
CE, ROHS
32" TFT
1920x1080@60Hz FULL HD
16:9
1500 Nits
Optional PCAP Touch
Optical Bonded - very important feature
No condensation behind the front glass
Improved reliability and performance
6-sided fully IP66 sealed
VGA and HDMI inputs
UV protection
Stainless SS304
VESA Mount 200x200/400x400mm
Input voltage DC: 12V Adapter included
Optional purchase options: DC9-36V / AC110-230V)
CE, ROHS
15" TFT 1024x768@60Hz
4:3 aspect ratio
PCAP Touch (optional Resistive touch), USB
700 nits
Robust, reliable and good performance
6-sided IP66 tight
VGA and HDMI inputs
Optical bonding (Optical Bonding), UV protection
SS 316 steel housing (suitable for food industry)
VESA Mount 100 mm
Input voltage:9 - 36VDC
12VDC power supply included
Optional 110-230VAC built-in power supply
Cables with waterproof connectors included
Temperature: -10 - +60°C
27" Full HD industrial touch monitor with 1000 nits brightness, IP65 front protection, 10-point capacitive touch, and robust metal housing. Ideal for outdoor kiosks, marine, manufacturing, and control room applications.
Modularize mechanical design provides flexible product configuration and easy maintenance
Touch screen for interactive application
Available with auto-brightness sensor offers application in day and night
VGA connector (on request AV,SV,AV-Looping)
Complete custom design/solution for OEM customers
Glass Surface
Black Anti-Glare, low reflection coating
Aspect Ratio4 : 3 Size17"
Active Area337.92(H) x 270.34(V) mm
Pixel Pitch0.264(H) x 0.264(V) mm
Native Resolution1280x1024
Colors16.7 M
Bright.(typ)1000Contrast800 : 1Response Time≤ 5 ms
Viewing Angle (H / V)170 / 160
LED backlight, Long life, 35,000 hrs (typ)
0°C ~ 50°C (32°F ~ 122°F) , 10% ~ 90% (no condensation)
Internal power supply with universal / Auto-Sensing, AC90 to 260V, 50/60 Hz
8.4" TFT display
With optical bonding.
4:3
VGA, DVI-D, HDMI
Resolution: 1024x768
Contrast 1400:1
High brightness: 1600 cd/m² nits Sunlight readable
Wide viewing angle: 176°(H)/176°(V)
LED backlight
75 x 75 mm VESA
204.7 x 154.2 x 46.3 mm
Temperature range (-30 ˚C ~ 80 ˚C)
Backlight MTBF: 100,000 hours
DC 12V
10.1” LCD with 1920x1200 resolution
380 Nits
Capacitive touch function for precision
16:10 aspect ratio for optimal viewing
170° viewing angle for better accessibility
Lifetime of LED panel: 50,000 hours
Support for HDMI, VGA and USB Type-C inputs
Built-in speakers with 2-channel 48kHz 24-bit audio
Operating temperature: -20°C to 60°C
IP65 frame for extra protection (optional)
Weighs only 820g for easy installation
Supply voltage: 12 - 24VDC
Power consumption: <19W at 12V operation
VESA 75 mm
Dimensions: 251 x 170 x 33 mm
NOTE: Optional desktop stand
7" TFT Touch Screen Monitor
Powered via USB
250 NITS brightness
Resolution: 1280x800
10-point capacitive touchscreen
IP65 protection against water and dust
Inputs: HDMI, VGA, USB-C
Viewing angle: 170° H/V
Operating temperature: -20°C to 60°C
Storage temperature: -30°C to 80°C
VESA mount 75 mm
184.5mm × 118.8mm × 32mm
Supply via USB cable (USB Powered)
17” SXGA color TFT LCD monitor
OSD on the backside
Heavy-duty steel chassis
NEMA 4/IP65-compliant aluminum front panel
Long backlight lifetime of 50,000 hours
Panel or VESA 100 mount
DVI, composite video and S-video input
Dimensions(WxHxD): 439 x 64.7 x 348mm
Operating temperature: 0 to 45℃ (32 to 113℉)
Power Input: 100~240V AC
Resistive touch screen USB for PenMount 9036 Windows Universal 2000 / XP / 2003 / Vista / 2008 / 7 / 8 / 10 Driver
CE, FCC Class A
15.6 TFT LCD with LED Backlight
High brightness 1200 nits, sunlight readable
Resolution: 1920x1080, aspect ratio 16:9 FHD resolution
MTBF: 100,000 hours
Viewing angle: 170° horizontal and vertical
Color contrast: 1200:1
Response time: 25ms
Supports HDMI, DVI-I and DP video interface
Mounting: VESA 75x75
Color saturation: 82% NTSC
Temperature range: -30°C to 70°C
Low power consumption, DC 12V input
21.5 Inch Industrial LCD Monitor
1000 Nits Brightness for Sunlight Readability
Full IP67 Waterproof
Operating Temperature Range: -20 to 70°C
Anti-glare Tempered Glass Surface Treatment
UV-resistance material
HDMI, VGA
Power Supply: 9-36V DC
VESA Mounting 100x100, 75x75
7” LCD with 10-point capacitive touch
High brightness of 1000 nits, suitable for outdoor use
Resolution of 800x480, with a 16:10 aspect ratio and 1000:1 contrast ratio
HDMI, VGA, AV
USB for touch functionality
IP64-rated front panel, ensuring protection against dust and water sprays.
Aluminum housing for enhanced durability
Suitable for demanding industrial applications like smart lockers, medical, and production environments
Operates in temperatures from -20°C to 60°C, with storage temperatures ranging from -30°C to 70°C
Low power consumption (≤8.5W at 12V
Wide input voltage range (12-24V)
17" TFT
1280x1024
4:3
Brightnes 250
VGA input
Touch PCT
Panel Mount
Vesa Mount
Available with auto-brightness sensor offers application in day and night
Complete custom design/solution for OEM customers.
0°C ~ 50°C (32°F ~ 122°F)
AC90 to 260V 50/60Hz Auto-sensing
23.8’ PCAP Touch Monitor
Size: 23.8”
Panel Mount or Vesa mount
Resolution: 1920x1080
Brightness: 350nits
Connectors: VGA+HDMI
Touch: PCAP10-Point
IP65Front
(Opt: Optical Bonding)
Enclosure: Stainless bezel + Metal Backside
PSU: DC12V/5A
12.1" PCAP Touch Panel Mount Display
VGA + HDMI input
P-Cap Touch, I/O: USB
Operating temperature: -10~60℃ (-25~60℃ with heater solution)
Brightness: 1000 nits
Panel Mount
IP65 front
15.6" TFT WXGA 16:9 LCD
2 touch models Touch Resistive 5-wire / Projected Capacitive Standard is Resistive Touch
50,000 hrs LED Backlight Life
Resolution up to 1366 x 768 (WXGA)
400 nits Brightness
Designed with Aluminum Die-cast Front Frame
IP 65 Compliant Front Panel
Convertible Display System (CDS) Supported
420 x 254 x 66.2 mm (W x D x H)
Safety: UL, cUL, CB, IEC, EN 62368-1
Screen Size 18.5 inches
Resolution 1920x1080
Panel Brightness 1000nits
PCAP touch via USB
1 x VGA
1 x HDMI
12V DC input
Operating Temperature 0°C to 50°C
Resistive Touch Screen (Optional)
Protection Glass w/o Touch Function (Optional)
Optical bonding (Optional)
Screen Size 15,6"
Resolution 1920x1080
Panel Brightness 1000nits
PCAP touch via USB
1 x VGA
1 x HDMI (Optional)
1 x DVI (Optional)
12V DC input
Operating Temperature -10°C to 60°C
Optical bonding (Optional)
26" DNVGL-CG-0339, IACS-E10, IEC60945 4th marine monitor
350 nits
PCAP touch
Fanless
IP66 on the front
Resolution: 1920 x 1200 - 16:10 format
Active display area: 550 x 344 mm
1 x VGA
1 x HDMI 1.4
1 x DVI-D
Power supply: Terminal block 24VDC
DC input: 9 - 36VDC / 55W typical
Mounting: Panel (Flush) mount with IP66*, VESA100, Bracket mounting
Vibration: 0.7g@DNVGL CG-0339 (Class A)
Shock: 15G, 11ms duration
Optional: Remote control via RS232 D-SUB 9P
DIM: Day Mode, Dusk Mode, Night Mode
Dimensions: 621 x 433 x 86 mm
Cut out dimensions: 596 x 406 mm
Weight: 12.8 kg
21.5", FULL HD 1920 x 1080 16.7m Colors
Brightness 250nits (Possibility: 1000nits)
IP69K
VGA, (Possibility HDMI)
USB for toutch screen control
PCAP Projected capacitive multitouch screen, touch with flat design
A true flat, easy to clean front surface with edgetoedge design
Full IP69K waterproof enclosure
SUS 316/ AISI 316 stainless steel for food and chemical industries
Waterproof sealed conduit pipe for cable protection
Support VESA / YOKE mount
Optical bonding (Possibility)
Operation temperature 0°C to 45°C
541 x 337 x 56.2 mm
12V DC
10.1" 16:10 Highbright FHD monitor
4k@30Hz
1080p@60Hz
1500 nits
10-point PCAP Touch
1920x1200
Auto dimmer
HDMI or VGA
USB-C both Video and touch
USB cable with screw lock
3.5mm audio output
Supply voltage: 12 -24VDC
VESA 75
Temperature: -20 - +60°C
Dimensions: 251 x 170 x 33
Weight: 820g
21.5” TFT-LCD
1920 x 1080 Resolution
Projected Capacitive Touch via USB
VGA Video Output
Total IP66 Grade with M12 Waterproof Connector
Power Input 9-36VDC
Panel Mount & VESA Mount
316 Stainless Steel
ATEX/IECEx Zone2, Zone22 and C1D2/C2D2/C3 Certified
17" 5:4 1280x1024
400 cd/m2
10 point PCAP touch via USB
IP66 front protection
HDMI/VGA/DVI video input
Power Input 12~24VDC
Operating Temperature -20~70°C
Panel/VESA mounting
15" TFT 1024x768@60Hz
4:3 - XGA
PCAP Touch (optional Resistive touch), USB
1000 nits
Robust, reliable and good performance
6-sided IP66 tight
VGA and HDMI inputs
Optical bonding (Optical Bonding), UV protection
SS 304 steel cabinet
VESA Mount 100 mm
Input voltage: 9 - 36VDC
Optional 110-230VAC built-in power supply
Cables with waterproof connectors included
Temperature: -10 - +60°C
32" TFT CCTV LCD MONITOR
High resolution 1920x1080
Vesa mount 200x200mm
Professional design for CCTV 24/7 operation
7 International Language OSD Menu
HDMI input (DVI compatibel)
PIP/PBP function
BNC video looping out
3DNR (3D noise reduction) function
Anti Burn-in function prevent LCD panel from Bunr-In
remote control is not included need to be ordered seperatly
Support USB 2.0 / SD / MMC / MS Card
Built-in 16MB flash
Double stereo speakers
Automatic playback
Picture: JPG, JPEG, GIF, BMP, PNG
Music: MP3, MP2, MP1, WMA, OGG, APE, FLAC, AC3, RA, AAC
Movie : RM, RMVB, MKV, MOV, M4V, MPG, FLV, PMP, AVI, VOB, DAT, MP4
DC12v, 2A netadapter 100~230Vac is included
194mmx164mmx26mm (WxHxD)
65" outdoor solution
Can be delivered as
Monitor: with 2xHDMI, VGA input
Digital signage: 2xUSB2.0, 1x HDMI (input), 1x SD card slot
Android: 2xUSB2.0, 1xHDMI output, 1xRJ45, 1x Wifi, (Optional 4G LTE), Rockchip RK 3288, Arm 1.8Ghz,2GB RAM, 8GB SSD, Android 7.1
Windows: 2x USB2.0, 2x USB3.0, 1xRJ45, 1xWifi, Intel i5 Gen. 10 2.9Ghz, Chipset H510, 8GB RAM, 120GB SSD, win10/Linux
Broghtness 3000~4000cd/m
Support Portrait & Landscape display mode
IP65
-20~50℃
Mounting Type: Wall Mount
Compatible Devices: Monitors, Televisions
Movement Type: Full Motion. Rotate, Swivel, Tilt, Articulating.
Item Weight: 3.6 pounds (~1,6kg)
Official TV/Monitor compatibility size: 17-27 Inches (May fit other sizes, if holes align and weight limit is not exceeded!)
Fitting standard: VESA 75x75mm/100x100mm hole spacing
Max load: 2-7kg (4.4lbs -15.4lbs)
Wall to Screen stretch distance: min 85mm, max 385mm
Swivel: 180° each direction left/right
Tilt: 50° down / 35° up
Rotation: 360°
Lifting distance: 0-155mm
Material: Stainless Steel
Color: Black
Can be made as a monitor or panel PC, contact us regarding opportunities.
Projected capacitive touch
HDMI, Displayport, VGA input
Dimension (W x D x H) 550 x 343.7 x 63.3
Weight 7.16 kg
One piece and slim frame design
Mounting flat / Standard / VESA / Rack Mount
Pre-installed mounting bracket with adjustable design (supports 11 different adjustment steps)
Front panel IP65 compliant * According to IEC60529
Operating temperature 0°C to 70°C
Power input 9~48VDC
EMC CE, UKCA, FCC, ICES-003 Class A
UL, cUL 62368-1 (pending)
32" TFT 1920x1080@60Hz FULL HD
PCAP Touch
16:9
1000 Nits
Optical Bonded - very important feature
No condensation behind the front glass
Improved reliability and performance
6-sided fully IP66 sealed
VGA and HDMI inputs
UV protection
Stainless
VESA Mount 200x200/400x400mm
Input voltage DC: 12V
Optional purchase options DC9 -36V / AC110-230V)
CE, ROHS
15" 1024x768
4:3
Resistive Touch
Contrast 1500:1
High brightness: 300cd/m2. (1000nits model available)
HDMI, VGA, DVI, A/V inputs (BNC)
Viewing angle: 170/170 (H/V)
Metal housing
VESA & rear mounting methods
12VDC <16Watt
-20℃~60℃
Dimensions: 402 x 289 x 45 normal
Dimensions: 400 x 279 x 44 mm (open frame)
12 "TFT 4: 3 LCD Resistive Touch
50,000 Hrs LED Backlight Lite
Resolution Up to 1024 x 768
1x VGA, 1X DVI-D, 1x DisplayPort
500 nits Brightness
Designed with aluminum Die-cast Front Frame
IP65 Compatible front panel
Option: Projected Capacitive Touch
9 ~ 48VDC Via 3-pin Terminal Block
Panel, Vesa Mount
21.5" TFT 16:9
Metal chassis
Control panel is behind the front
IP65 only on the front
Resolution: 1920x1080
10-point PCAP Touch
Nits 1000cd/m² high brightness
Supports multiple video input interfaces: HDMI 1.4b, VGA, AV
2 speakers
Supports HDMI 4K30p, 2160p 24/25/30, 1080p 24/25/30/50/60 Hz
Supports Windows XP/7/8/8.1/10, Android, Linux and MAC OS (touch driver)
Front frame dimensions: 556 x 344.5 mm
Depth: 48.2 mm
Cutout dimensions: 540 x 330 mm
Mounting clip included
12-24VDC (≤37W (15V)) - PSU included
CANNOT STAND DIRECT SUNSHINE! (requires optical bonding)
12.1” Stainless Steel Display
standard 450/500 nits OPTION: 1000nits
Oprtion: Optical Bonding for UV protection
True Flat Front Bezel Design and Grade 304 Stainless Steel Enclosure
(Grade 316 for Option)
IP66/IP69K Rated with M12 Connectors
Option! Resistive Touch, Projected Capacitive Touch, and Glass
Touch Interface USB
Touch on/off Button on the Side Edge for Hygienic Cleaning
VESA mount 75x75, OPTION: Yoke mount
0~50°C / -20~60°C (option)
Power input 9~36Vdc (1xM12 3-pin Connector) 8W/12W (high nits display)
Size 335x365x53mm
10.1 "TFT panel
Controls Module
VGA, HDMI
50pin TTL interface
AV Interface
Remote control, push buttons and Controls Cable
DC5-12V 5.5mm Jack Connection
Resolution 1024x600
235 (W) x 132 (H) mm
15" TFT
VGA, DVI-D, HDMI
high brightness 500 nits
LED Backlight
Low power consumption
Wide operating temperature -20˚C~ 70˚C
BL MTBF: 30,000 hours
326.50X253.50X9.8mm
12VDC, 9.6Watt
17" TFT
Sunlight Readable
LED Backlight
SXGA(1280x1024) High Definition
High Shock Vibration Resistance
Low Power Consumption
High Uniformity
Low EMI Noise
Wide Dimming
358.5x296.5x20.5mm
10.1" 16:9 Ratio
350nits
10-point Capacitive Touch via USB
1280 x 800 Native Resolution
1000:1 Contrast with 170 degree perspective
HDMI Full- HD 50 / 60Hz Signal Input
input voltage from 7 to 24VDC
VESA 75 Mounting
Operating temperature: 0 to +50 ° C
Dimesnions: 250 × 170 × 32.3 mm
12.1" 4:3 ratio
800nits High Brightness
10-point Capacitive touch via USB
1024 x 768 Native Resolution
900:1 Contrast with 170 degree viewing angles
HDMI 4K (30Hz) signal input
Input voltage from 12 to 24VDC
Dimensions: 285 x 224 x 34 mm
VESA 75 Mounting
Operating temperature: -30 to 85 °C

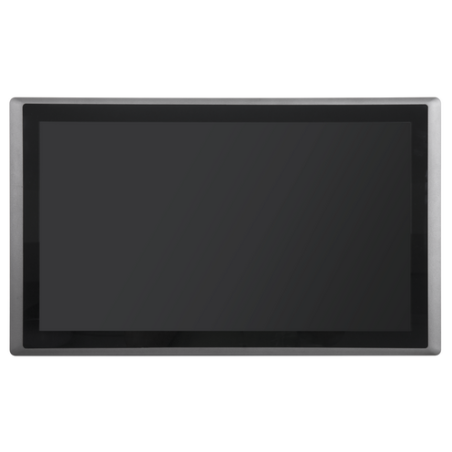

21.5 "TFT Full HD 16: 9 LCD
Capacitive Touch
16: 9
50,000 HRS LED Backlight Lite
1x VGA, 1X DVI-D, 1x DisplayPort
Resolution Up to 1920 x 1080 (Full HD)
300 Nits Brightness
Aluminum Front
IP65 Front
9 ~ 48vdc Via 3-pin Terminal Block
Panel, VESA Montage
15 "TFT 4: 3 LCD Resistive Touch
50,000 Hrs LED Backlight Lite
Resolution Up to 1024 x 768
1x VGA, 1X DVI-D, 1x DisplayPort
350 nits Brightness
Designed with aluminum Die-cast Front Frame
IP65 Compatible front panel
Option: Projected Capacitive Touch
9 ~ 48VDC Via 3-pin Terminal Block
Panel, Vesa Mount
17 "TFT SXGA 5: 4 LCD Capacitive Touch
50,000 Hrs LED Backlight Lite
Resolution Up to 1280 x 1024 (SXGA)
1x VGA, 1X DVI-D, 1x DisplayPort
350 NITs Brightness
Aluminum Front
IP65 Compatible front panel
9 ~ 48VDC via 3-pin Terminal Block
Panel, Vesa Mount
19 "TFT SXGA 5: 4 LCD Capacitive Touch
50,000 HRS LED Backlight Lite
Resolution Up to 1280 x 1024 (SXGA)
1x VGA, 1X DVI-D, 1x DisplayPort
350 NITs Brightness
Aluminum Front
IP65 Compatible front
9 ~ 48VDC Via 3-pin terminal Block
Panel and Vesa Mount
